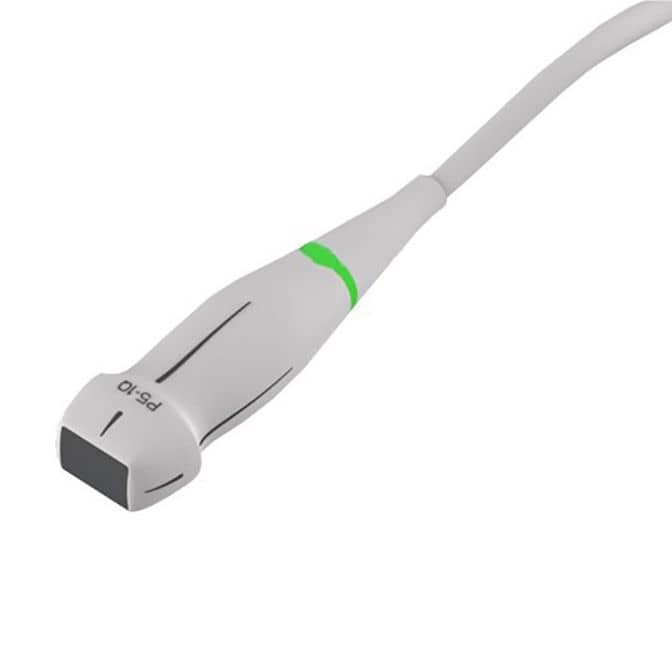

Edan Acclarix P5-1Q Phased Array Transducer

The Edan Acclarix P5-1Q Phased Array Transducer is engineered for seamless integration across the Acclarix line, offering flexibility for both current and discontinued models.

It is fully compatible with the current generation of Edan Acclarix Ultrasound Systems:

• AX2
• AX3
• LX9

Additionally, the transducer maintains backward compatibility with the following discontinued models:

• AX4
• AX7

This broad compatibility ensures the P5-1Q is a versatile component for facilities utilizing various Acclarix platforms.

The Edan Acclarix P5-1Q Phased Array Transducer is engineered for high-fidelity imaging across several essential and critical diagnostic areas, showcasing its specialized versatility. Its phased array technology and Continuous Wave Doppler (CWD) capability make it ideal for:

• Adult Cardiac Screening: Detailed assessments for adult heart conditions.
• Pediatric Cardiac Screening: Crucial diagnostic imaging for pediatric cardiology.
• Abdominal Imaging: Comprehensive viewing and analysis of internal abdominal structures.
• Adult Cephalic Screening: Specialized imaging utilized for the adult head and brain.

Yes, the Edan Acclarix P5-1Q Phased Array Transducer includes Continuous Wave Doppler capability. This advanced technology allows for enhanced functional assessment, which is crucial for critical diagnostic imaging, especially in cardiac applications.

The Edan Acclarix P5-1Q Phased Array Transducer supports multiple selectable fundamental and harmonic frequencies for optimized image quality and versatility across diverse diagnostic applications. Its robust frequency selection allows for detailed functional analysis.

The specific frequency ranges supported are:

• 1–4.5 MHz (at -20 dB)
• 1–5 MHz (at -6 dB)

This transducer also supports an adjustable imaging depth range from 40 mm up to 300 mm, making it ideal for specialized applications such as Adult Cardiac, Pediatric Cardiac, Abdominal imaging, and Adult Cephalic screening.

The Edan Acclarix P5-1Q Phased Array Transducer provides an adjustable and extensive imaging depth range. The depth can be set from a minimum of 40 mm up to a maximum of 300 mm, offering flexibility for various diagnostic applications.

The Edan Acclarix P5-1Q Phased Array Transducer is constructed with 64 elements. This configuration ensures robust phased array performance suitable for critical diagnostic needs. The active transducer head has a width of 16 mm and is designed for applications including:

• Adult Cardiac screening
• Pediatric Cardiac screening
• Abdominal imaging
• Adult Cephalic screening

Yes, the Edan Acclarix P5-1Q Phased Array Transducer is equipped with advanced multi-frequency capabilities, enabling clinicians to optimize image quality and penetration based on specific clinical needs.

This functionality supports versatile imaging applications (including Adult Cardiac, Pediatric Cardiac, and Abdomen) by offering:

• Multiple Selectable Frequencies: Users can choose from various fundamental and harmonic frequencies to tailor imaging performance across different depths.
• Comprehensive Frequency Ranges: The probe supports frequency ranges of 1-4.5 MHz (at -20 dB) and 1-5 MHz (at -6 dB).

Yes, the Edan Acclarix P5-1Q Phased Array Transducer is specifically designed for high-performance diagnostic imaging, utilizing a 64-element phased array to facilitate deep penetration and detailed data acquisition.

It offers several advanced capabilities:

• Continuous Wave Doppler (CWD): Provides crucial functionality for detailed functional assessments, especially in cardiac studies.
• Versatile Application Support: This single transducer is suited for critical screening in four areas: Adult Cardiac, Pediatric Cardiac, Abdomen, and Adult Cephalic imaging.
• Optimized Image Quality: Features multi-frequency operation, allowing selection of fundamental and harmonic frequencies (ranging up to 5 MHz) to optimize image resolution across the full imaging depth of 40 mm to 300 mm.

Yes, the Edan Acclarix P5-1Q Phased Array Transducer is compatible with specialized accessories, often required for interventional procedures. The most commonly purchased accessory is the Edan Needle Guide Bracket BGK-008 for P5-1Q (Part #02.01.215468), which is used to enhance precision during specific medical applications.

Yes, the Edan Acclarix P5-1Q is a factory-new, high-performance phased array transducer engineered for precision. It supports versatile diagnostic imaging through several key technical features:

• Multi-Frequency Support: Offers multiple fundamental and harmonic frequencies to optimize image clarity for different patient profiles.
• Advanced Doppler: Includes continuous wave doppler functionality, which is essential for accurate blood flow assessment in cardiac procedures.
• Clinical Versatility: Specifically optimized for Adult Cardiac, Abdomen, Pediatric Cardiac, and Adult Cephalic applications.
