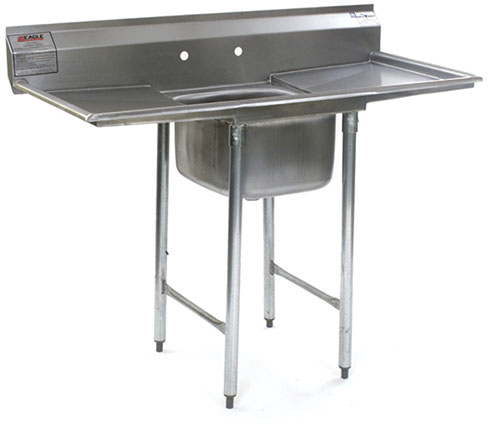

Eagle Group MHC 1-Compartment Sinks, 412 Series

Yes, the Eagle Group MHC 412 Series sink is built using heavy gauge Type 430 stainless steel throughout its main body, ensuring exceptional durability for demanding commercial and industrial environments. This material guarantees longevity and corrosion resistance.

This high-quality stainless steel is used consistently across all major top components:

• Sink Bowl and Top: Constructed from heavy gauge Type 430 stainless steel.
• Backsplash: Features a full-length 9 1/2” backsplash, also made of heavy gauge Type 430 stainless steel.
• Drainboards: Any optional integrated drainboards are similarly constructed and integrally welded.

Furthermore, structural integrity is provided by 1 5/8” diameter heavy-gauge galvanized tubing legs and a seamless design created through fuse-welding and planishing.

Yes, the standard sink bowl for the Eagle Group MHC 412 Series offers ample space for commercial use, measuring 20 inches long by 16 inches wide.

Constructed from heavy-gauge Type 430 stainless steel, this single-compartment unit is built for exceptional durability and corrosion resistance.

Key specifications related to the water capacity are:

• Operational Water Level: 10 1/2 inches
• Maximum Flood Level: 13 1/2 inches

Yes, the Eagle Group MHC 412 Series is built with a heavy-duty support structure specifically engineered for superior stability and demanding commercial environments.

Key stability features include:

• Seamless Construction: The entire sink, including the top, is fuse-welded and planished into a single, seamless unit, which maximizes structural integrity and hygiene.
• Robust Legs and Bracing: The sink is supported by 1 5/8” diameter heavy-gauge galvanized tubing legs. Stability is further enhanced by 1” diameter heavy-gauge galvanized tubing crossbracing running front-to-back.
• Reinforced Support: Stability is secured using plated 12-gauge gussets for reliable weight bearing.
• Adjustable Leveling: High-impact, corrosion-resistant, and fully adjustable bullet feet allow the unit to be securely leveled on uneven floors.

Yes, the sink includes a 9 1/2-inch high, full-length standard backsplash. This feature is designed for superior hygiene and simplified installation against walls, offering two key details:* A 1-inch upturn at the top edge.* A tile edge along the bottom for seamless integration against wall surfaces.

Yes, the Eagle Group MHC 412 Series sink is designed for straightforward compatibility with standard commercial plumbing fixtures. The faucet holes are pre-punched into the 9 1/2-inch high backsplash with the following specifications:

• Spacing: 8-inch centers (standard for commercial faucets)
• Diameter: 1 1/8 inches

Yes, the Eagle Group MHC 412 Series sinks include a basket-type waste drain as a standard feature. This drain is designed for efficient and durable waste collection in demanding commercial environments.

Key specifications for the included drain are:

• It is sized to fit the sink bowl opening of 3 1/2 inches.
• The outlet size for plumbing connection is 1 1/2 inches.

The overall height of the Eagle Group MHC 412 Series sink unit is a standardized 44 inches.

This dimension is fixed to ensure consistent integration into commercial and industrial settings, and it incorporates the heavy-duty structural components:

• Support Structure: 1 5/8” diameter heavy-gauge galvanized steel legs reinforced with 12-gauge gussets.
• Backsplash: A 9 1/2” high, full-length standard backsplash featuring a 1” upturn and tile edge for effective wall installation and sealing.

Yes, the sink’s fuse-welded and planished construction is a major selling point designed specifically to enhance hygiene and structural integrity in demanding environments. This process ensures the sink is ideal for commercial kitchens, laboratories, and medical facilities.

• Seamless, One-Piece Unit: The construction creates a single, monolithic, and seamless unit, eliminating joints or crevices where dirt or contaminants could accumulate.
• Easy Cleaning: This seamless nature makes the entire unit, including any integrally welded drainboards, much easier to clean and sanitize.
• Structural Integrity: The fuse-welding also contributes to the sink’s overall stability and durability, ensuring robust performance under heavy-duty use.

Yes, the Eagle Group MHC 412 Series offers comprehensive drainboard configurations to maximize utility in your specific environment. The units are fabricated using heavy-gauge Type 430 stainless steel and are fuse-welded to ensure a seamless, durable, one-piece assembly.

All configurations include the standard 20” x 16” sink bowl. You can select from the following drainboard arrangements:

• No Drainboards: Sink bowl only.
• Single Drainboard: Features an 18-inch or 24-inch drainboard on either the left or the right side.
• Dual Drainboards: Includes drainboards on both the left and right sides (available in 18-inch or 24-inch sizes).

Yes, the Eagle Group MHC 412 Series sinks are engineered for superior stability and structural integrity, making them ideal for demanding commercial environments. This is achieved through robust construction details, including:

• Heavy-Duty Legs: Supported by substantial 1 5/8” diameter heavy-gauge galvanized tubing legs.
• Enhanced Reinforcement: Stability is strengthened by plated 12-gauge gussets and die-cut reinforcing plates on the leg assemblies.
• Seamless Assembly: The entire unit is fuse-welded and planished, creating a durable, one-piece seamless sink unit that enhances overall rigidity.
• Adjustable Leveling: Adjustable bullet feet are included, allowing you to perfectly level the sink on uneven floor surfaces.
