Dynatronics Dynatron TriWave Light Pads

Dynatronics Dynatron TriWave Light Pads

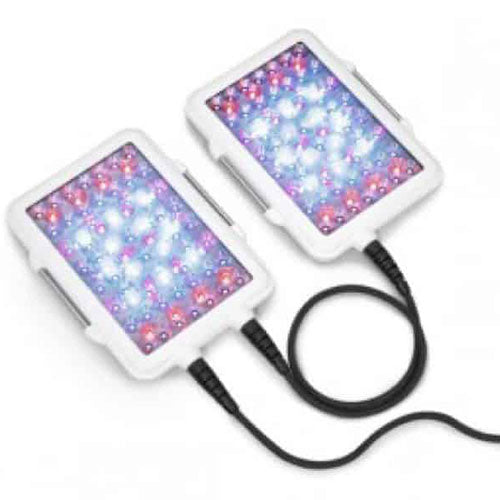

Dynatronics Dynatron TriWave Light Pads - Laid Out
Dynatronics Dynatron TriWave Light Pads
Dynatronics Dynatron TriWave Light Pads - Laid Out
Key Features
  • SKU: DYN-DLP3
  • Weight: 5.7 lb
  • Utilizes red, infrared, and blue light.
  • Dual light pads provide flexible coverage
  • Compatible with the Solaris Plus Stim/Ultrasound

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Dynatronics Ships from Manufacturer
  • MPN: DLP3
  • Phone: (800) 874-6251
$2,645.00

+Free Shipping*

Item Discontinued

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Dynatronics Dynatron TriWave Light Pads (#DLP3) are additional accessories for the Solaris Plus Stim/Ultrasound units.

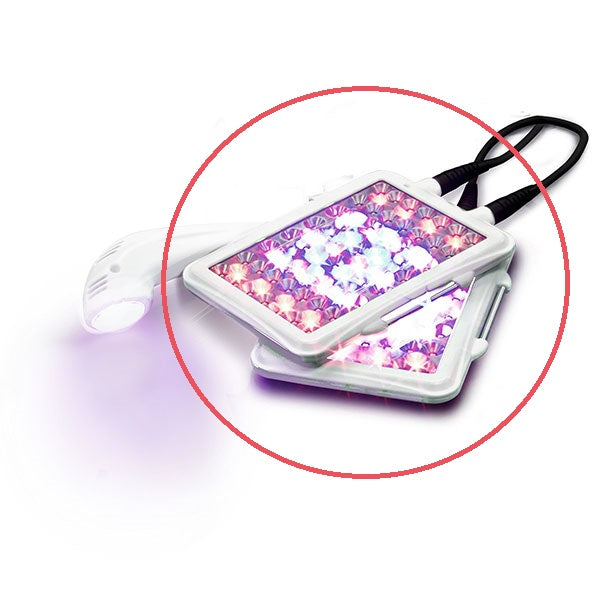

Note: These are the TriWave Light Pads ONLY. The TriWave Light Probe (pictured) is sold separately.

Warranty: 2 Years.

The TriWave Light Pads are two 5" x 7" pads that emit 3-wavelengths of red, infrared, and blue light. With two pads, caregivers can provide greater coverage for joint areas or two areas simultaneously. When used in conjunction with the Solaris Plus Stim/Ultrasound devices, and the ThermoStim Probe, caregivers can apply phototherapy, hot/cold therapy, and electrical stimulation all at the same time.

Features

Dynatronics Dynatron TriWave Light Pads Features

  • Dual light pads can apply light therapy to a joint or two areas of the body simultaneously.
  • Compatible with the Solaris Plus Stim/Ultrasound devices and ThermoStim Probe.
  • Feature 3-wavelengths of red, infrared, and blue light.

Specifications

Dynatronics Dynatron TriWave Light Pads Specifications

TriWave Light Pads Defaults

Wavelengths Default Dosage Power Output mW Time
Infrared (IR) (850 nM) 10 j/cm2 5160 mW 10 min.
Blue (464 nm) 10 j/cm2 2090 mW 10 min.
Red (624 nm) 10 j/cm2 2580 mW 20 min.
Infrared and Red 10 j/cm2 4128 mW 9 min. 50 sec.
Blue and Infrared 10 j/cm2 4092 mW 8 min. 23 sec.
Infrared, Blue, and Red 10 j/cm2 3599 mW 8 min. 42 sec.
Blue and Red 10 j/cm2 2802 mW 13 min. 20 sec.

Literature

Frequently asked questions

Does this product include dual pads for coverage?
<p>Yes, the package includes a set of <strong>two</strong> 5” x 7” TriWave Light Pads. This dual-pad configuration allows clinicians to expand the treatment area, addressing either a single large joint or two distinct body parts concurrently during one therapy session.</p>
What wavelengths of light do the Dynatron TriWave Light Pads emit?
<p>The Dynatron TriWave Light Pads emit three wavelengths of light: <strong>Infrared (850 nm)</strong>, <strong>Blue (464 nm)</strong>, and <strong>Red (624 nm)</strong>.</p>
What is the size of each TriWave Light Pad?
<p>Each TriWave Light Pad measures <strong>5” x 7”</strong>.</p>
What Dynatronics devices are compatible with the TriWave Light Pads?
<p>The TriWave Light Pads are compatible with <strong>Solaris Plus Stim/Ultrasound devices</strong> and the <strong>ThermoStim Probe</strong>.</p>
What is the specific power output for each wavelength?
<p>The Dynatron TriWave Light Pads are designed to deliver targeted phototherapy, with a default energy dosage standardized at <strong>10 j/cm²</strong> across all light combinations.</p>

<p>The specific power output (in milliwatts, mW) and corresponding treatment time required to achieve this dosage for each single wavelength are detailed below:</p>

<table>
<thead>
<tr>
<th>Wavelength</th>
<th>Wavelength (nm)</th>
<th>Output Power (mW)</th>
<th>Time (min)</th>
</tr>
</thead>
<tbody>
<tr>
<td><strong>Infrared (IR)</strong></td>
<td>850 nM</td>
<td>5160</td>
<td>10</td>
</tr>
<tr>
<td><strong>Red Light</strong></td>
<td>624 nm</td>
<td>2580</td>
<td>20</td>
</tr>
<tr>
<td><strong>Blue Light</strong></td>
<td>464 nm</td>
<td>2090</td>
<td>10</td>
</tr>
</tbody>
</table>

<p>These pads also support combined treatments utilizing dual or triple wavelengths, which adjust the total power output and treatment time to maintain the 10 j/cm² dosage:</p>

<table>
<thead>
<tr>
<th>Combination</th>
<th>Output Power (mW)</th>
<th>Time</th>
</tr>
</thead>
<tbody>
<tr>
<td>Infrared and Red</td>
<td>4128</td>
<td>9 min. 50 sec.</td>
</tr>
<tr>
<td>Blue and Infrared</td>
<td>4092</td>
<td>8 min. 23 sec.</td>
</tr>
<tr>
<td>Infrared, Blue, and Red</td>
<td>3599</td>
<td>8 min. 42 sec.</td>
</tr>
<tr>
<td>Blue and Red</td>
<td>2802</td>
<td>13 min. 20 sec.</td>
</tr>
</tbody>
</table>
What is the default dosage for all wavelengths and combinations on the TriWave Light Pads?
<p>The default dosage for all wavelengths and combinations is <strong>10 j/cm²</strong>.</p>
What is the warranty period for the Dynatron TriWave Light Pads?
<p>The Dynatron TriWave Light Pads come with a <strong>2-year warranty</strong>.</p>
Can the TriWave Light Pads be used to treat two areas of the body simultaneously?
<p>Yes, the dual-pad design allows for <strong>simultaneous treatment of two areas</strong> or greater coverage of a single joint area.</p>
