Dymedix PerfectFit 2 R/S Effort Belt Chest Sensor - Pediatric

Name: Dymedix PerfectFit 2 R/S Effort Belt Chest Sensor - Pediatric
Brand: Dymedix
SKU: DMX-11-22306-0301
Price: 303.95 USD
Availability: InStock

Dymedix PerfectFit 2 R/S Effort Belt ...

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: DMX-11-22306-0301
Condition: Factory New
Country of Origin: USA
Warranty: 2 Years
Dymedix products are available to U.S. customers only
Used to help aid in the detection of paradoxical respiratory movement
Plugs directly into RIP inputs
No woven wire belts and the low profile buckles ensure patient comfort
Learn more:

Contact The Manufacturer

MFR: Dymedix Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 11-22306-0301
Phone: (763) 789-8280

$303.95

Only 1 In Stock

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

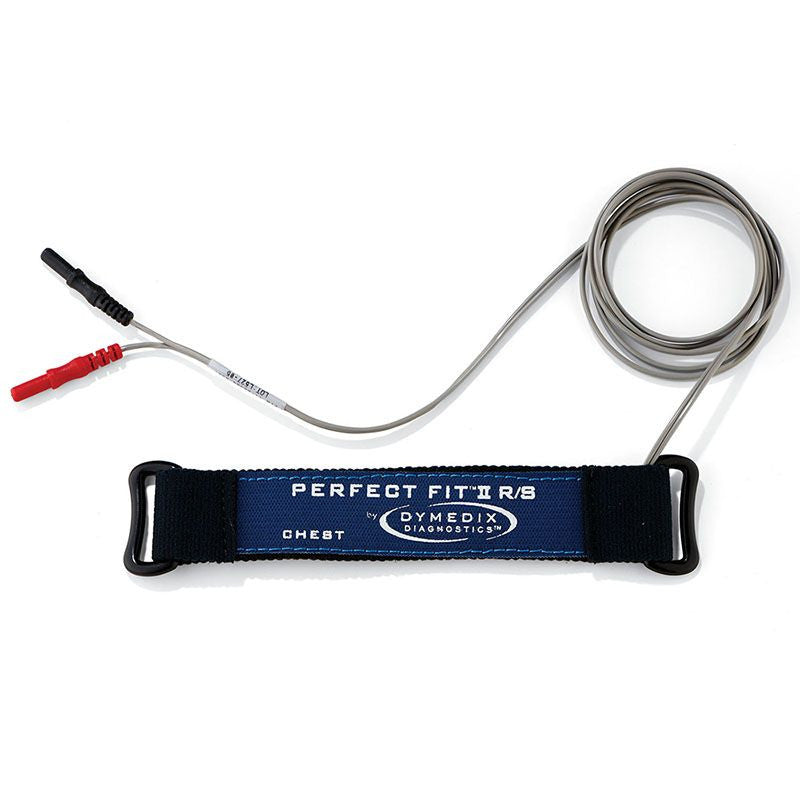

The Dymedix PerfectFit 2 R/S Effort Belt Chest Sensor - Pediatric (#11-22306-0301 / PF-075) is used to help aid in the detection of paradoxical respiratory movement and plugs directly into RIP inputs. No woven wire belts and the low profile buckles ensure patient comfort and allows for a quick and easy set-up.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

This U.S.-made Dymedix PerfectFit 2 R/S Effort Belt Chest Sensor - Pediatric uses polyvinylidene fluoride (PVDF) sensors. PVDF film is sensitive to both temperature change and pressure, and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product complies with American Academy of Sleep Medicine (AASM) technical specifications.

Note: Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.

Specifications

Dymedix PerfectFit 2 R/S Effort Belt Chest Sensor - Pediatric Specifications

Size: 6.25" (L) x 1.25" (H).
Cable Length: 60".
Weight / Shipping Weight: 2.4 oz.
Typical Polygraph Settings:
- Sensitivity: 100 to 300 µV/mm.
- Low Frequency Filter: 0.1 Hz.
- High Frequency Filter: 15 Hz.
Typical Signal Amplitude:
- Typical 1 mV peak to peak.
- Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.
Cable Material: Gray PVC insulation tinsel wire.
Sensor Technology: PVDF sensor, ABS filtration module.
Operating Conditions: 40 to 104 °F.
Storage Temperature: -4 to 140 °F.
Operating and Storage Humidity: 5 to 95% (non-condensing).
Shipping Dimensions: 6" (L) x 6" (W).

Literature

Dymedix PerfectFit 2 R/S Effort Belt Chest Sensor - Pediatric Literature

Dymedix 2017 Product Catalog
