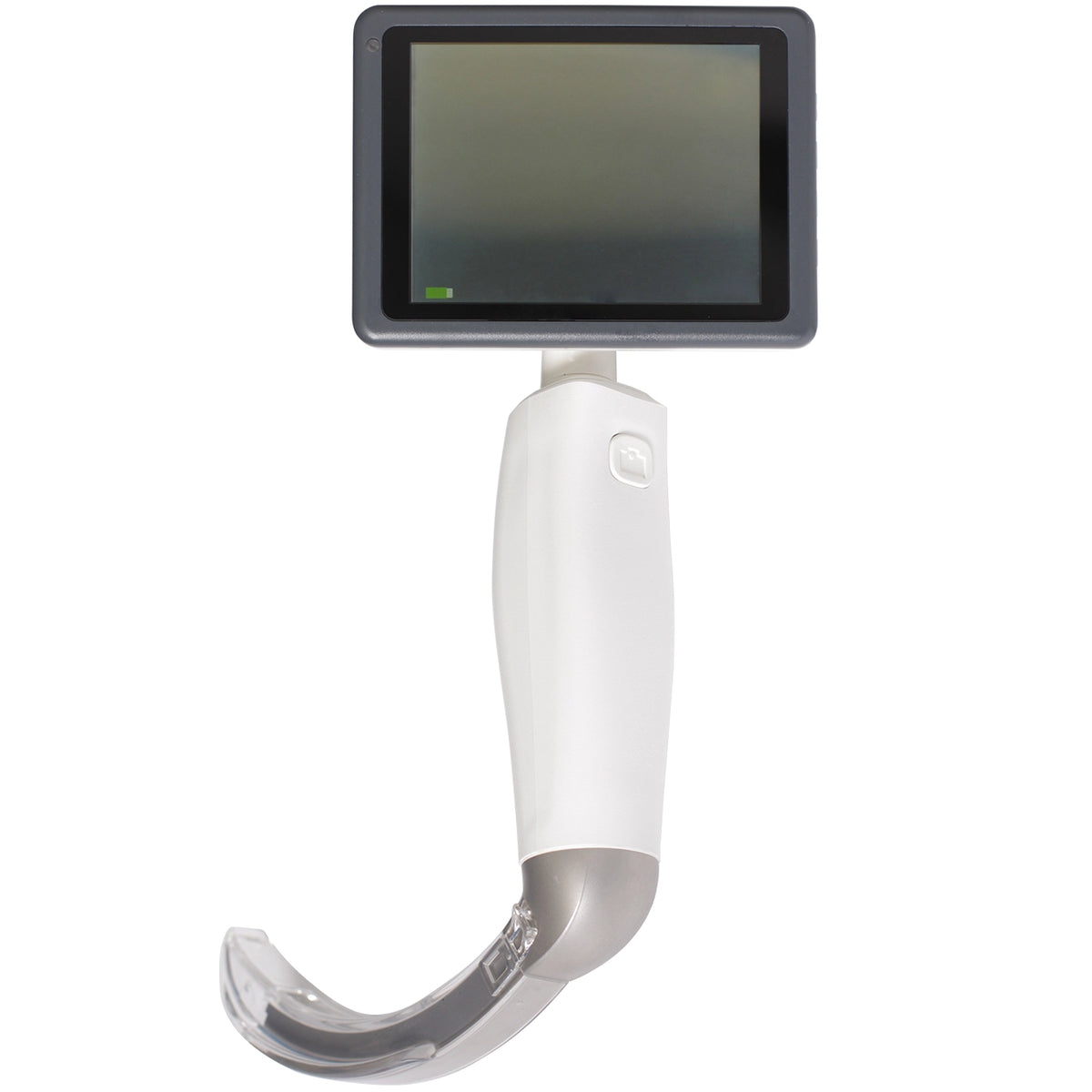

DRE InView HD Video Laryngoscope

DRE InView HD Video Laryngoscope

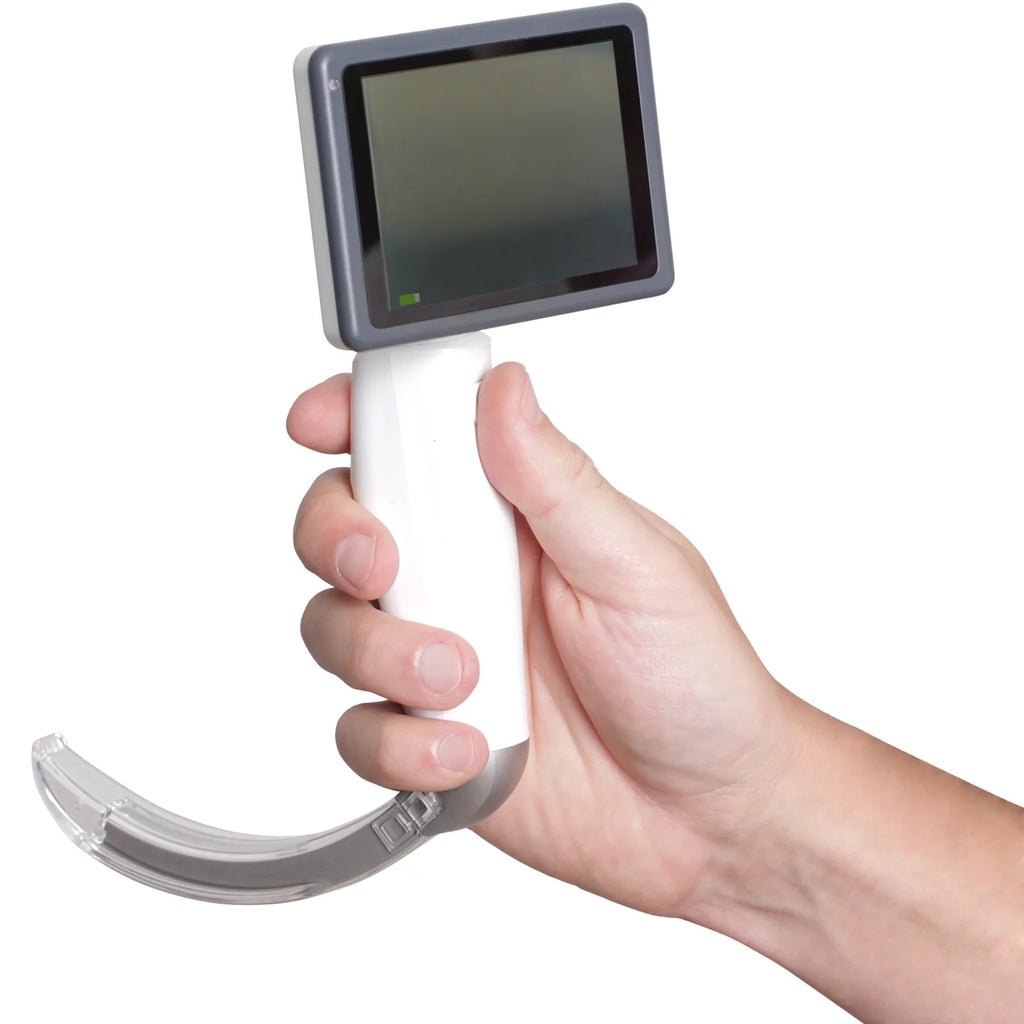

DRE InView HD Video Laryngoscope in hand

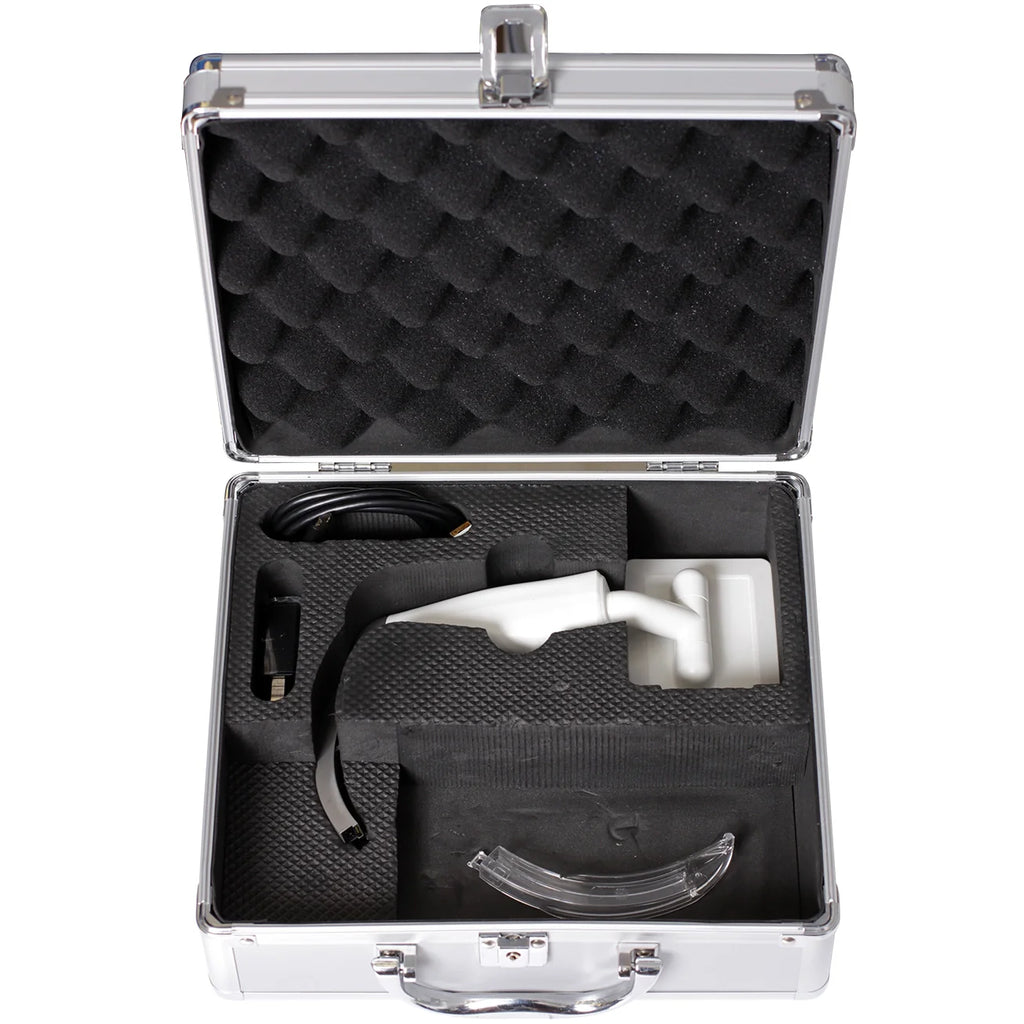

DRE InView HD Video Laryngoscope case
DRE InView HD Video Laryngoscope
DRE InView HD Video Laryngoscope in hand
DRE InView HD Video Laryngoscope case
Key Features
  • SKU: DRE-7GAWSV2
  • Condition: Factory New
  • Warranty: 1 Year
  • Weight: 3.87 lb
  • Ideal for a wide range of applications: ICU, cardiology, emergency, and ambulance
  • Lightweight and ergonomic design
  • 3.5" display provides high-performance visualization capabilities for every intubation
  • Anti-fog, 2.0 megapixel lens lets clinicians use immediately without preheating

  • Learn more:

Contact The Manufacturer
  • MFR: DRE Med Ships from MFI Medical
  • MPN: 7GAWSV2
  • Phone: (866) 282-6834
$2,022.80

+ Free Shipping

Special Order Item

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The DRE InView HD Video Laryngoscope (#7GAWSV2) includes a carrying case, handle charger, and one of each size of Mac 2, 3, and 4 disposable blades.

Warranty: 1 Year.

The Inview HD Video Laryngoscope is portable and ergonomically designed, allowing clinicians to achieve high-quality visualization over many care environments.

Features

DRE InView HD Video Laryngoscope Features

  • Ideal for a wide range of applications: ICU, cardiology, emergency, and ambulance.
  • Lightweight and ergonomic design.
  • 3.5" display provides high-performance visualization capabilities for every intubation.
  • Anti-fog, 2.0 megapixel lens lets clinicians use immediately without preheating.
  • Internal 8 GB SD memory card records intubations for training, etc.
  • Video display rotates 180°, as well as up and down.
  • Battery life lasts approximately 200 minutes.
  • Onboard micro USB for charging the unit and transferring video files.

Specifications

DRE InView HD Video Laryngoscope Specifications

  • Display:
    • Size: 3.5".
    • Monitor: LCD.
    • Resolution Ratio: 640 x 480 (RGB).
    • Aspect Ratio: 4:3.
    • Video Refresh Rate: 30 FPS.
    • Illumination: LED.
  • Weight: 350 g.
  • Data Output: Easy to establish and store files.
  • Blade Camera:
    • Resolution Ratio: 2.0 MP.
    • Field Angle: 66°.
    • Illuminance: ≥ 800 lux.
  • Rechargeable Lithium Battery:
    • Working Time: ≥ 200 min.
    • Voltage: 3.7 V.
    • Capacity: 3200 mAh.
    • Charging Cycles: More than 300 times.
    • Charging Time: Less than 8 hours.
  • Power Adapter:
    • Charging Port: Micro USB.
    • Input: 100 to 250 V, 50 Hz.
    • Output: 5 V, 1000 mA.
  • Environment:
    • Working Temperature: 5 to 40 °C.
    • Working Humidity: 30 to 85%.
    • Working Atmospheric Pressure: 700 to 1060 hPa.
    • Storage Temperature: -10 to 45 °C.
    • Storage Humidity: ≤ 93%.
    • Storage Atmospheric Pressure: 500 to 1060 hPa.

Frequently asked questions

What is included with the DRE InView system kit?

The DRE InView HD Video Laryngoscope is delivered as a comprehensive, factory-new kit designed for immediate clinical deployment and portability. The package includes:

  • Reusable Display Unit: The main unit featuring the 3.5-inch LCD monitor.
  • Handle Charger: Used for recharging the internal 3200 mAh lithium battery via the micro USB port.
  • Protective Carrying Case: A durable case for securing all components during transport and storage.
  • A starter set of three disposable Macintosh (Mac) blades:
    • One (1) Mac 2 Disposable Blade
    • One (1) Mac 3 Disposable Blade
    • One (1) Mac 4 Disposable Blade
Does the DRE InView HD Video Laryngoscope record video?

Yes, the DRE InView HD Video Laryngoscope features an internal 8 GB SD memory card that allows for recording intubations. This recording capability is ideal for training and documentation purposes, and data output is designed for easy file establishment and storage.

Does the display rotate for optimal viewing?

Yes, the video display on the DRE InView HD Video Laryngoscope can rotate 180 degrees, offering versatile viewing angles during intubation procedures.

Does the lens prevent fogging effectively?

Yes, the DRE InView HD Video Laryngoscope features a 2.0 MP anti-fog lens that provides clear visualization and eliminates the need for preheating, allowing for immediate use.

Can the device be used immediately without warming up?

Yes. The DRE InView is equipped with anti-fog technology and a high-performance lens, which eliminates the need for preheating. This allows clinicians to achieve immediate, clear airway visualization exactly when it is needed most.

Does the DRE InView Laryngoscope have a long-lasting battery?

Yes, the DRE InView HD Video Laryngoscope is equipped with a high-capacity 3200 mAh rechargeable lithium battery designed for reliable, extended use in critical environments. Key power specifications are:

  • Continuous Working Time: The device provides a minimum of 200 minutes (over three hours) of continuous operation.
  • Durability: The battery supports more than 300 charging cycles.
  • Charging: It charges in less than 8 hours via the onboard Micro USB port.
What port is used for charging and data transfer?

The DRE InView HD Video Laryngoscope utilizes a standardized Micro USB port. This single port serves two primary functions:

  • Charging: It is used to recharge the 3200 mAh Lithium battery.
  • Data Output: It facilitates easy transfer and storage of recorded intubation files from the internal 8 GB SD memory card.
Is the laryngoscope suitable for diverse clinical environments?

The DRE InView HD Video Laryngoscope is engineered for high-performance visualization during intubation procedures in diverse medical environments. Its lightweight (350 g) and ergonomic design make it particularly well-suited for demanding settings, including:

  • ICU (Intensive Care Unit)
  • Cardiology
  • Emergency rooms
  • Ambulance settings
What is the display size and camera resolution?

The DRE InView HD Video Laryngoscope provides clear visualization with the following key specifications:

  • Display: 3.5-inch LCD monitor with 640 x 480 (RGB) resolution.
  • Camera: 2.0 MP lens resolution.

Additionally, the 2.0 MP lens is anti-fog, ensuring immediate readiness and clear imagery during intubation procedures without requiring preheating.

Is the DRE InView HD Video Laryngoscope lightweight?

Yes, the DRE InView HD Video Laryngoscope is designed for exceptional portability and easy handling. The device unit weighs only 350 grams.

This lightweight, ergonomic construction makes it highly suitable for dynamic care environments, including the ICU, Emergency Department, and ambulance settings.
