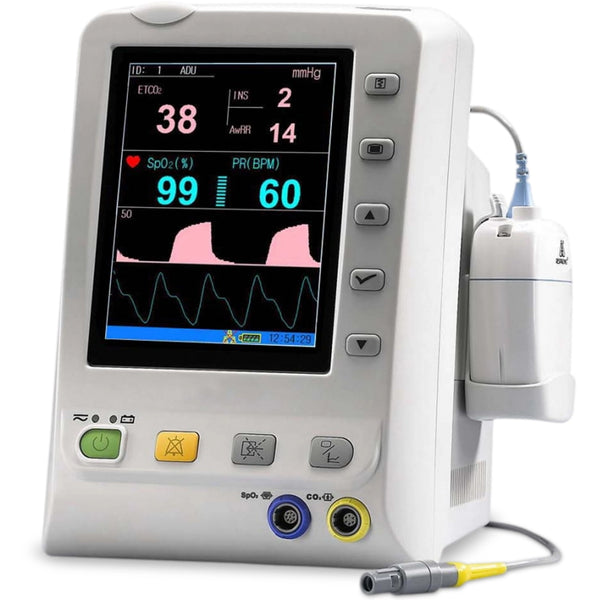

DRE Echo Capnography Monitor

DRE Echo Capnography Monitor
Key Features
  • SKU: DRE-60129SCRS
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 6.61 lb
  • Respironics LoFlo sidestream measurement
  • Ensures effective monitoring for intubated and non-intubated patients for continuous long-term monitoring
  • 5.7" high resolution display for easy reading
  • Real-time parameters measurement display with trend table for easy reviewing

  • Learn more:

Contact The Manufacturer
  • MFR: DRE Med Ships from Manufacturer
  • MPN: 60129SCRS
$2,495.31

+ Free Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The DRE Echo Capnography Monitor (#60129SCRS) provides cost-effective EtCO2 monitoring with accuracy and durability. The Echo CO2 ensures effective monitoring for intubated and non-intubated patients for continuous long-term monitoring. It is tailored for mechanically ventilated and non-intubated patients.

Warranty: 2 Years.

Capnography is outpacing pulse oximetry as the new standard of care in outpatient surgery procedures.

Features

DRE Echo Capnography Monitor Features

  • 5.7" high resolution display for easy reading.
  • Lightweight, portable design, and user-friendly interface for easy operation.
  • Flexible configurations to meet different clinical needs.
  • PR measurement.
  • Respironics LoFlo sidestream measurement.
  • Powerful storage capacity.
  • Real-time parameters measurement display with trend table for easy reviewing.
  • Built-in rechargeable lithium-ion battery for 10 hours of continuous working.
  • Bi-directional communications with central station by wired or wireless network.
  • Nurse call.
  • Suitable for adult, pediatric, and neonatal patients.

Specifications

DRE Echo Capnography Monitor Specifications

  • Weight: 6.61 lb (3 kg).
  • Size: 200.8 mm (L) x 189 mm (D) x 241 mm (H).
  • Display: 5.7".
  • Color TFT Resolution: 640 x 480.
  • Power Supply: 100 to 240 VAC, 50/60 Hz.
  • Pmax: 70 VA, FUSE T 1.6 AL.
  • Battery:
    • Voltage: 14.8 V DC.
    • Capacity: 4400 mAh.
    • Working Period: Color TFT 480 min.
    • Rechargeable Period: < 360 min.
  • SpO2:
    • Measuring Range: 0 ~ 100%.
    • Alarm Range: 0 ~ 100%.
    • Resolution: 1%.
    • Accuracy:
      • Adult/Pediatric: ± 2% (70 to 100% SpO2) / Undefined (0 to 70% SpO2).
      • Neonate: ± 3% (70 to 100% SpO2) / Undefined (0 to 70% SpO2).
      • Pulse Rate:
        • Measuring/Alarm Range: 30 to 300 bpm.
        • Resolution: 1 bpm.
        • Accuracy: ± 3 bpm.
      • Data Update Period: 2 seconds.
  • Sidestream Respironics CO2:
    • Sample Rate: 50 m/L per minute.
    • CO2 Measurement Range: 0 to 150 mm Hg, 0 to 20 kPa (at 760 mm Hg).
    • CO2 Resolution:
      • At 0 to 69 mm Hg: 0.1 mm Hg.
      • At 70 to 150 mm Hg: 0.25 mm Hg.
    • CO2 Resolution:
      • 0 to 40 mm Hg: ± 2 mm Hg.
      • 41 to 70 mm Hg: ± 5% of reading.
      • 71 to 100 mm Hg: ± 8% of reading.
      • 101 to 150 mm Hg: ± 10% of reading.
      • Above 80 bpm: ± 12% of reading.
    • Respiratory Rate:
      • Range: 2 to 150 bpm.
      • Accuracy: ± 1 breath.
    • Sample Kit Hours of Use: Nasal Cannula (all styles) - Up to 12 hours.
    • Water Resistance IPX4: Splash-proof (when sample cell is inserted in receptacle).

Frequently asked questions

Is the CO2 monitoring highly accurate?

Yes, the DRE Echo Capnography Monitor is designed for highly accurate and continuous EtCO2 monitoring using Respironics LoFlo sidestream measurement technology.

This technology supports continuous long-term monitoring for intubated and non-intubated patients across adult, pediatric, and neonatal groups. The CO2 measurement range is 0 to 150 mm Hg.

The specific accuracy specifications are detailed as follows:

  • ± 2 mm Hg (0 to 40 mm Hg)
  • ± 5% of reading (41 to 70 mm Hg)
  • ± 8% of reading (71 to 100 mm Hg)
  • ± 10% of reading (101 to 150 mm Hg)
Is the condition new?

This monitor ships in factory new condition, ensuring you receive a pristine device.

What key parameters does the monitor measure?

The DRE Echo Capnography Monitor is designed to provide comprehensive patient observation, monitoring four key physiological parameters:

  • EtCO2 (End-tidal Carbon Dioxide): Measured using Respironics LoFlo sidestream technology.
  • SpO2 (Oxygen Saturation)
  • PR (Pulse Rate)
  • AWRR (Apparent Respiratory Rate)

This robust monitoring capability ensures effective, continuous long-term monitoring for adult, pediatric, and neonatal patients, supporting both intubated and non-intubated applications.

Is the monitor lightweight?

The DRE Echo Capnography Monitor weighs 6.61 pounds (3 kg), making it a lightweight and portable option for medical facilities.

Is it suitable for all patient types?

Yes, the DRE Echo Capnography Monitor is designed for both intubated and non-intubated patients, including adults, pediatrics, and neonates. This makes it highly versatile for continuous, long-term monitoring across different patient populations.

What is the display resolution?

The DRE Echo Capnography Monitor features a 5.7” Color TFT display with a resolution of 640 x 480, providing a clear and high-resolution view of real-time parameters and trend tables.

What is the battery's maximum working time?

The DRE Echo Capnography Monitor is equipped with a high-capacity built-in rechargeable lithium-ion battery (14.8 V DC, 4400 mAh).

This battery supports continuous monitoring with the following metrics:

  • Working Period: Up to 8 hours (480 minutes) on the color TFT display.
  • Recharge Time: Less than 360 minutes (6 hours).
What are the DRE Echo's CO2 measurement accuracies?

The DRE Echo Capnography Monitor utilizes Respironics LoFlo sidestream measurement technology and provides the following CO2 accuracy specifications:

  • 0 to 40 mm Hg: ± 2 mm Hg
  • 41 to 70 mm Hg: ± 5% of reading
  • 71 to 100 mm Hg: ± 8% of reading
  • 101 to 150 mm Hg: ± 10% of reading
  • Respiratory rates above 80 bpm: ± 12% of reading

Additionally, the CO2 numerical resolution is 0.1 mm Hg (for 0 to 69 mm Hg) and 0.25 mm Hg (for 70 to 150 mm Hg).

What is the CO2 sample rate?

The DRE Echo Capnography Monitor uses Respironics LoFlo sidestream technology for CO2 analysis.The precise sample rate required for this measurement is 50 mL per minute.

Is it resistant to splashes?

Yes, the DRE Echo Capnography Monitor is designed with an IPX4 rating for water resistance. This means the unit is splash-proof when the sample cell is properly inserted into its receptacle, enhancing its durability in clinical environments.
