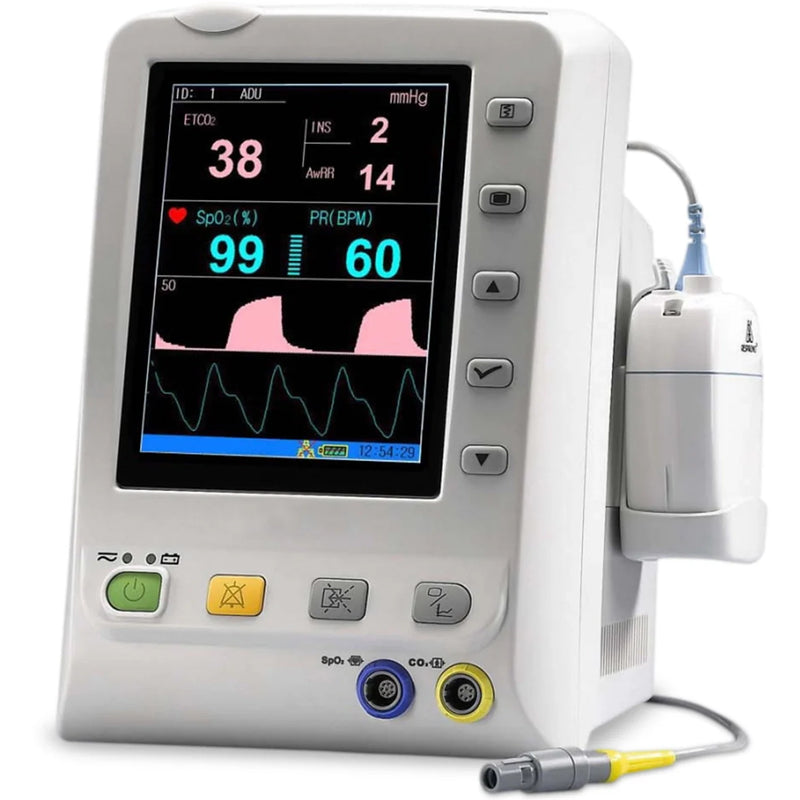

DRE Echo Capnography Monitor

DRE Echo Capnography Monitor
Key Features
  • SKU: DRE-60129SCRS
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 6.61 lb
  • Respironics LoFlo sidestream measurement
  • Ensures effective monitoring for intubated and non-intubated patients for continuous long-term monitoring
  • 5.7" high resolution display for easy reading
  • Real-time parameters measurement display with trend table for easy reviewing

  • Learn more:

Contact The Manufacturer
  • MFR: DRE Med Ships from Manufacturer
  • MPN: 60129SCRS
$2,652.61
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The DRE Echo Capnography Monitor (#60129SCRS) provides cost-effective EtCO2 monitoring with accuracy and durability. The Echo CO2 ensures effective monitoring for intubated and non-intubated patients for continuous long-term monitoring. It is tailored for mechanically ventilated and non-intubated patients.

Warranty: 2 Years.

Capnography is outpacing pulse oximetry as the new standard of care in outpatient surgery procedures.

Features

DRE Echo Capnography Monitor Features

  • 5.7" high resolution display for easy reading.
  • Lightweight, portable design, and user-friendly interface for easy operation.
  • Flexible configurations to meet different clinical needs.
  • PR measurement.
  • Respironics LoFlo sidestream measurement.
  • Powerful storage capacity.
  • Real-time parameters measurement display with trend table for easy reviewing.
  • Built-in rechargeable lithium-ion battery for 10 hours of continuous working.
  • Bi-directional communications with central station by wired or wireless network.
  • Nurse call.
  • Suitable for adult, pediatric, and neonatal patients.

Specifications

DRE Echo Capnography Monitor Specifications

  • Weight: 6.61 lb (3 kg).
  • Size: 200.8 mm (L) x 189 mm (D) x 241 mm (H).
  • Display: 5.7".
  • Color TFT Resolution: 640 x 480.
  • Power Supply: 100 to 240 VAC, 50/60 Hz.
  • Pmax: 70 VA, FUSE T 1.6 AL.
  • Battery:
    • Voltage: 14.8 V DC.
    • Capacity: 4400 mAh.
    • Working Period: Color TFT 480 min.
    • Rechargeable Period: < 360 min.
  • SpO2:
    • Measuring Range: 0 ~ 100%.
    • Alarm Range: 0 ~ 100%.
    • Resolution: 1%.
    • Accuracy:
      • Adult/Pediatric: ± 2% (70 to 100% SpO2) / Undefined (0 to 70% SpO2).
      • Neonate: ± 3% (70 to 100% SpO2) / Undefined (0 to 70% SpO2).
      • Pulse Rate:
        • Measuring/Alarm Range: 30 to 300 bpm.
        • Resolution: 1 bpm.
        • Accuracy: ± 3 bpm.
      • Data Update Period: 2 seconds.
  • Sidestream Respironics CO2:
    • Sample Rate: 50 m/L per minute.
    • CO2 Measurement Range: 0 to 150 mm Hg, 0 to 20 kPa (at 760 mm Hg).
    • CO2 Resolution:
      • At 0 to 69 mm Hg: 0.1 mm Hg.
      • At 70 to 150 mm Hg: 0.25 mm Hg.
    • CO2 Resolution:
      • 0 to 40 mm Hg: ± 2 mm Hg.
      • 41 to 70 mm Hg: ± 5% of reading.
      • 71 to 100 mm Hg: ± 8% of reading.
      • 101 to 150 mm Hg: ± 10% of reading.
      • Above 80 bpm: ± 12% of reading.
    • Respiratory Rate:
      • Range: 2 to 150 bpm.
      • Accuracy: ± 1 breath.
    • Sample Kit Hours of Use: Nasal Cannula (all styles) - Up to 12 hours.
    • Water Resistance IPX4: Splash-proof (when sample cell is inserted in receptacle).
