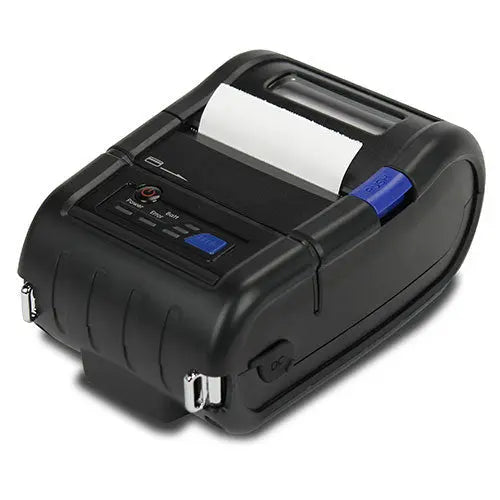

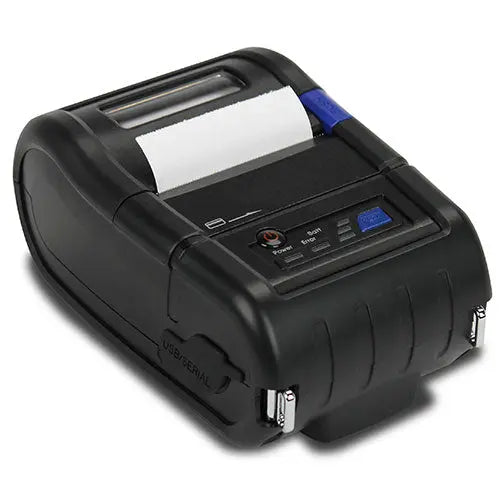

Detecto P150 Portable Thermal Printer

Detecto P150 Portable Thermal Printer
Detecto P150 Portable Thermal Printer - 2
Detecto P150 Portable Thermal Printer
Detecto P150 Portable Thermal Printer - 2
Key Features
  • SKU: DTO-P150
  • Condition: Factory New
  • Warranty: 2 Years
  • Printer, Thermal Tape, RS232 Interface

  • Learn more:

Contact The Manufacturer
  • MFR: Detecto Ships from Manufacturer
  • MPN: P150
  • Phone: (800) 641-2008
$1,092.00 $920.99

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Detecto P150 Portable Thermal Printer (#809161149708) comes with an AC adapter, standard serial printer cable, and lithium-ion rechargeable battery.

Warranty: 2 Years.

The P150 is a high-speed direct line thermal printer that can be used with any Detecto Scale weight indicator with RS232 serial port connectivity. It is lightweight, compact, mobile, and robust, with a long-life printing head and high reliability. It features easy paper handling due to its paper drop-in style, quick printing speed, high resolution, and serial and USB connectivity.

Features

Detecto P150 Portable Thermal Printer Features

  • Long-life battery.
  • 203 DPI x 203 DPI resolution.
  • Lightweight and mobile.
  • 80 mm/sec printing.
  • RS232 serial and USB.
  • Standard serial printer cable provided.

Specifications

Detecto P150 Portable Thermal Printer Specifications

  • Printing Method: Direct line thermal.
  • Printing Speed: Maximum 3.15" (80 mm) per second.
  • Resolution: 203 dpi x 203 dpi.
  • Print Width: 1.89" (48 mm), 384 dot.
  • Character: Alpha numeric character, extensions character.
  • Font: Font A (12 x 24 dot), Font B (9 x 17 dot).
  • Number of Columns: 32 (Font A), 42 (Font B).
  • Barcode: EAN-8, EAN-13, CODE 39, ITF, UPC-A, Codabar, Code93, Code128, PDF417(2D).
  • Emulation: ESC/POS.
  • Driver: Window CE 4.2 & 5.0, Window Mobile 5.0.
  • Sensor: Paper end sensor, gap sensor, cover open sensor.
  • Paper Type: Thermal.
  • Paper Width: 3.5" (88 mm).
  • Battery: Continuous printing for 90 minutes. Standby for 24 hours.
  • Communications: Series (RS232C), USB, Wireless Lan 802.11b/g (CMP-20WF).
  • Battery Charger Input: AC 100-240 V, 50/60 Hz.
  • Battery Charger Output: 8.4 V, 1200 mA.
  • Battery Type: Lithium ion.
  • Battery Output Type: 7.4 V, 1800 mAh.
  • Battery Charging Time: 2 hours.
  • Handling: Paper drop-in.
  • Battery Sensor: 3 LEDs to indicate battery status.
  • Dimensions: 3.7" W x 5.3" D x 2.2" H (96 mm x 136 mm x 58 mm).
  • Operating Temperature: 41-104ç F (5-40ç C).

Literature

Detecto P150 Portable Thermal Printer Literature

Detecto P150 Portable Thermal Printer Brochure

Frequently asked questions

What type of printing method does the Detecto P150 use?

The Detecto P150 uses a direct line thermal printing method.

What is the maximum printing speed of the Detecto P150?

The Detecto P150 has a maximum printing speed of 3.15” (80 mm) per second.

What is the printing resolution of the Detecto P150?

The printing resolution of the Detecto P150 is 203 DPI x 203 DPI.

What types of barcodes can the Detecto P150 print?

The Detecto P150 supports a variety of barcode formats, including:

  • EAN-8
  • EAN-13
  • CODE 39
  • ITF
  • UPC-A
  • Codabar
  • Code93
  • Code128
  • PDF417 (2D)
What connectivity options does the Detecto P150 offer?

The Detecto P150 Portable Thermal Printer provides versatile connectivity options including RS232 serial and USB. Additionally, a Wireless LAN 802.11b/g (CMP-20WF) option is available for wireless communication.

How long does the battery of the Detecto P150 last?

The rechargeable lithium-ion battery in the Detecto P150 provides approximately 90 minutes of continuous printing or 24 hours of standby time.

What is included with the Detecto P150 printer?

The Detecto P150 Portable Thermal Printer package is delivered complete with the necessary components for mobile operation:

  • The Detecto P150 main unit (Printer)
  • A Lithium-ion rechargeable battery (offering up to 90 minutes of continuous printing or 24 hours of standby time)
  • AC adapter for charging
  • Standard serial printer cable
What type of paper does the Detecto P150 use?

The Detecto P150 uses thermal paper with a width of 3.5” (88 mm).

How long does it take to fully charge the Detecto P150 battery?

It takes approximately 2 hours to fully charge the Detecto P150 battery.

How simple is the paper loading process?

The Detecto P150 features an easy paper drop-in style handling, which simplifies paper loading and helps to reduce downtime during use. It uses standard thermal paper with a width of 3.5 inches (88 mm).
