Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale

Key Features

SKU: DTO-495
Condition:

Condition: Factory New
Warranty:

Warranty: 2 Years
Weight: 194.0 lb
Learn more:

Contact The Manufacturer

MFR: Detecto

Ships from Manufacturer
MPN: 495
Phone: (800) 641-2008

$4,210.00 $2,393.61

Select a Configuration

Variant

Est. Delivery:

Quantity

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Description

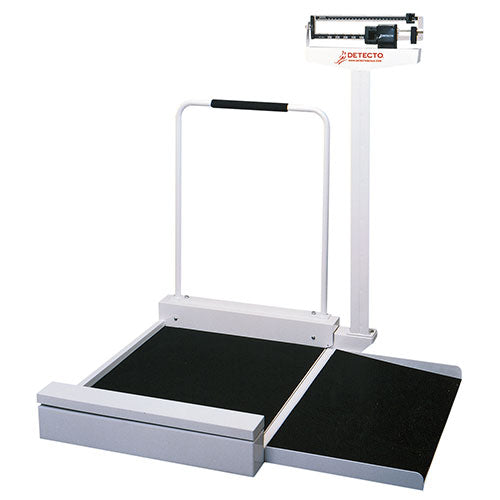

The Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale comes with a detachable ramp, a padded handrail, and a dual-sided, die-cast, eye-level weigh beam that is graduated at either 4-ounce or 100-gram increments.

Warranty: 2 Years - Defects and Workmanship.

The Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale sits on a 30" L x 26" x W x 2" H platform. Two models of this scale are available and display measurement in pounds or kilograms reaching a capacity of 400 lb or 180 kg (Imperial or Metric). The weigh beam has printed increments on both sides and may be read by patient or physician from either side of scale.

This mechanical beam scale provides an economic answer to weighing of patients in wheelchairs. Quality is enhanced by precision die-cast weigh beam which is easily read from either side. The weight beam is located at a height above the platform where patient or attendant can perform the weighing operation.

Features

Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale Features

Made in USA.
Detachable non-skid ramp included.
Electrostatic powder paint finish.
Die-cast weight beam may be read from either side.

Specifications

Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale Specifications

Weigh Beam: Die-cast, dual-sided.
Platform: 30" L x 26" W x 2" H with non-skid removable mat.
Construction: Stainless steel with electrostatic powder paint.
Shipping Dimensions (scale and ramp): 41" x 35" x 8" & 42" x 10" x 8".
Shipping Weight: 194 lb.

Configurations

Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale Configurations

809161138603: Model 4951; All features listed above with metric weigh beam; capacity of 180 kg x 0.1 kg (Metric Only).
809161138504: Model 495; All features above with imperial weigh beam; capacity of 400 lb x 0.2 lb (Imperial Only).

Literature

Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale Literature

Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale Spec Sheet

Frequently asked questions

Does the scale have a handrail for patient support?

Yes, it includes a padded handrail to provide added comfort and support for patients.

What is the maximum weight capacity?

The Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale (Model 495) offers a robust maximum capacity of 400 lb.

Measurements are taken using the Imperial system and are graduated in precise 4-ounce increments.

This scale utilizes a precision die-cast, dual-sided eye-level weigh beam to ensure that both the patient and the attendant can easily read the accurate results from either side.

Is the ramp detachable from the wheelchair scale?

Yes, the scale comes with a detachable, non-skid ramp for easy access.

Is the Detecto Heavy-Duty Wheelchair Scale easy to read?

Yes, it features a dual-sided, die-cast weigh beam that allows for easy reading from either side of the scale.

What useful accessories come with this heavy-duty scale?

The Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale includes all necessary components to ensure safety, accessibility, and accurate weighing:

Scale Platform Assembly: This is the main unit, featuring the low-profile platform and the die-cast, dual-sided, eye-level weigh beam.
Detachable Non-Skid Ramp: Allows for safe and easy loading of wheelchairs onto the platform.
Padded Handrail: Provides stability and support for patients during the weighing process.
Non-Skid Removable Mat: Covers the platform surface for enhanced safety and easy cleaning.

Is the scale built for long-term durability?

Yes, the Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale is built with stainless steel and an electrostatic powder paint finish for superior durability and a long lifespan. This construction ensures it can withstand rigorous use in healthcare environments.

What measurement system does this wheelchair scale use?

This specific configuration of the Detecto Heavy-Duty Stationary Mechanical Wheelchair Scale (Model 495) uses the Imperial measurement system.

It is a heavy-duty scale designed for reliable and precise weighing in medical environments, with the following key specifications:

Measurement System: Imperial (Pounds)
Maximum Capacity: Measures up to 400 lb
Precision: Graduated clearly in fine 4-ounce (0.25 lb) increments

This model also features a large 30” L x 26” W platform and an accessible, dual-sided, eye-level weigh beam for easy reading by both the patient and the attendant.

What are the platform dimensions?

The stationary mechanical wheelchair scale features a robust, low-profile platform designed for accessibility and safety:

Length: 30 inches
Width: 26 inches
Height: 2 inches (low profile)

For enhanced patient stability, the platform surface includes a non-skid, removable mat. The low profile height ensures smooth integration with the included detachable non-skid ramp for convenient wheelchair access.

Is the wheelchair scale highly durable?

Yes, this Detecto scale is built with heavy-duty construction designed for frequent, long-term use in demanding clinical environments. Its durability is supported by:

Stainless Steel Components: Ensures robustness and longevity.
Electrostatic Powder Paint Finish: Provides a protective coating against wear and tear.

What are the precise weight increments?

The Detecto Model 495 uses a precision die-cast, dual-sided eye-level weigh beam for accurate measurement up to its 400 lb capacity.

For this Imperial Model (Model 495), the precise measurement increments are:

Graduated in 4-ounce (4 oz) increments (equivalent to 0.25 lb).
