Detecto Digital Patient Lift Scale

The Detecto Digital Patient Lift Scale is available in two robust maximum capacity options designed to accommodate a variety of patient needs:

• 400 lbs (180 kg)
• 600 lbs (270 kg)

For added operational convenience, the scale includes a dedicated key on its simple three-key interface, allowing users to easily toggle between Pound (LB) and Kilogram (KG) measurements.

Yes, the Detecto Digital Patient Lift Scale requires a single 9 V battery for operation.

Keep in mind these important details regarding power:

• The required 9 V battery is not included and must be supplied separately.
• To conserve energy, the scale includes an automatic shut-off feature to maximize battery life.

Yes, the Detecto Digital Patient Lift Scale features large, clear LCD readouts for easy visibility. The digital characters measure 0.75 inches high, ensuring unambiguous weight determination for care providers.

The Detecto Digital Patient Lift Scale is engineered with a compact profile for seamless integration with portable patient lift systems.

Here are the precise dimensions of the scale itself (Width x Depth x Height):

• Width: 4.175 inches
• Depth: 2.175 inches
• Height: 5 inches

For secure attachment, the scale’s housing provides specific mounting hole measurements:

• Mounting Hole Diameter: 0.5 inches
• Center-to-Center Mounting Hole Distance: 4 inches

Yes, the Detecto Digital Patient Lift Scale is engineered for maximum simplicity and ease of use in clinical settings.

Its design prioritizes quick and efficient patient weighing procedures:

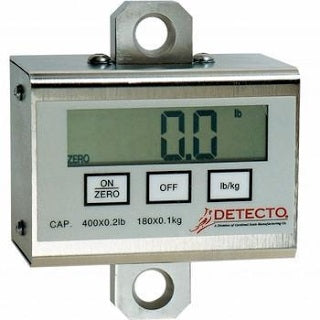

• Three-Key System: Operation is managed by a membrane keypad featuring only three essential keys: On/Zero, Off, and LB/KG (to toggle between pounds and kilograms).
• Clear Readouts: Patient weight is displayed on large, easy-to-read 0.75-inch LCD digital readouts.
• Lock-Weight Feature: This convenient function stores the last measured weight reading, retaining the data even after the unit is powered off.
• Automatic Shut-Off: The scale includes an automatic shut-off function to conserve battery life (requires one 9 V battery, not included).

Yes, the Detecto Digital Patient Lift Scale is equipped with an automatic shut-off feature designed to conserve power.

This functionality is especially useful as the scale operates entirely on a single 9 V battery (not included).

Crucially, the scale also features a Lock-in Weight Option. This ensures the last measured weight reading is stored and retained, even after the unit automatically shuts off.

The Detecto Digital Patient Lift Scale is designed to provide reliable and accurate performance within a standard operating temperature range. The specific range is:

• 50 to 104 °F
• 10 to 40.5 °C

Operating within these limits ensures the electronic indicator functions correctly in typical medical environments.

Yes, the Detecto Digital Patient Lift Scale is equipped with a valuable lock-weight feature.

This crucial functionality is designed to streamline your weighing process:

• It automatically stores the last accurate weight measurement taken.
• The reading is preserved and retained even after the unit is powered off, ensuring easy recording.

Yes, the Detecto Digital Patient Lift Scale includes the necessary hardware for immediate connection to a portable patient lift mechanism.

Specifically, your purchase includes:

• Two spring “O” rings

These rings allow you to securely connect the scale indicator unit to your existing lift system. The scale housing features mounting holes that are 0.5 inches in diameter and spaced 4 inches center-to-center for a secure fit. Please note that the patient lift mechanism itself is sold separately.

No, the scale’s required power source, one 9 V battery, is not included and must be purchased separately.

To help conserve power and maximize usage time, the unit is equipped with an Automatic shut-off feature.

Note that while the battery is separate, the necessary hardware for secure attachment is included:

• Two heavy-duty spring “O” rings
