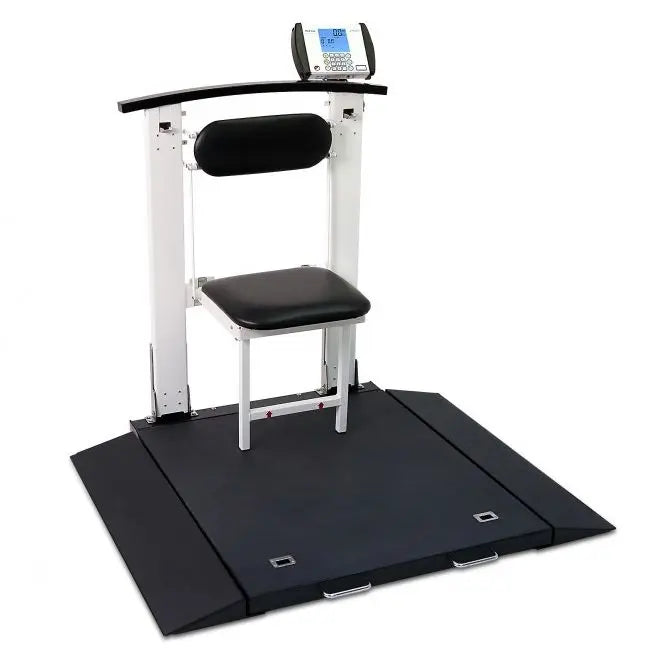

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat

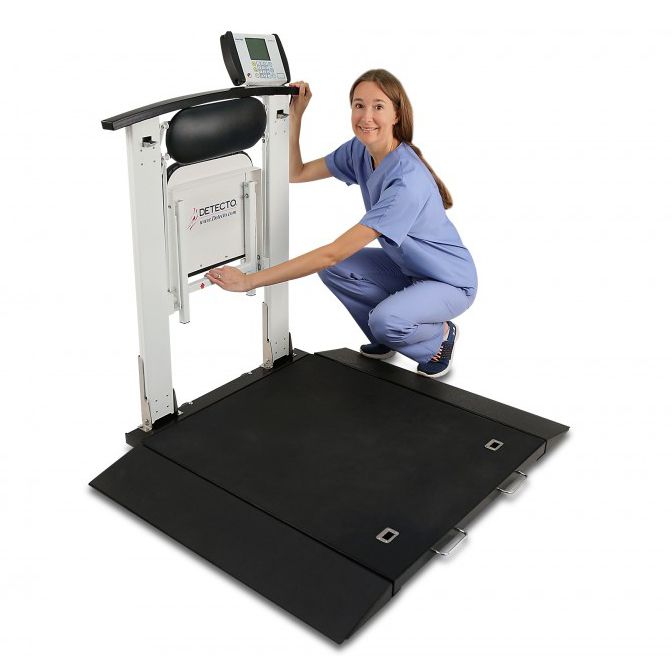

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat - Folding Demo

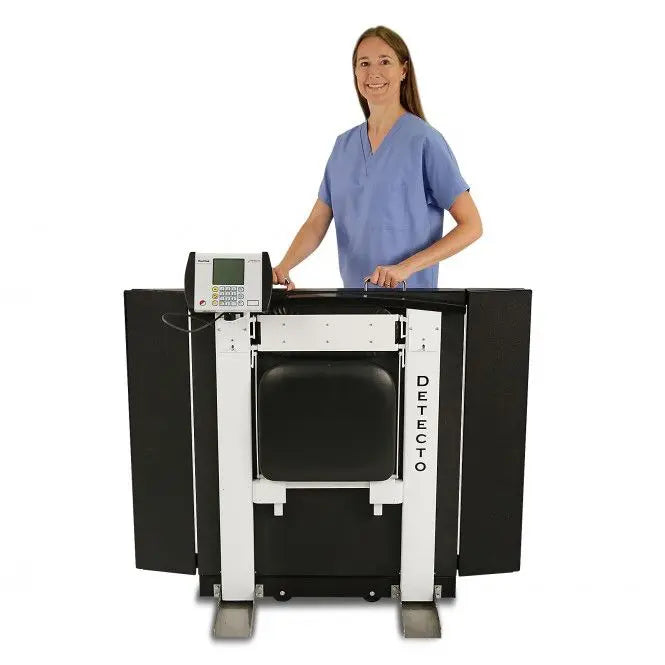

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat - Collapse Demo

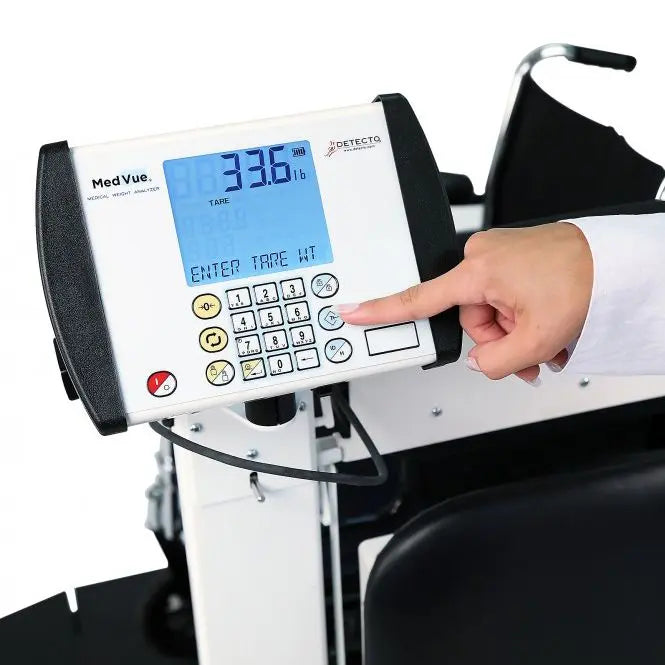

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat - Display
Detecto 6570 Portable Wheelchair Scale with Handrail and Seat
Detecto 6570 Portable Wheelchair Scale with Handrail and Seat - Folding Demo
Detecto 6570 Portable Wheelchair Scale with Handrail and Seat - Collapse Demo
Detecto 6570 Portable Wheelchair Scale with Handrail and Seat - Display
Key Features
  • SKU: DTO-6570
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 0.02 lb
  • Wheelchair Scale, Portable, Digital, Folding Column & Seat, 1000 lb x .2 lb, 32" x 36"

  • Learn more:

Contact The Manufacturer
  • MFR: Detecto Ships from Manufacturer
  • MPN: 6570
  • Phone: (800) 641-2008
$5,310.00 $4,434.93

+ Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match

Description

The Detecto 6570 Portable Wheelchair Scale with Handrail and Seat (#6570) is a versatile transport scale that include a fold-up chair seat, two-way ramps, wheels, curved handrail columns, guide handles, and weight indicator.

Warranty: 2 Years - Free from Defects in Material and Workmanship.

The Detecto 6570 Portable Wheelchair Scale with Handrail and Seat is a versatile 3-in-1 scale that can weigh patients whether they are wheelchair-bound or need to sit comfortably during the process. Patients can use the curved handrail for balance and adjustment, and it also keeps the display elevated and easy to read. The keypad display is intended to save time and convenience by showing fast results with the ability to remove the wheelchair's weight from the patient's weight reading. It even has the ability to calculate BMI based on the results.

When not in use, this scale can be folded down into a flat form for easy storage, and this includes folding the seat and handrails. The wheels on the bottom allow users to roll it in place, so no need for heavy lifting.

Features

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat Features

  • Weight capacity of 800 lbs for the seat, and 1,000 lbs for the scale platform.
  • Folding seat and handrails make it easy to collapse and store the scale.
  • Can be used with or without wheelchairs (via the seat).

Specifications

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat Specifications

  • Capacity: 1,000 lbs (450 kg).
  • Platform Size: 32 in x 36 in x 2.2 in (81 cm x 91 cm x 5.6 cm).
  • Keypad: 19 key, color-coded, sealed membrane.
  • Connectivity: RS232 serial, USB and optional wired and Wi-Fi Ethernet.
  • LCD Display Dimensions: 3.5 in (W) x 3 in (H) (89 mm x 76 mm) backlit blue LCD.
  • Power: Optional model MV1PWR AC adapter or 6 C batteries (not included).
  • Resolution: 5,000 divisions, max.
  • Operating Temperature: 14° to 104°F (-10° to 40°C).
  • Ramp Size: 36 in (91.4 cm) W x 7.9 in (20.2 cm) L each.
  • Display: 5 digit, 7 segment, 7/8 inch (22.23 mm) high LCD weight digits.
  • Optional: Wi-Fi for EMR/EHR, Welch Allyn connectivity, and AC adapter.
  • UPC Code: 809161302301.
  • Net Weight: 140 lbs (63 kg).
  • Shipping Weight: 150 lbs (68 kg).
  • Maximum Load (Folding Seat): 800 lbs (360 kg).
  • Maximum Load (Platform): 1,000 lbs (450 kg).

Literature

Detecto 6570 Portable Wheelchair Scale with Handrail and Seat Literature

Detecto 6560 and 6570 Portable Wheelchair Scales Brochure

Frequently asked questions

Does the scale include a wheelchair tare function?

Yes, the Detecto 6570 is equipped with an essential Wheelchair Tare function. This feature allows the operator to subtract the weight of the wheelchair, ensuring that only the patient’s accurate body weight is measured. The advanced indicator also provides built-in functionality to calculate Body Mass Index (BMI) directly from the readings.

Does the Detecto 6570 include connectivity options?

Yes, the Detecto 6570 scale provides several connectivity options for data management, including both standard and optional features.

Standard Connections:

  • RS232 serial
  • USB

Optional Connections:

  • Wired Ethernet
  • Wi-Fi Ethernet

These connectivity options facilitate efficient integration, such as linking with EMR/EHR systems.

Does the Detecto 6570 have an easy-to-read display?

Yes, the Detecto 6570 features an advanced indicator with superior visibility, mounted on the curved handrail columns for easy viewing. It includes:

  • Display Type: An elevated, backlit blue LCD display (part of the Med Vue indicator).
  • Dimensions: The screen measures 3.5 in (W) x 3 in (H) (89 mm x 76 mm).
  • Digit Size: The weight digits are large, measuring 7/8 inch (22.23 mm) high, ensuring clear readability of the 5-digit results.
What are the convenient power options?

The Detecto 6570 offers flexible power options to suit various operational needs, supporting both continuous use and portability:

  • It can be powered by an optional MV1PWR AC adapter.
  • Alternatively, it runs on 6 C batteries (batteries are not included), allowing for easy transport and use anywhere in a facility.
Does it have a comfortable folding seat?

Yes, the Detecto 6570 is a versatile 3-in-1 scale that includes an integrated, fold-up chair seat for patients who need to be weighed while sitting. The seat is designed for stability and comfort, featuring a black vinyl-padded backrest and cushion. When using the folding seat, the maximum weight capacity is 800 lbs (360 kg). When not in use, the seat folds down to facilitate compact storage.

Does the advanced indicator calculate BMI?

Yes, the Detecto 6570 includes an advanced Med Vue indicator that supports crucial weighing functions for comprehensive patient assessment, including:

  • BMI Calculation: Automatically computes the Body Mass Index.
  • Wheelchair Tare Function: Allows the operator to accurately zero out the weight of the wheelchair, ensuring precise measurement of the patient only.

This functionality is easily accessible via the highly functional 19-key, color-coded, sealed membrane keypad.

What is the impressive weight capacity of this scale?

The Detecto 6570 scale is designed for high-capacity use, offering impressive maximum loads depending on the configuration:

  • Platform Capacity: The main platform, used for weighing patients in a wheelchair or standing, supports up to 1,000 lbs (450 kg).
  • Folding Seat Capacity: The integrated fold-up chair seat can safely accommodate patients weighing up to 800 lbs (360 kg).
Is the Detecto 6570 easily portable?

Yes, the Detecto 6570 scale is highly portable. It features integrated wheels for easy transport between rooms and can be folded down flat, including the seat and handrails, for compact storage.

What are the platform and ramp dimensions?

The Detecto 6570 is designed with generous dimensions to easily accommodate various wheelchairs and ensure safe, two-way access. The scale’s dimensions are:

  • Platform Dimensions: The large weighing area measures 32 in x 36 in x 2.2 in (81 cm x 91 cm x 5.6 cm).
  • Ramp Dimensions: The two-way ramps are included for easy roll-on/roll-off access. Each ramp measures 36 in wide by 7.9 in long (91.4 cm W x 20.2 cm L).
Is the scale highly versatile (3-in-1)?

Yes, the Detecto 6570 is engineered for maximum clinical flexibility, offering 3-in-1 versatility. It functions effectively as:

  • A Wheelchair Scale: Accommodates patients remaining in their wheelchairs, supported by the high 1,000 lb (450 kg) platform capacity.
  • A Seated Scale: Features an integrated fold-up chair seat with an 800 lb (360 kg) maximum capacity.
  • A Standard Floor Scale: Allows standing patients to be weighed on the large 32 in x 36 in platform.
