Condition:
-
Warranty:
- Weight: 90.0 lb
- State-of-the-art High-Velocity Hot Air (HVHA) technology
- FDA-cleared six minute cycles (unwrapped) and 12 minute cycles (wrapped)
- No steam or water means no prolonged drying cycle and helps ensure a longer product life free of corrosion
- With four removable trays, the chamber can be easily modified to handle all sizes of instrument sets
- Volume: 15 - 50 L
- Technology: Dry Heat
-
Learn more:
-
MFR:
CPAC
Ships from Manufacturer
-
MPN: RH-Pro11
- Phone: (800) 828-6011
Frequently asked questions
What are the sterilization cycle durations?

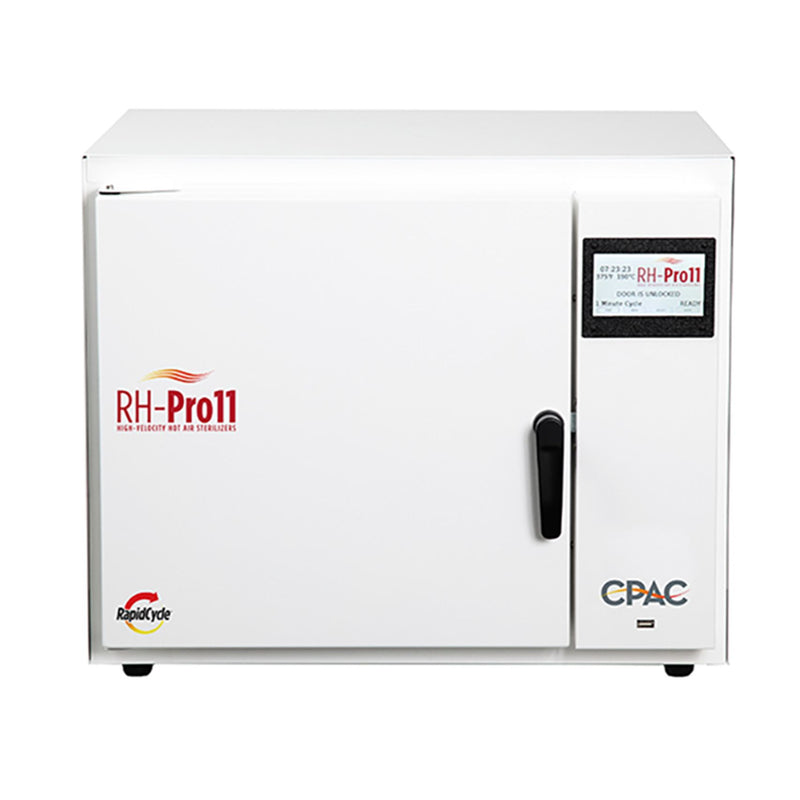

The CPAC RapidHeat RH-Pro11 HVHA Sterilizer offers a range of efficient sterilization cycles:
- High-Temperature Cycles (375°F / 190°C):
- Unwrapped Instruments: 6 minutes
- Hand pieces/Drills: 8 minutes
- Wrapped Instruments: 12 minutes
- Low-Temperature Cycles:
- 320°F: 42 minutes
- 300°F: 58 minutes
- 280°F: 126 minutes
Additionally, there is a 30-minute cycle at 175°F specifically for N95 FFR Mask Decontamination. This unit utilizes High-Velocity Hot Air (HVHA), which is a waterless method, preventing instrument corrosion and extending their lifespan.
Does the sterilizer use waterless technology?
Yes, the CPAC RapidHeat RH-Pro11 is a completely waterless sterilization system. It utilizes High-Velocity Hot Air (HVHA) technology instead of steam or water, which offers significant advantages for instrument care.
Key benefits of this waterless system include:
- Non-Corrosive: Eliminating moisture and chemicals creates a non-corrosive environment that prevents instrument corrosion and prolongs their functional life.
- Efficiency: It requires no drying time and allows for the fastest FDA-cleared turnaround times (as fast as six minutes for unwrapped instruments).
- Energy Savings: The HVHA technology also makes the unit highly energy efficient, using 85% less energy than steam sterilizers.
What is the chamber and tray capacity?
The CPAC RapidHeat RH-Pro11 offers a generous and flexible capacity for sterilization:
- Chamber Capacity: It features a 2,294 cubic inch (10 gal / 38 L) chamber with dimensions of 17.75” (D) x 11” (W) x 11.75” (H).
- Instrument Trays: The sterilizer includes four removable instrument trays, each measuring 15” (D) x 9” (W) x 1” (H). It can accommodate up to six large instrument trays per cycle, or up to 8 small or 4 large cassettes.
What are the fastest sterilization cycles?
The CPAC RapidHeat RH-Pro11 offers some of the fastest FDA-cleared sterilization cycles using High-Velocity Hot Air (HVHA) technology at 375°F (190°C):
- Unwrapped Instruments: 6 minutes
- Wrapped Instruments: 12 minutes
This waterless, chemical-free method enhances instrument longevity by preventing corrosion.
What are the voltage options?
The CPAC RapidHeat RH-Pro11 Sterilizer is available in two voltage configurations to accommodate global power standards. Both options maintain the same performance specifications (1400 Watts during warm-up and 300 Watts during operation).
| Configuration | Voltage Range | Frequency |
|---|---|---|
| Option 1 | 110 - 120 V | 60 Hz |
| Option 2 | 220 - 240 V | 50 Hz |
What are the sterilizer's dimensions?
The CPAC RapidHeat RH-Pro11 HVHA Sterilizer features a spacious and flexible design to accommodate various instrument loads.
- Chamber Dimensions (D x W x H): 17.75” x 11” x 11.75” (433 mm x 279 mm x 299 mm)
- Exterior Dimensions (D x W x H): 22.5” x 22.5” x 19.5” (572 mm x 572 mm x 495 mm)
The internal chamber provides 2294 cubic inches (approximately 38 liters or 10 gallons) of usable space. It comes with four removable instrument trays, each measuring 15” (D) x 9” (W) x 1” (H), and can hold up to six large instrument trays per cycle.
Can this sterilizer be used to decontaminate N95 masks?
Yes, in addition to the standard sterilization cycles, there is a dedicated cycle for N95 FFR mask decontamination that runs at 175 degrees F for 30 minutes.
What are the voltage and energy needs?
The CPAC RapidHeat RH-Pro11 HVHA Sterilizer is highly energy efficient, using 85% less energy than steam sterilizers. It has two electrical configurations:
| Requirement | 110-120 V Model | 220-240 V Model |
|---|---|---|
| Voltage/Frequency | 110 - 120 V, 60 Hz | 220 - 240 V, 50 Hz |
| Warm-up Power | 1400 Watts | 1400 Watts |
| Operating Power | 300 Watts | 300 Watts |
This sterilizer also meets U.S. Electrical Safety Standards.
What components are included with the sterilizer?
The CPAC RapidHeat RH-Pro11 HVHA Sterilizer is shipped complete with essential items for immediate and safe operation:
- Four Removable Instrument Trays: These trays (15” x 9” x 1” each) help you maximize the large 2294 cubic inch chamber capacity, allowing the accommodation of various instrument sets and cassettes.
- One Pair of Tray Removal Safety Gloves: Necessary for safely handling the hot trays after high-temperature sterilization cycles.
- Instructions & Care Card
- User Manual
Who is the ideal customer for this sterilizer?
The CPAC RapidHeat RH-Pro11 HVHA Sterilizer is an ideal solution for a range of professional environments due to its efficiency and advanced features:
- High-Volume Clinical Environments: It’s perfect for settings that require rapid instrument turnaround.
- Dental Offices: Enhances infection control and efficiency for dental practices.
- Microsurgical Centers: Provides precise and quick sterilization, crucial for delicate instruments.
This sterilizer is designed for those prioritizing fast, waterless, and non-corrosive sterilization cycles to optimize instrument readiness and extend product life.
