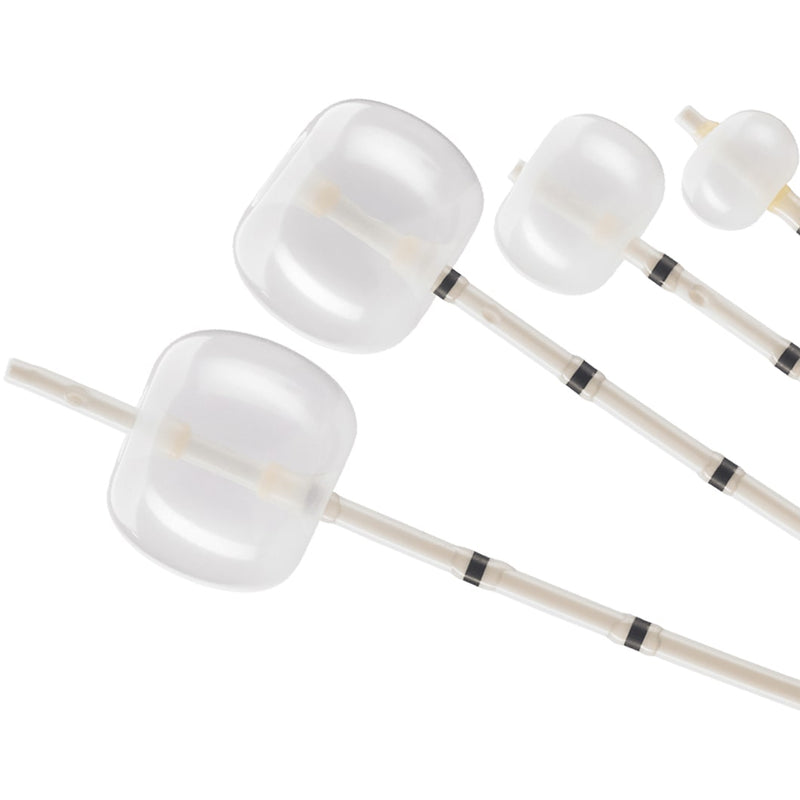

ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon

ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon
Key Features
  • SKU: CNM-007123
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: Not Available
  • Weight: 1.0 lb
  • Color coded guidewire port eliminates confusion
  • Increased injection lumen capacity reduces hand fatigue
  • Pebax catheter shaft enhances pushability
  • Used to widen the bile duct to facilitate stone retrieval

  • Learn more:

Contact The Manufacturer
  • MFR: ConMed
    Ships from Manufacturer
  • MPN: 007123
  • Phone: (866) 426-6633
$155.79

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon is used to widen the bile duct to facilitate stone retrieval.

Note: This product contains latex.

Features

ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon Features

  • Increased injection lumen capacity reduces hand fatigue.
  • Color coded guidewire port eliminates confusion.
  • Three radiopaque 1 cm spaced distal marker bands enable fluoroscopic visualization of balloon position.
  • Pebax catheter shaft enhances pushability.

Specifications

ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon Specifications

  • Catheter Outside Diameter: 7 to 5 F (2.3 to 1.7 mm).
  • Catheter Length: 200 cm.
  • Guidewire Compatibility: 0.035" (0.89 mm).

Configurations

ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon Configurations

Product Number Injection Type Balloon Outside Diameter Balloon Volume
#007123 Above 0.33" (8.5 mm) 0.75cc
#007124 Above 0.45" (11.5 mm) 1.5cc
#007125 Above 0.59" (15 mm) 3.5cc
#007143 Below 0.33" (8.5 mm) 0.75cc
#007144 Below 0.45" (11.5 mm) 1.5cc
#007145 Below 0.59" (15 mm) 3.5cc

Literature

ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon Literature

ConMed Duraglide Stone Removal Balloons Brochure

Frequently asked questions

Does the DURAglide 3 offer enhanced visibility?

Yes, the ConMed DURAglide 3 is designed for enhanced visualization and precision during procedures. It achieves this through:

  • Three radiopaque marker bands located on the distal segment of the catheter.
  • These markers are uniformly spaced 1 cm apart to ensure accurate fluoroscopic visualization of the balloon’s position, critical for precise stone retrieval.
Is the catheter shaft made of durable Pebax?

The ConMed DURAglide 3 features a Pebax catheter shaft. This material significantly enhances the device’s pushability, allowing for more precise and accurate placement during procedures.

Does the DURAglide 3 contain latex?

Yes, it is important to note that the ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon does contain latex.

This crucial material warning must be considered for all patients and clinical staff who may have known sensitivities or allergies to latex.

What standard guidewire size fits?

The ConMed DURAglide 3 is compatible with standard 0.035” (0.89 mm) guidewires.

This compatibility allows for reliable integration into existing procedural setups. For enhanced ease of use and reduced confusion, the device also includes a color-coded guidewire port.

What balloon diameter options are available?

The ConMed DURAglide 3 Triple Lumen Stone Removal Balloon is available in three precise sizes, designed to safely widen the bile duct for stone retrieval. Each size correlates the balloon’s maximum outside diameter (OD) with its corresponding inflation volume:

Balloon Diameter (OD) Inflation Volume
0.33” (8.5 mm) 0.75 cc
0.45” (11.5 mm) 1.5 cc
0.59” (15 mm) 3.5 cc

Furthermore, all diameters are available in configurations with injection positioned either “Above” or “Below” the balloon, providing necessary flexibility for various procedural approaches.

Does the design reduce hand fatigue?

Yes, the ConMed DURAglide 3 is designed with physician comfort in mind. It includes an increased injection lumen capacity specifically engineered to reduce hand fatigue during operation, ensuring greater control and a more streamlined procedural environment.

What is the functional catheter length?

The ConMed DURAglide 3 - Triple Lumen Stone Removal Balloon features a catheter length of 200 cm.

This standardized length is optimized to provide the necessary reach and flexibility required for seamless navigation and precise positioning during biliary tract stone retrieval and dilation procedures.

What balloon sizes are available?

The ConMed DURAglide 3 Triple Lumen Stone Removal Balloon is offered in three distinct sizes, designed for efficient bile duct dilation and stone retrieval:

Balloon Outer Diameter (OD) Inflation Volume
0.33” (8.5 mm) 0.75cc
0.45” (11.5 mm) 1.5cc
0.59” (15 mm) 3.5cc

Each size also offers variations based on the positioning of the injection port, which can be configured as either Above or Below the balloon inflation point.

What injection configurations are available?

The ConMed DURAglide 3 offers six distinct configurations by combining three different balloon sizes with two specialized injection port positions: Above or Below the balloon reference point. This allows for precise device selection based on procedural needs.

Available configurations are:

Injection Position Balloon Outside Diameter (OD) Balloon Volume
Above 0.33” (8.5 mm) 0.75cc
Above 0.45” (11.5 mm) 1.5cc
Above 0.59” (15 mm) 3.5cc
Below 0.33” (8.5 mm) 0.75cc
Below 0.45” (11.5 mm) 1.5cc
Below 0.59” (15 mm) 3.5cc
Does it have a convenient color-coded guidewire port?

Yes, the ConMed DURAglide 3 features a color-coded guidewire port. This design helps to eliminate confusion and ensures proper usage, making procedures more efficient.
