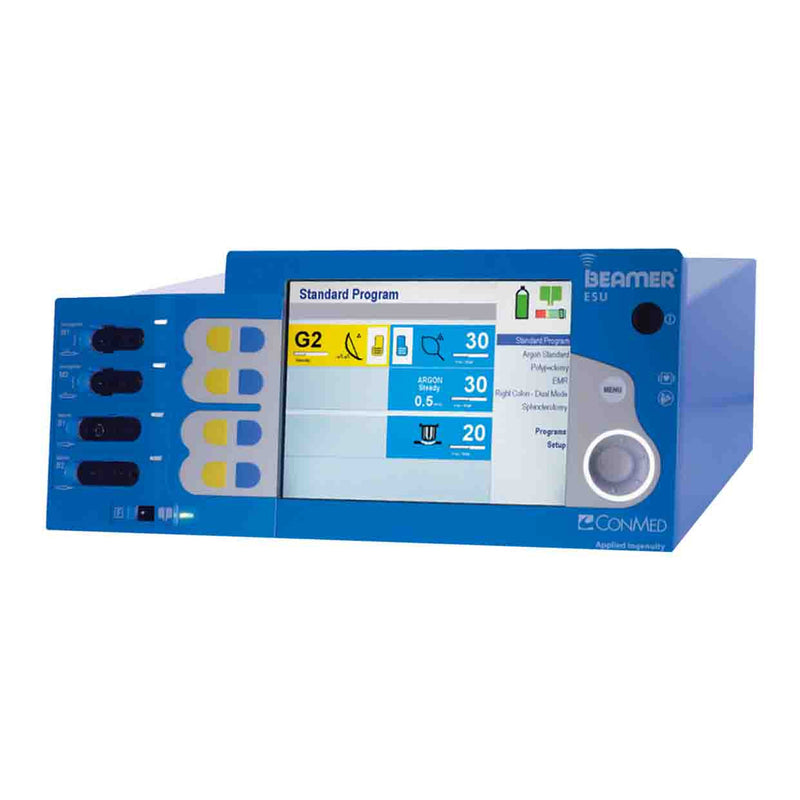

ConMed Beamer CE200 Endoscopic Electrosurgical Unit

The ConMed Beamer CE200 is a highly versatile unit that serves as a single platform for multiple endoscopic therapies. It comes standard with five distinct preset modes specifically optimized for various procedures:

• Polyp Cut I: Pulsed cut with minimal coagulation.
• Polyp Cut II: Pulsed cut with strong coagulation.
• Papilla Cut I: Pulse cut with no extra coagulation.
• Papilla Cut II: Pulse cut with minimal coagulation.
• ESD: Pulse cut optimized for submucosal dissection.

For enhanced flexibility, the unit also allows users to define and store up to 99 custom programs.

The Automatic Cutting Effect (ACE) is an advanced tissue management feature that ensures superior and consistent performance during procedures. It benefits the user by:

• Continuous Monitoring: ACE continuously monitors electrical sparks around the active electrode.
• Automatic Adjustment: It automatically and dynamically adjusts the voltage, spark characteristics, and power delivery in real-time.

This technology delivers efficient and precise cutting, maintaining a consistently high quality across various endoscopic therapies.

The ConMed Beamer CE200 offers extensive memory for customized procedures. You can store up to 99 available positions for user-defined programs, allowing practitioners to save specific parameters for a wide variety of interventions. These storage slots complement the five standard preset modes (Polyp Cut I & II, Papilla Cut I & II, and ESD).

The ConMed Beamer CE200 is designed for versatility, utilizing universal power requirements (100 - 240 V +/- 10%). The unit operates on nominal frequencies of 50 / 60 Hz. The maximum power input is 600 VA, with a max current draw of 6.3 A.

The Beamer CE200 is equipped with five specialized preset modes optimized for diverse endoscopic interventions, ensuring precise control over cutting and coagulation effects:

• Polyp Cut I: Pulsed cut with minimal coagulation.
• Polyp Cut II: Pulsed cut with strong coagulation.
• Papilla Cut I: Pulse cut with no extra coagulation.
• Papilla Cut II: Pulse cut with minimal coagulation.
• ESD (Endoscopic Submucosal Dissection): A specialized pulse cut designed for submucosal dissection.

In addition to these presets, the unit provides extensive customization with 99 available storage positions for users to define and save their custom electrosurgical programs.

The ConMed Beamer CE200 holds several key regulatory approvals and classifications, ensuring its safety and quality:

• Mark of Conformity: It carries the CE 0297 mark, indicating compliance with the 93/42/EEC directive.
• MDD Classification: It is classified as IIb according to the Medical Device Directive (MDD).
• Applied Part Type: The unit features an applied part classified as CF, which is defibrillation-proof.

Yes, the ConMed Beamer CE200 uses an applied part rated as type CF. This classification ensures the part is defibrillation-proof, maximizing patient safety during electrosurgical procedures.

Yes, the ConMed Beamer CE200 provides substantial maximum power outputs for its endoscopic therapies:

• Maximum Cutting Power (Pulse): 350 watts
• Maximum Coagulation Power: 120 watts

The ConMed Beamer CE200 Endoscopic Electrosurgical Unit is designed to be relatively compact and robust. Its physical specifications are as follows:<ul><li>Unit Weight: 18.3 lb (8.3 kg)</li><li>Unit Dimensions (H x W x D): 7.2” x 15.4” x 17.1” (182 mm x 390 mm x 435 mm)</li></ul>Please note that the Shipping Weight for the unit is 30 lb (13.5 kg).

Yes, the ConMed Beamer CE200 features intuitive backlit rotary controls that ensure comfortable navigation of menus and parameters. Its clear display further enhances ease of use, allowing for efficient operation during endoscopic therapies.
