Description

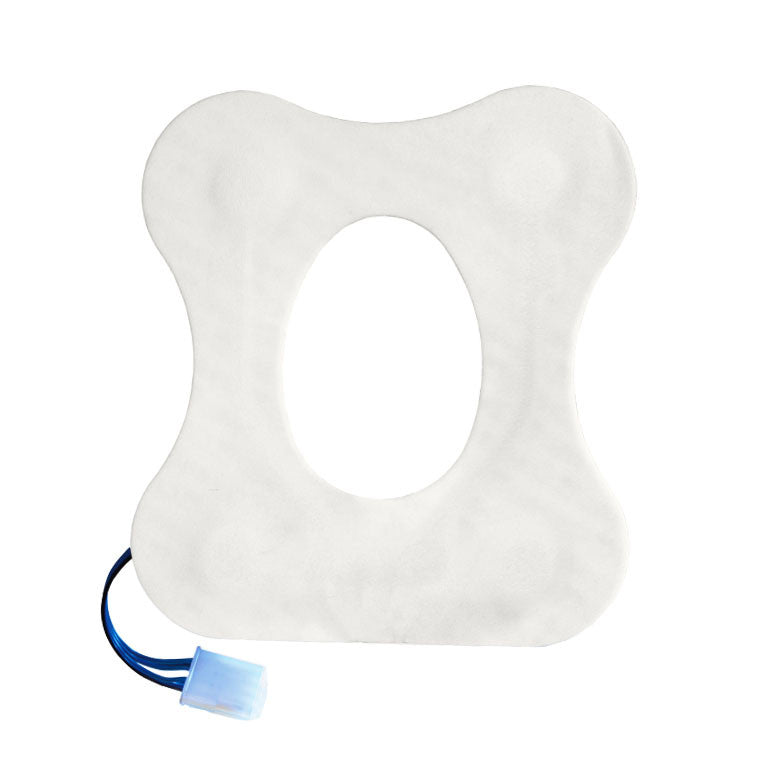

The ConMed Backpad Electrode (50 / Case) provides a unique one-piece disposable monitoring system that minimizes patient set-up time, prevents leadwires from tangling, and reduces the risk of cross contamination or hospital acquired infections.

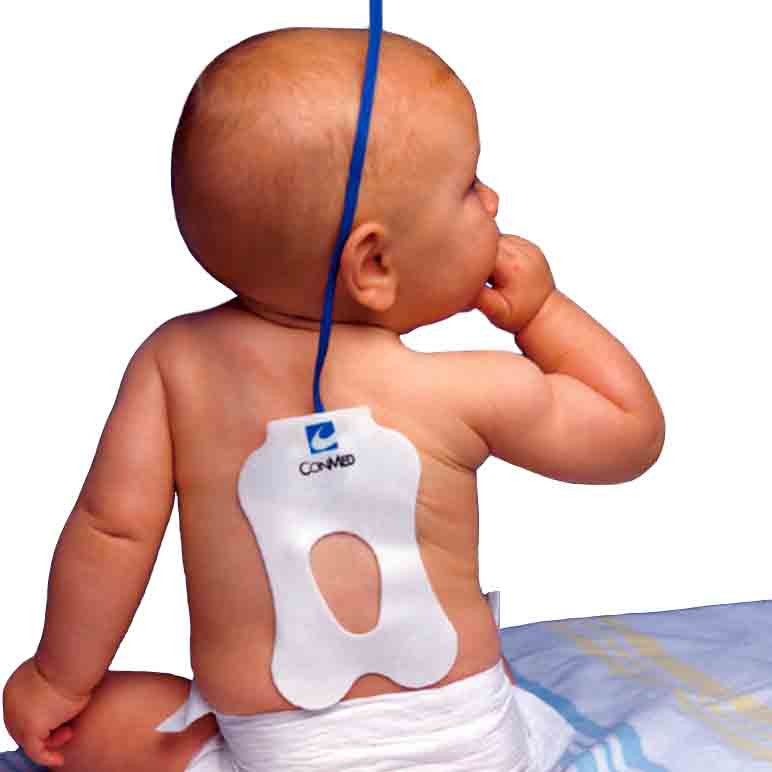

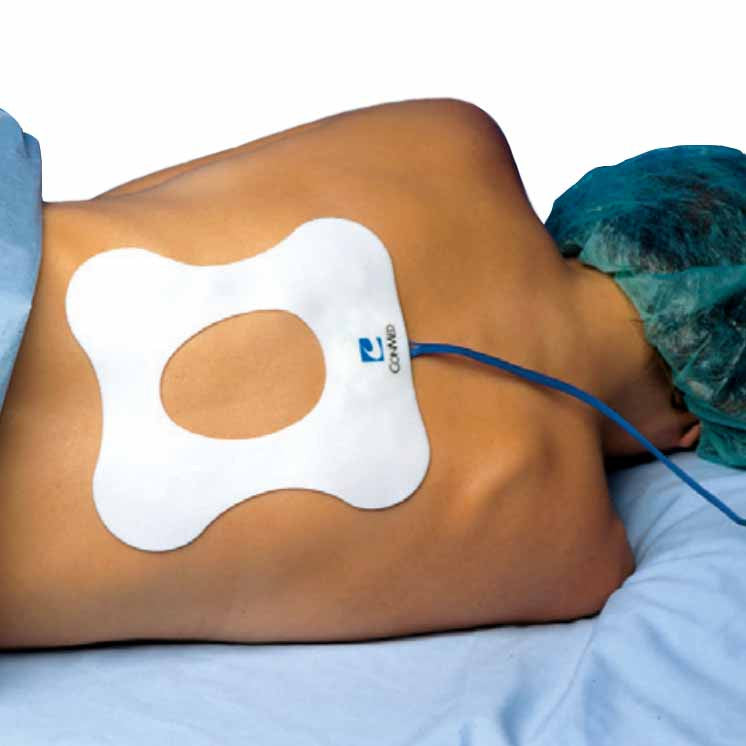

It is designed for placement on the patient's back for maximum exposure to the chest area. Application is a simple, one step process of placing the pre-gelled backpad onto the patient's skin.

Features

ConMed Backpad Electrode Features

  • Uses a dense, low profile foam substrate that conforms to the patient's skin while reducing fluid absorption. This foam substrate is coated with an acrylic adhesive that keeps the ECG Backpad in place, even when it is exposed to O.R. prep solutions.
  • Embedded within the foam, are four radiolucent electrode sensors (representing the four limb leads) coated with silver/silver chloride for maximum signal performance. The sensors are covered with a conductive adhesive hydrogel to ensure quick signal retention.
  • Pre-attached to the electrode array (to ease the application), is a low profile, 28" (71 cm) bonded leadwire system.
  • The leadwire system terminates to a durable, one-piece molex style connector (that is compatible only with ConMed ECG Backpad Cables.
  • Specialty adapters available for five lead monitoring and ease in conversion to R series safety leadwires.
  • Not made with natural rubber latex to protect against possible latex sensitivity issues.

Specifications

ConMed Backpad Electrode Specifications

Parameter Adult Backpad (#01-3130) Infant Backpad (#01-4130)
Basepad Closed cell polyethylene foam Closed cell polyethylene foam
Basepad Size 6.5" x 7.5" (16.5 cm x 19 cm) 3.5" x 6.0" (8.9 cm x 16.24 cm)
Gel 5% KCI 5% KCI
Flex Circuit Silver/Silver Chloride (Ag/AgCl) Silver/Silver Chloride (Ag/AgCl)
Adhesion Medical grade acrylic adhesive Medical grade acrylic adhesive
Carrier Silicone coated paper Silicone coated paper
Shelf Life 24 months from date of manufacture 24 months from date of manufacture
Electrical DC Offset 0.0 mV 0.6 mV
AC Impedance 85 104
Defib Recovery 10.9 mV 12.5 mV
Recovery Rate 0.3 mV / second 0.2 mV / second
Shipping Dimensions 19" x 12" x 9" (48.3 cm x 30.5 cm x 22.9 cm) 14" x 9" x 9" (35.6 cm x 22.9 cm x 22.9 cm)
Shipping Weight 5 lb (2.3 kg) 3.4 lb (1.5 kg)
