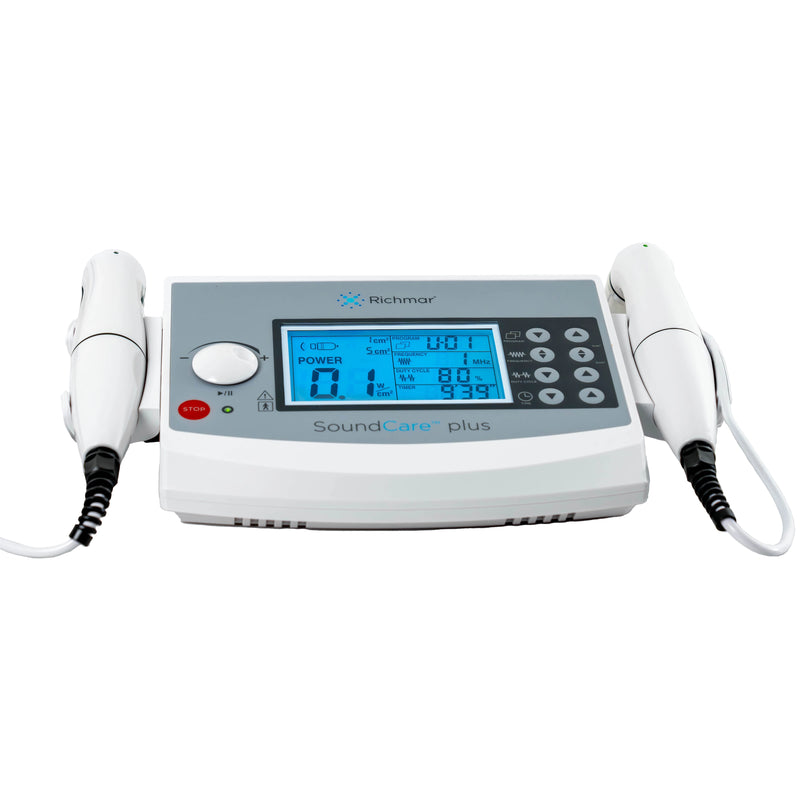

Compass Health SoundCare Plus Professional Ultrasound Device

Compass Health SoundCare Plus Professional Ultrasound Device
Compass Health SoundCare Plus Professional Ultrasound Device - Side
Compass Health SoundCare Plus Professional Ultrasound Device
Compass Health SoundCare Plus Professional Ultrasound Device - Side
Key Features
  • SKU: CPH-DQ9275
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 7.0 lb
  • Dual sound heads for targeted therapy
  • Quick-switch button for seamless applicator change
  • Pulsed and continuous modes with user-defined presets
  • Ergonomic, portable design for easy professional use

  • Learn more:

Contact The Manufacturer
$1,026.34

+ Free Shipping

Special Order Item

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Compass Health SoundCare Plus Professional Ultrasound Device (#DQ9275) includes two sound heads (1 cm2 and 5 cm2) for more targeted therapy.

Warranty: 2 Years.

The Compass Health SoundCare Plus Professional Ultrasound Device is a clinician-designed therapeutic ultrasound system built for effective treatment of both chronic and acute muscular pain. Engineered for versatility and ease of use, it comes equipped with two ergonomically designed applicators, 1 cm2 and 5 cm2, that can be quickly interchanged at the touch of a single button. This innovative dual-head system allows seamless switching between treatment areas without interruption.

Operating at both 1 MHz and 3 MHz frequencies, the SoundCare Plus provides deep and superficial tissue therapy options to suit various clinical needs. With 20 user-defined presets and variable duty cycle outputs, practitioners can deliver customized treatments using pulsed or continuous ultrasound modes. Compact and portable, the SoundCare Plus is ideal for both in-clinic and on-the-go applications, offering fast setup and intuitive operation. Combining precision, flexibility, and ergonomic design, it delivers reliable performance for professional therapeutic use.

Features

Compass Health SoundCare Plus Professional Ultrasound Device Features

  • Designed for the treatment of chronic and acute muscular pain.
  • Allows switching between dual sound heads with the push of a single button.
  • Fully functional 1 MHz and 3 MHz frequencies for deep and superficial therapy.
  • 10 user-defined presets with pulsed and continuous therapy modes.
  • Ergonomic handle design for comfortable use.

Specifications

Compass Health SoundCare Plus Professional Ultrasound Device Specifications

  • Acoustic Frequency: 1 MHz +/- 10%, 3 MHz +/- 10%.
  • Output Power:
    • 0.5 - 10 W +/- 20%, when duty factor is greater than or equal to 80% for 5 cm2.
    • 0.5 - 15 W +/- 20%, when duty factor is less than or equal to 70% for 5 cm2.
    • 0.1 - 2 W +/- 20%, when duty factor is greater than or equal to 80% for 1 cm2.
    • 0.5 - 3 W +/- 20%, when duty factor is less than or equal to 70% for 1 cm2.
  • Pulse Repetition Rate: 1-- Hz +/- 10%.
  • Duty Factor: 10% - 100%, Stepping 10%.
  • Timer: Max 30 minutes.
  • Effective Radiating Area: 5 cm 2 +/- 20%; 1 cm2 +/- 20%.
  • Actual Intensity:
    • 3 w/cm2 +/- 20% (1 MHz).
    • 3 w/cm2 +/- 20% (3 MHz).
  • Raw (Max): 5.
  • Beam Type: Collimated.
  • Material of Applicator: Aluminum.
  • Waterproof Grade: IPX7 only for treatment head.

Literature

Compass Health SoundCare Plus Professional Ultrasound Device Literature

Richmar SoundCare Plus Professional Ultrasound Device Brochure

Frequently asked questions

Does the device allow instant sound head switching?

Yes, the Compass Health SoundCare Plus features an innovative seamless applicator switching system. This allows practitioners to:

  • Instantly transition between the included 1 cm² and 5 cm² sound heads using a single button press.
  • Maximize efficiency by quickly targeting different treatment areas without interruption.
  • Utilize the ergonomically designed applicators for comfort during therapy.
Does the system include two professional sound heads?

Yes, the Compass Health SoundCare Plus is designed with a versatile dual-head applicator system for targeted deep and superficial tissue therapy.

It includes two ergonomically designed applicators:

  • 1 cm² Sound Head (ERA): Ideal for smaller, more focused treatment areas.
  • 5 cm² Sound Head (ERA): Suitable for treating larger muscle groups and broader areas.

A key feature is the ability to switch instantly between these two heads via a single button operation, ensuring efficient and uninterrupted therapy sessions.

Does this device support dual 1 MHz and 3 MHz frequencies?

Yes, the SoundCare Plus features dual frequency operation at 1 MHz and 3 MHz, ensuring highly versatile and targeted therapeutic ultrasound.

This capability is essential for addressing different tissue depths:

  • 1 MHz: Used for deeper penetration, making it ideal for treating chronic muscular pain and underlying tissues.
  • 3 MHz: Used for superficial therapy, highly effective for managing acute conditions and tissues closer to the skin surface.

This frequency versatility, combined with the instantly switchable 1 cm² and 5 cm² sound heads, allows clinicians to tailor treatment precisely for various anatomical areas.

Does the device include both 1cm and 5cm wands?

Yes, the UltraSound Device configuration includes both the 1cm and 5cm wands.

This dual sound head capability is a key feature, allowing for versatile treatment of chronic and acute muscular pain across various tissue depths and body areas.

Does it treat chronic and acute muscular pain?

Yes, the Compass Health Soundcare Plus Professional Ultrasound Device is specifically engineered for the therapeutic treatment of both chronic and acute muscular pain conditions.

This professional-grade device is designed to deliver non-invasive therapeutic energy, which helps with deep tissue heating and effective pain management.

Can I save my most frequently used treatment settings?

Yes, the device is designed for clinical efficiency and includes 20 user-defined presets. This allows you to quickly access your preferred protocols without needing to manually reconfigure settings for each session.

Are the treatment heads safe to clean?

Yes, the sound heads feature an IPX7 waterproof rating. This ensures they are well-protected and safe to clean following your standard clinical disinfection protocols between patient treatments.

Is the SoundCare Plus a professional ultrasound device?

Yes, the SoundCare Plus is a clinician-designed, professional therapeutic ultrasound device intended for treating acute and chronic muscular pain. It is engineered with features that ensure precision and versatility for clinical applications:

  • Dual Frequency Operation: Provides fully functional 1 MHz (for deep tissue) and 3 MHz (for superficial tissue) options.
  • Interchangeable Dual Heads: Includes 1 cm² and 5 cm² sound heads that switch instantly, allowing targeted therapy for different body areas.
  • Advanced Customization: Features up to 20 user-defined presets and supports both pulsed and continuous modes with variable duty cycles for precise protocol application.
  • Durability: The aluminum treatment head has an IPX7 waterproof grade rating, ensuring reliability and compliance in a professional setting.
Does it come with different frequency options?

Yes, the complete device configuration includes 1MHz & 3MHz frequencies for varied treatment needs.

Does the device have an intuitive digital interface?

Yes, the SoundCare Plus is designed with a professional, intuitive interface. It features an illuminated, blue-tinted digital LCD screen that clearly displays all essential operational parameters at a glance. Practitioners can quickly view and adjust critical settings such as:

  • Output Power
  • Acoustic Frequency (MHz)
  • Duty Cycle (%)
  • Treatment Timer settings
