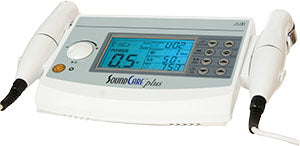

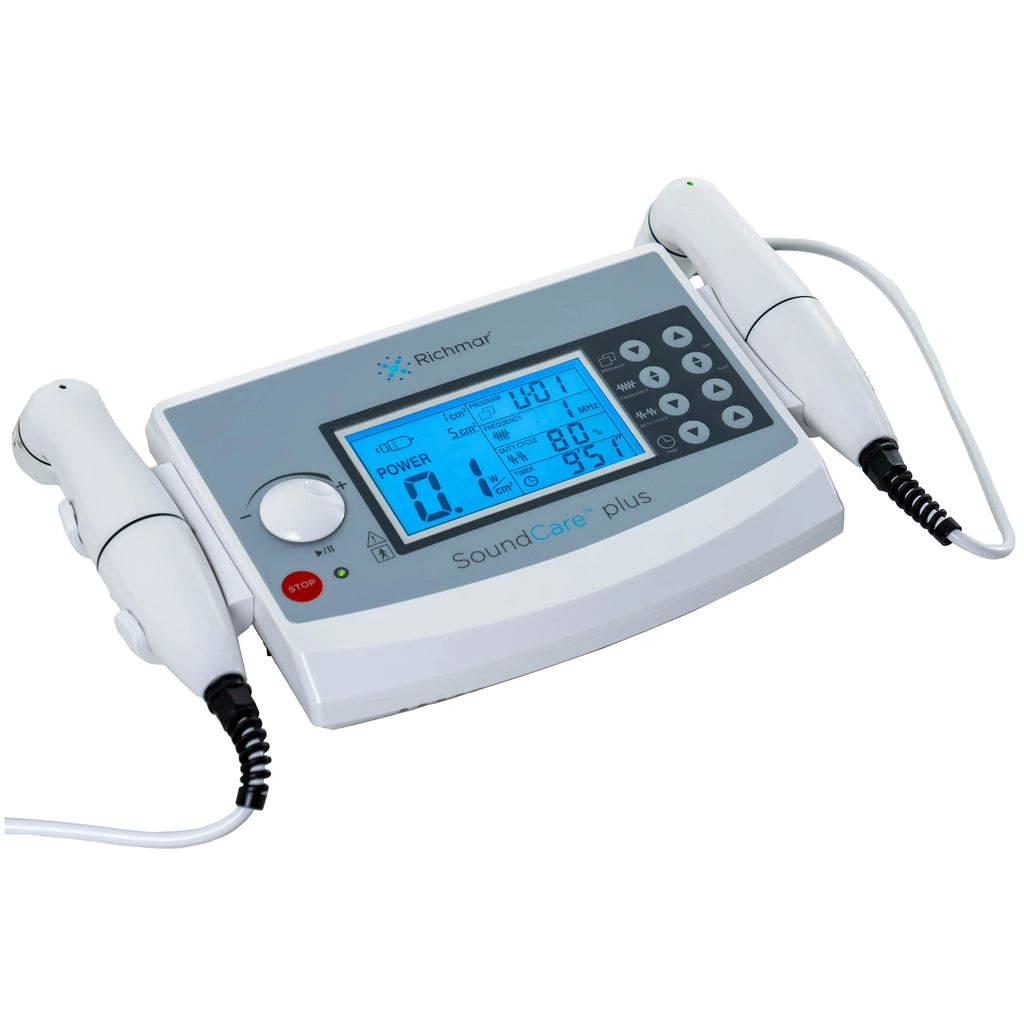

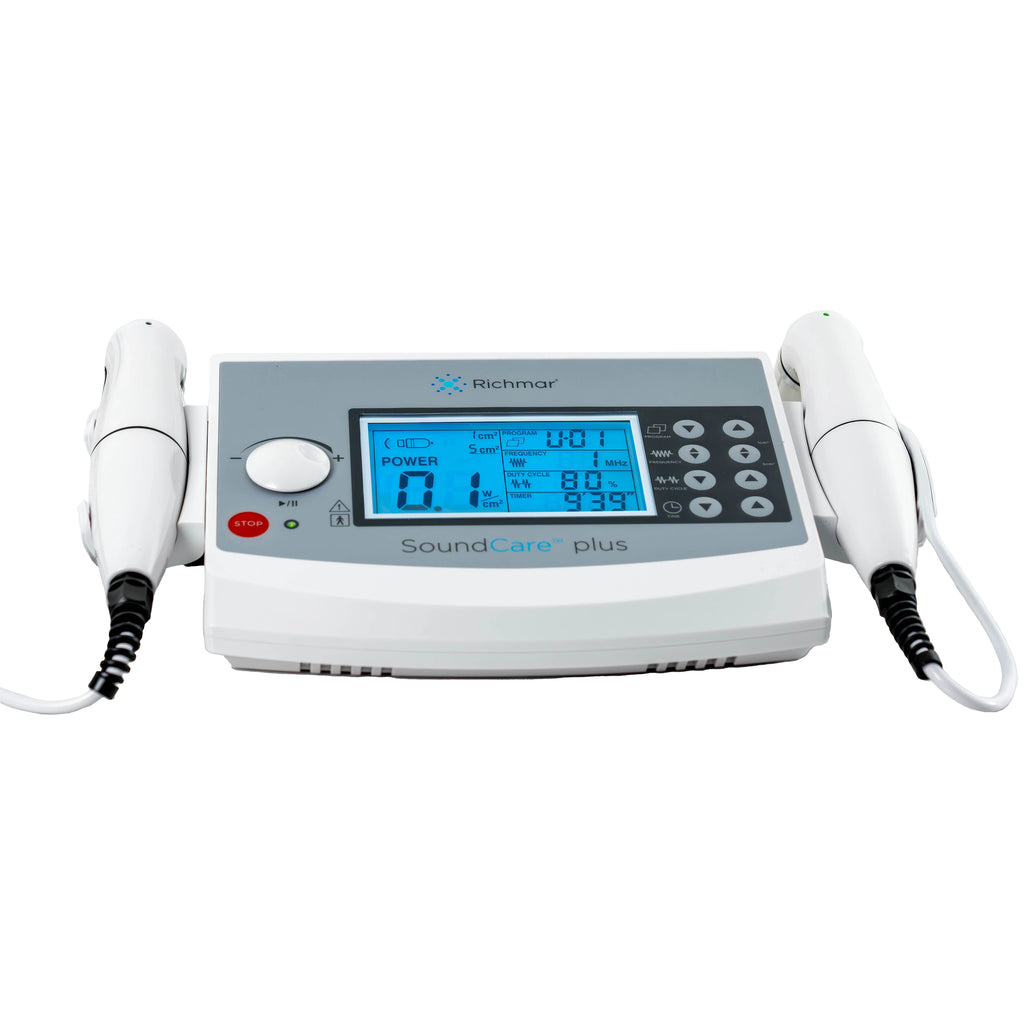

Compass Health SoundCare Plus Professional Ultrasound Device

Compass Health SoundCare Plus Professional Ultrasound Device
Compass Health SoundCare Plus Professional Ultrasound Device - Side
Compass Health SoundCare Plus Professional Ultrasound Device
Compass Health SoundCare Plus Professional Ultrasound Device - Side
Key Features
  • SKU: CPH-DQ9275
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 7.0 lb
  • Dual sound heads for targeted therapy
  • Quick-switch button for seamless applicator change
  • Pulsed and continuous modes with user-defined presets
  • Ergonomic, portable design for easy professional use

  • Learn more:

Contact The Manufacturer
  • MFR: Compass Health Ships from MFI Medical
  • MPN: DQ9275
  • Phone: (440) 572-1962
$1,179.29
Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Compass Health SoundCare Plus Professional Ultrasound Device (#DQ9275) includes two sound heads (1 cm2 and 5 cm2) for more targeted therapy.

Warranty: 2 Years.

The Compass Health SoundCare Plus Professional Ultrasound Device is a clinician-designed therapeutic ultrasound system built for effective treatment of both chronic and acute muscular pain. Engineered for versatility and ease of use, it comes equipped with two ergonomically designed applicators, 1 cm2 and 5 cm2, that can be quickly interchanged at the touch of a single button. This innovative dual-head system allows seamless switching between treatment areas without interruption.

Operating at both 1 MHz and 3 MHz frequencies, the SoundCare Plus provides deep and superficial tissue therapy options to suit various clinical needs. With 20 user-defined presets and variable duty cycle outputs, practitioners can deliver customized treatments using pulsed or continuous ultrasound modes. Compact and portable, the SoundCare Plus is ideal for both in-clinic and on-the-go applications, offering fast setup and intuitive operation. Combining precision, flexibility, and ergonomic design, it delivers reliable performance for professional therapeutic use.

Features

Compass Health SoundCare Plus Professional Ultrasound Device Features

  • Designed for the treatment of chronic and acute muscular pain.
  • Allows switching between dual sound heads with the push of a single button.
  • Fully functional 1 MHz and 3 MHz frequencies for deep and superficial therapy.
  • 10 user-defined presets with pulsed and continuous therapy modes.
  • Ergonomic handle design for comfortable use.

Specifications

Compass Health SoundCare Plus Professional Ultrasound Device Specifications

  • Acoustic Frequency: 1 MHz +/- 10%, 3 MHz +/- 10%.
  • Output Power:
    • 0.5 - 10 W +/- 20%, when duty factor is greater than or equal to 80% for 5 cm2.
    • 0.5 - 15 W +/- 20%, when duty factor is less than or equal to 70% for 5 cm2.
    • 0.1 - 2 W +/- 20%, when duty factor is greater than or equal to 80% for 1 cm2.
    • 0.5 - 3 W +/- 20%, when duty factor is less than or equal to 70% for 1 cm2.
  • Pulse Repetition Rate: 1-- Hz +/- 10%.
  • Duty Factor: 10% - 100%, Stepping 10%.
  • Timer: Max 30 minutes.
  • Effective Radiating Area: 5 cm 2 +/- 20%; 1 cm2 +/- 20%.
  • Actual Intensity:
    • 3 w/cm2 +/- 20% (1 MHz).
    • 3 w/cm2 +/- 20% (3 MHz).
  • Raw (Max): 5.
  • Beam Type: Collimated.
  • Material of Applicator: Aluminum.
  • Waterproof Grade: IPX7 only for treatment head.

Literature

Compass Health SoundCare Plus Professional Ultrasound Device Literature

Richmar SoundCare Plus Professional Ultrasound Device Brochure
