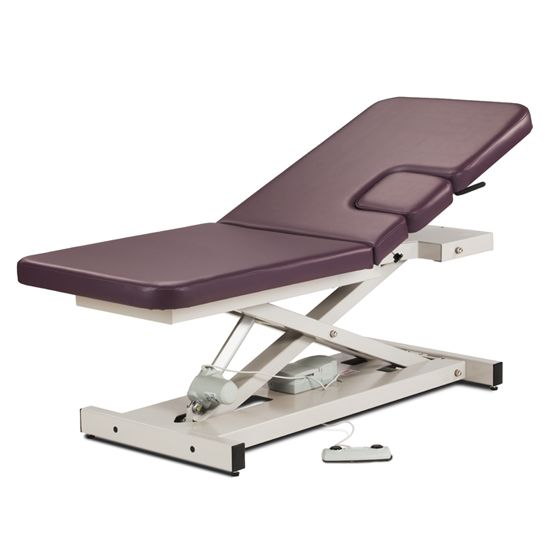

Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest

Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest
Key Features
  • SKU: CLI-85200-3SB
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 340.0 lb
  • Features flat top with 10 x 10 inch hinged imaging window section with metal slide latch
  • Pneumatic backrest is adjustable from either side and can be raised to 80 degrees from a flat position
  • Electric power height adjustment with foot control
  • Ultra-strong, uni-frame base and top construction

  • Learn more:

Contact The Manufacturer
  • MFR: Clinton
    Ships from Manufacturer
  • MPN: 85200-3SB
  • Phone: (800) 441-9131
$3,577.46 $2,384.73

+Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest is made in the USA and is available in a variety of upholstery colors.

Warranty: 5 Years - Limited Defects in Materials, Workmanship, or Design.

Features

Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest Features

  • Features flat top with 10 x 10 inch hinged imaging window section with metal slide latch.
  • Pneumatic backrest is adjustable from either side and can be raised to 80 degrees from a flat position.
  • Electric power height adjustment with foot control.
  • Ultra-strong, uni-frame base and top construction.
  • Heavy-duty, all welded, lift mechanism.
  • Durable gray powder-coated steel frame.
  • Self-lubricating pivot points.
  • Smooth 110 volt electric height adjustment.
  • Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1.
  • Hands-free low voltage foot control.
  • Easy service, self contained, electrical components.
  • Rounded corner, upholstered top.
  • 2" (5 cm) ultra-firm padding.
  • Low height may help achieve ADA tax credit.
  • Customizable with options.
  • Made in the USA by Clinton Industries.
  • 450 lb load capacity under normal use.

Specifications

Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest Specifications

#85200:

  • Length: 72 in.
  • Width: 27 in.
  • Height Range: 18-35 in.

#85200 (Backrest):

  • Length: 38 in.
  • Width: 27 in.

Accessories

Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest Accessories

The Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest is commonly purchased with the following:

  • #030: Paper Dispenser - Accommodates paper rolls from 18-21 in.
  • #034: Paper Dispenser/Cutter Combo - Paper dispenser and paper cutter ordered as one option.
  • #040: Paper Cutter - Clear plastic with elastic straps and buckle.
  • #080: Safety Strap - 2 x 89.5 inch strap is secured with quick hook and loop fasteners (2 safety straps per set).
  • #082: Safety Rails - Includes plunger height adjustment, 3-height position, sold in pairs.
  • #084: Hand-Held Height Control - Alternative to foot control, stores easily under to when not in use.
  • #087: Locking Casters - 3 inch heavy duty, rubber wheel, easy-roll casters. (Note: Addition of casters adds 6" to the overall width of the table.)

Literature

Clinton Open Base Power Imaging Table with Window Drop and Adjustable Backrest Literature

Clinton Power Tables Catalog

Clinton Upholstery Color Chart

Frequently asked questions

What is the maximum weight capacity?

The Clinton Open Base Power Imaging Table is built with heavy-duty construction for exceptional durability and stability.

It features an ultra-strong, uni-frame base and top construction with a heavy-duty, all-welded lift mechanism.

The table is rated to support a maximum load capacity of 450 lb under normal use.

What size is the integrated imaging window?

The integrated imaging window measures 10 x 10 inches. This specialized section is hinged and secured by a metal slide latch, providing convenient and stable access for fluoroscopy or X-ray procedures directly on the treatment table.

What is the adjustable electric height range?

The Clinton Power Imaging Table features smooth, reliable electric height adjustment, controlled by a hands-free, low-voltage foot control.

Key specifications for height adjustment:

  • Height Range: The table adjusts dynamically from a minimum height of 18 inches up to a maximum height of 35 inches.
  • Operation: Height adjustment is powered by a smooth 110-volt electric motor.
  • Benefit: The low minimum height of 18 inches can assist facilities in achieving the ADA tax credit.
Is the height adjustment hands-free?

Yes, the height adjustment on the Clinton Power Imaging Table is controlled using a hands-free, low-voltage foot control.

This design ensures sterile and convenient operation, allowing the clinician to easily adjust the table’s height using the smooth 110-volt electric motor.

Key specifications for the electric lift system include:

  • Height Range: Adjusts from a low of 18 inches up to 35 inches.
  • Load Capacity: Features heavy-duty construction supporting up to 450 lb under normal use.
  • ADA Compliance Potential: The low minimum height setting (18 inches) may assist facilities in achieving the ADA tax credit.
What is the backrest's maximum angle adjustment?

The backrest offers versatile patient positioning and utilizes a pneumatic adjustment system. It can be raised up to 80 degrees from a flat position and is conveniently adjustable from either side of the table.

Does the electric system meet rigorous safety standards?

Yes, the electrical system of the Clinton Open Base Power Imaging Table is engineered for high safety and regulatory compliance in clinical environments. The power supply and motor adhere to demanding standards, including:

  • UL 60601-1
  • CAN/CSA C22.2 601.1

For operational convenience, the 110-volt electric height adjustment is controlled using a low voltage, hands-free foot control. Additionally, the components are self-contained for easy service.

Is the durable frame made of steel?

Yes, the frame is built for heavy-duty use. It features an ultra-strong, uni-frame base and top construction, supported by a heavy-duty, all-welded lift mechanism. The material used is durable gray powder-coated steel.

Does the table use quality, firm padding?

The Clinton Open Base Power Imaging Table is designed with durability and patient comfort in mind, featuring:

  • 2 inches (5 cm) of ultra-firm padding.
  • An upholstered top with rounded corners for added safety.
What helpful optional accessories are available?

The Clinton Open Base Power Imaging Table can be customized with several optional accessories (sold separately) designed to enhance patient safety, workflow efficiency, and mobility.

Key Optional Accessories include:

  • Safety and Patient Positioning:
    • Safety Rails (#082): Provide lateral protection and patient support.
    • Safety Strap (#080): Used for securely holding the patient during procedures.
  • Control and Mobility:
    • Hand-Held Height Control (#084): Provides an alternative method to the standard foot control for electric height adjustment.
    • Locking Casters (#087): Allows the heavy-duty table to be easily relocated and securely stabilized.
  • Paper Management:
    • Paper Dispensers (#030, #034) and Paper Cutter (#040): Essential for maintaining hygiene and protecting the upholstered surface.
Is this imaging table made in the USA?

Yes, the Clinton Open Base Power Imaging Table is proudly Made in the USA, ensuring high-quality manufacturing standards and materials.
