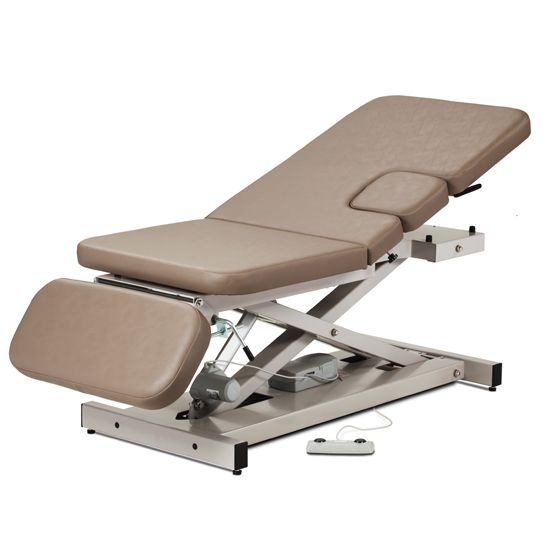

Clinton Open Base Power Imaging Table with 3 Section Top

The Clinton Open Base Power Imaging Table with 3 Section Top is made in the USA and is available in a variety of upholstery colors.

Warranty: 5 Years - Limited Defects in Materials, Workmanship, or Design.

Clinton Open Base Power Imaging Table with 3 Section Top Features

• Features flat top with 10 x 10 inch hinged imaging window section with metal slide latch.
• Pneumatic backrest is adjustable from either side and can be raised to 80 degrees from a flat position.
• Electric power height adjustment with foot control.
• Footrest is adjustable from either side and raises 80 degrees from flat.
• Ultra-strong, uni-frame base and top construction.
• Heavy-duty, all welded, lift mechanism.
• Durable gray powder-coated steel frame.
• Self-lubricating pivot points.
• Smooth 110 volt electric height adjustment.
• Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1.
• Hands-free low voltage foot control.
• Easy service, self contained, electrical components.
• Rounded corner, upholstered top.
• 2" (5 cm) ultra-firm padding.
• Low height may help achieve ADA tax credit.
• Customizable with options.
• Made in the USA by Clinton Industries.
• 450 lb load capacity under normal use.

Clinton Open Base Power Imaging Table with 3 Section Top Specifications

#85300:

• Length: 76 in.
• Width: 27 in.
• Height Range: 18-35 in.

#85300 (Backrest):

• Length: 38 in.
• Width: 27 in.

#85300 (Footrest):

• Length: 13 in.
• Width: 27 in.

Clinton Open Base Power Imaging Table with 3 Section Top Accessories

The Clinton Open Base Power Imaging Table with 3 Section Top is commonly purchased with the following:

• #030: Paper Dispenser - Accommodates paper rolls from 18-21 in.
• #034: Paper Dispenser/Cutter Combo - Paper dispenser and paper cutter ordered as one option.
• #035: Armboard/Power Tables - Padded, ratchet style, rotating armboard. Rotates 180 degrees, interchangeable on right or left side.
• #040: Paper Cutter - Clear plastic with elastic straps and buckle.
• #080: Safety Strap - 2 x 89.5 inch strap is secured with quick hook and loop fasteners (2 safety straps per set).
• #082: Safety Rails - Includes plunger height adjustment, 3-height position, sold in pairs.
• #083: 2-Hook IV Pole and Mounting Bracket - 2-hook top with chrome pole with height adjustment, removable bracket mounts to either side of the head end.
• #083:4-Hook IV Pole and Mounting Bracket - 4-hook top with chrome pole with height adjustment, removable bracket mounts to either side of the head end.
• #084: Hand-Held Height Control - Alternative to foot control, stores easily under to when not in use.
• #087: Locking Casters - 3 inch heavy duty, rubber wheel, easy-roll casters. (Note: Addition of casters adds 6" to the overall width of the table.)

Clinton Open Base Power Imaging Table with 3 Section Top Literature

Clinton Power Tables Catalog

Clinton Upholstery Color Chart
