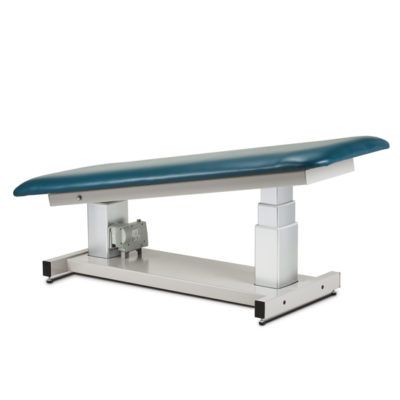

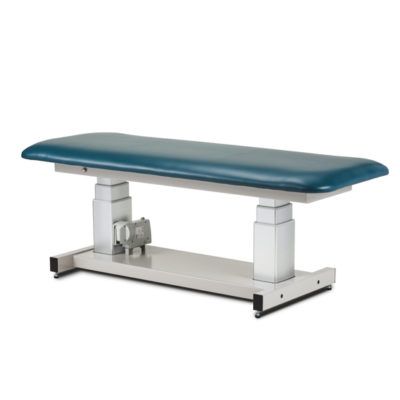

Clinton General Flat Top Ultrasound Table

Yes, the Clinton General Flat Top Ultrasound Table is engineered for stable and precise positioning, which is essential for accurate diagnostic and imaging procedures.

Key features ensuring controlled movement:

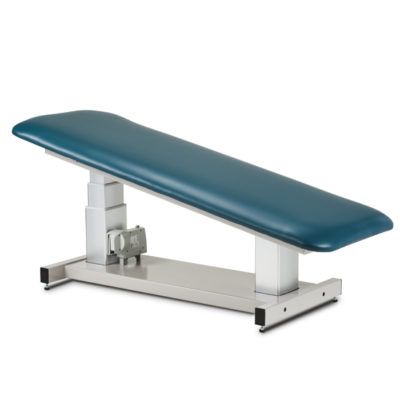

• Tilt Range: Provides powered Trendelenburg and Reverse Trendelenburg capabilities, adjustable up to ±15 degrees.
• Stability: The movement is supported by a robust, all-welded base and top frame, paired with a dual column lift system for maximum rigidity and structural integrity.
• Controls: Positioning is managed easily and precisely using the included hand controls.

Yes, the Clinton General Flat Top Ultrasound Table is engineered for superior stability and long-term durability.

Key construction features include:

• Robust Frame: It features an all-welded base and top frame designed for maximum structural integrity and rigidity.
• Enhanced Stability: A dual column lift system supports the platform, ensuring rigidity during height and tilt adjustments.
• 5-Year Warranty: Its durability is backed by an industry-leading, limited 5-year warranty covering defects in materials, workmanship, or design.

Yes, the Clinton General Flat Top Ultrasound Table comes standard with an integrated paper dispenser. This is a key convenience feature included with the unit to help maintain hygiene and simplify preparation between procedures.

The Clinton General Flat Top Ultrasound Table is engineered for stability and high performance, supporting a maximum load capacity of 550 lbs under normal use. This robust capacity ensures safe and secure accommodation for a wide range of patients.

Yes, the power system and motors are designed to meet high-level medical electrical safety standards, ensuring reliable and secure operation in a clinical setting. This commitment to safety is a core feature of the table’s design.

Specifically, the power supplies and motors comply with the following recognized standards:

• U 60601-1
• CAN/CSA C22.2 601.1

Compliance with these standards guarantees safe and consistent performance for all powered functions, including the dual-column lift system and the precise Trendelenburg/Reverse Trendelenburg adjustments.

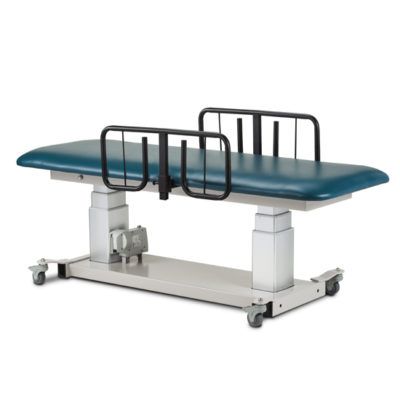

Yes, the Clinton General Flat Top Ultrasound Table offers several optional accessories designed to enhance patient safety and mobility.

Optional Accessories Available:

• Safety Straps (#080): Available (including bariatric options) to secure patients during procedures.
• Safety Rails (#098): Provides essential support and security along the sides of the table.
• Locking Casters (#087): Allows for easy movement and secure positioning. Please note that adding casters will increase the overall width of the table by 6 inches.

Standard Included Components:
The table comes standard with an integrated paper dispenser and easy-to-use hand controls for operating the powered height and tilt adjustments.

The Clinton General Flat Top Ultrasound Table is backed by an industry-leading, limited 5-year warranty.

This specific warranty covers:

• Defects in materials
• Defects in workmanship
• Defects in design

The Clinton General Flat Top Ultrasound Table features a robust design with a fixed length, an adjustable height range, and two width options:

• Length: 72 inches
• Adjustable Height Range: 21.5 inches to 37.5 inches

It is available in the following widths:

• Standard Width: 27 inches
• Wide Width: 34 inches

The Clinton General Flat Top Ultrasound Table is robustly engineered for stability and adjustable patient positioning in clinical settings. It is ideally suited for the following procedures and environments:

• Ultrasound and Diagnostic Imaging: The table is specifically designed for use in ultrasound examination rooms and diagnostic environments, featuring a firm, one-piece flat top for optimal support during imaging.
• Procedures Requiring Positional Adjustments: The power operation allows for smooth electronic adjustment into both Trendelenburg and Reverse Trendelenburg positions, adjustable up to ±15 degrees via easy-to-use hand controls. This precise tilt capability supports various clinical needs.
• General Medical Examinations: Thanks to its robust construction—including an all-welded base and a dual-column lift system—the table ensures exceptional rigidity and maintains a high 550 lb load capacity.

The Clinton General Flat Top Ultrasound Table is available in a selection of nine upholstery colors, allowing you to easily match your clinical environment. The available color options are:

• Black
• Burgundy
• Country Mist
• Desert Tan
• Gunmetal
• Royal Blue
• Slate Blue
• Warm Gray
• Wedgewood
