- Condition: Factory New
- Warranty: 2 Years
- Weight: 55.0 lb
-
Learn more:
- MFR: DJO Global Ships from Manufacturer
- MPN: 2029
- Phone: (800) 494-3395
Frequently asked questions
What are the ranges of motion specifications?
The OptiFlex S is engineered to support complete shoulder kinematics, offering adjustable ranges of motion (ROM) for comprehensive post-surgical therapy:
- Adduction/Abduction: 0 - 30 - 175°
- Internal/External Rotation: 90 - 0 - 90°
- Flexion/Extension: 0 - 30 - 175°
- Horizontal Adduction/Abduction: 0 - 0 - 125°
This capability allows the device to facilitate controlled movement across all necessary planes for effective rehabilitation and prevention of joint stiffness.
Does this CPM unit allow for patient-specific data storage?
Yes, the Chattanooga OptiFlex S Shoulder CPM includes a Patient Data Chip Card system. This allows you to store individual patient data, including:
- Angles
- Speed
- Motion preferences

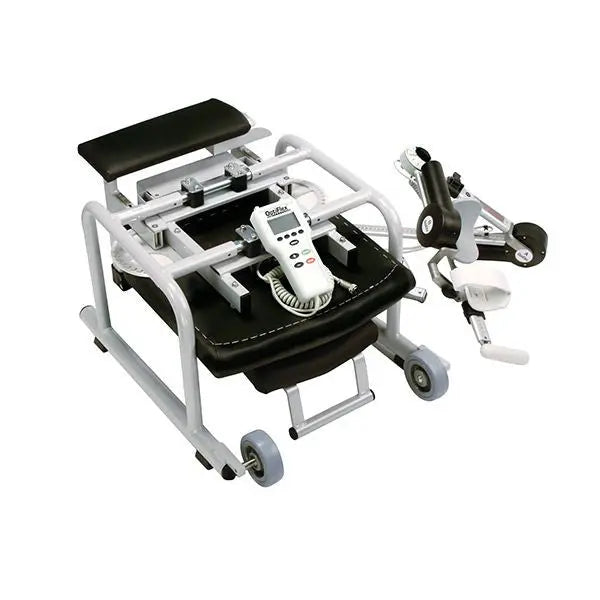

Is the Chattanooga OptiFlex S Shoulder CPM portable?
Yes, the Chattanooga OptiFlex S Shoulder CPM is designed for portability. It can be folded into a more compact size for easier transport. The transport size dimensions are 14.6” x 22.6” x 22.8” (37 cm x 57.5 cm x 58 cm).
What are the dimensions and transport size?
The Chattanooga OptiFlex S is highly portable and features a folding mechanism that significantly reduces its size for easy transport. The measurements are as follows:
- Operating Dimensions: 34.4” x 22.6” x 22.8” (87.5 cm x 57.5 cm x 58 cm)
- Transport Size (Folded): 14.6” x 22.6” x 22.8” (37 cm x 57.5 cm x 58 cm)
In terms of weight, the unit is 55 lb (25 kg) for operation, while the total shipping weight is 107 lb (48.5 kg).
What is included with the OptiFlex S Shoulder CPM?
The following essential components are included with your Chattanooga OptiFlex S Shoulder CPM unit:
- Shoulder CPM unit (portable)
- Data card
- Erasable pen
In what settings can the Chattanooga OptiFlex S Shoulder CPM be used?
The Chattanooga OptiFlex S Shoulder CPM is designed to aid in post-operative shoulder joint recovery through continuous passive motion. It is commonly used in both clinical and home settings to help patients regain their full range of motion after surgery.
Does the Chattanooga OptiFlex S Shoulder CPM offer adjustable parameters?
Yes, the Chattanooga OptiFlex S Shoulder CPM provides extensive customizable treatment parameters to personalize post-operative rehabilitation. These parameters are managed via a user-friendly hand control and can be stored on the included patient data chip card for precision and consistency.
Key adjustable settings include:
- Speed Adjustment: 0 - 100%
- Timer Duration: 1 - 300 minutes
- Pause Time: 0 - 30 seconds
- Reverse-on-load Setting: 1 - 20 (measures sensitivity)
- Warm-up Mode: Set at 50% of the programmed Range of Motion (ROM)
- Synchronization: On/Off
Additionally, the device supports comprehensive Range of Motion (ROM) adjustments across all planes, including Adduction/Abduction up to 175° and Internal/External Rotation up to 90°.
Does the OptiFlex S have a warm-up mode?
Yes, the OptiFlex S Shoulder CPM features a warm-up mode that operates at 50% of the programmed Range of Motion (ROM).

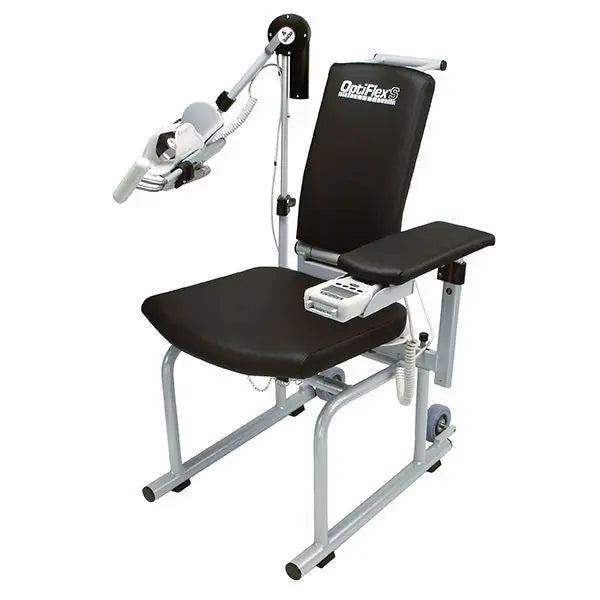

Is the unit comfortable for long therapy sessions?
Yes, the Chattanooga OptiFlex S Shoulder CPM is designed with patient comfort in mind. It features a fully adjustable chair, a patented left/right shoulder design, and an ergonomic armrest to ensure healthy arm positioning and enhanced patient comfort during therapy.
What specific ranges of motion does the CPM support?
The Chattanooga OptiFlex S Shoulder CPM is designed to provide comprehensive rehabilitation by addressing the full kinematics of the shoulder joint. This automated movement is crucial for preventing stiffness and scar tissue formation after surgery.The device supports the following customizable ranges of motion (ROM):* Adduction/Abduction: 0 - 30 - 175°* Flexion/Extension: 0 - 30 - 175°* Internal/External Rotation: 90 - 0 - 90°* Horizontal Adduction/Abduction: 0 - 0 - 125°
