Condition:
-
Warranty:
- Weight: 23.0 lb
-
Learn more:
-
MFR:
DJO Global
Ships from Manufacturer
-
MPN: 2025
- Phone: (800) 336-6569
Frequently asked questions
Is the OptiFlex K-1 suitable for home rehabilitation?
Yes, the Chattanooga OptiFlex K-1 Knee CPM is designed for use in both clinical and home settings. It aids in postoperative recovery by providing Continuous Passive Motion (CPM) to help prevent stiffness and scar tissue formation after knee surgery.
Does the OptiFlex K-1 meet high safety standards?
The Chattanooga OptiFlex K-1 Knee CPM is engineered to meet rigorous international safety standards, ensuring reliable operation and patient protection during recovery.
Key Safety Features:
- Built-in Force Reversal: A critical mechanism that automatically reverses the motion if resistance exceeds 45 Kp of force, preventing excessive stress on the knee joint.
- Patient Lock-out: This essential feature allows clinicians to lock the therapy settings, preventing unauthorized or accidental changes during treatment.
Compliance and Certifications:
The device adheres to extensive standards, including:
- Electrical Safety: Certified as Class 1, Type B.
- Standards Met: The unit complies with the IEC 60601 series, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, ISO 14971, and ISO 10993-1.
What range of patient sizes can this device accommodate?
The Chattanooga OptiFlex K-1 Knee CPM is designed with a high level of versatility to ensure a proper fit for various body types:
- Patient Height: The device supports patients ranging from 4 feet to 6.6 feet (1.2 to 2 m) tall.
- Limb Measurements:
- Calf Length: 10 to 22 inches (25.4 to 55.9 cm).
- Thigh Length: 12 to 19 inches (30.4 to 48.2 cm).

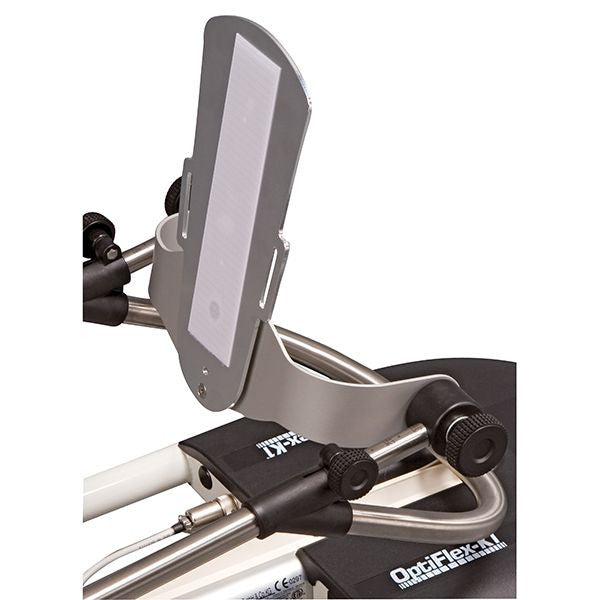

For added convenience and precise adjustment, the unit features a reversible footplate specifically designed to provide comfortable support for patients with shorter legs.
Are helpful accessories available for this unit?
Yes, you can enhance the utility and ease of use of your Chattanooga OptiFlex K-1 Knee CPM by pairing it with complementary accessories. While the unit comes ready to use, these optional items help streamline your recovery setup:
- Chattanooga CPM Patient Kit (#20533): Designed to maximize comfort and hygiene during your therapy sessions.
- Chattanooga Trolley (#4520): Ideal for those who need to move the device frequently, this trolley provides a stable and convenient base for easy transport.
Does the OptiFlex K-1 offer an excellent range of motion?
Yes, the Chattanooga OptiFlex K-1 Knee CPM is designed to provide a comprehensive and therapeutically optimized range of motion (ROM), essential for post-operative recovery and preventing stiffness. It offers a wide arc of movement:
- Knee Flexion: Up to 120 degrees
- Knee Extension (Hyperextension): Down to -10 degrees
This device also features precise controls to customize the therapy protocol to the patient’s needs:
- Speed: Adjustable from 25 up to 180 degrees per minute.
- Pauses: Customizable pause durations ranging from 0 to 59 seconds.
- Safety: Includes a built-in force reversal mechanism that activates at 45 Kp to ensure patient safety.
Does the OptiFlex K-1 have integrated force reversal?
Yes, the Chattanooga OptiFlex K-1 Knee CPM is equipped with an essential, built-in force reversal safety mechanism. This feature automatically reverses the motion if excessive resistance is detected, ensuring patient safety during Continuous Passive Motion (CPM) therapy. The reversal is triggered at 45 Kp of force.

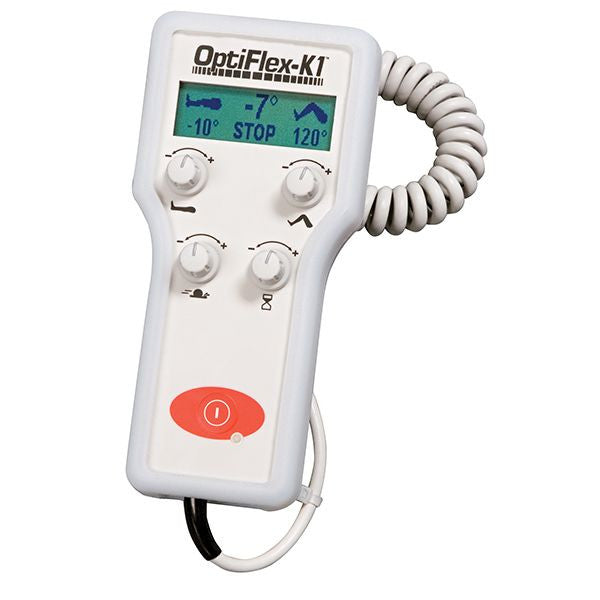

Does the OptiFlex K-1 Knee CPM offer versatile pendant options?

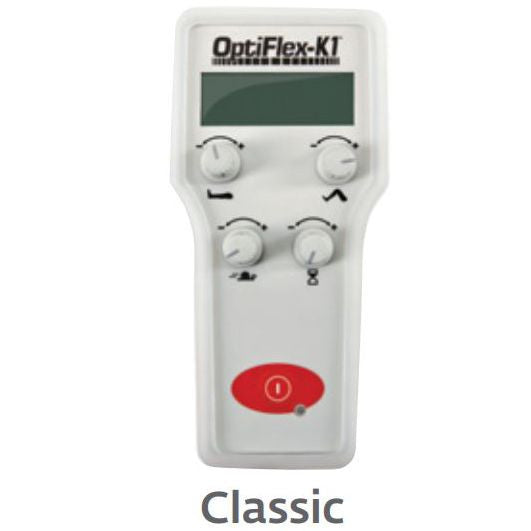

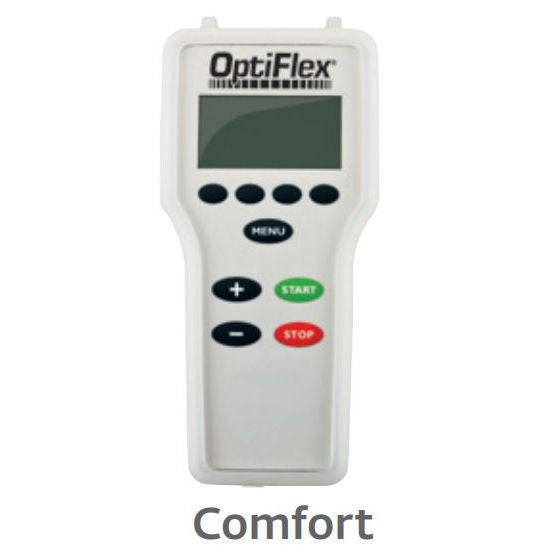

Yes, the Chattanooga OptiFlex K-1 Knee CPM offers versatile control with three interchangeable pendant options: Standard, Classic, or Comfort. This allows you to customize the device’s functionality to best suit your therapy requirements.
Is the OptiFlex K-1 CPM lightweight?
Yes, the Chattanooga OptiFlex K-1 Knee CPM is designed to be manageable while maintaining superior stability.
- Physical Weight: The unit weighs only 23 lb (10.4 kg). This relatively light weight facilitates easy setup, adjustment, and transport for both clinical and home recovery environments.
- Stability: Despite its low weight, the device features an enhanced low-profile, wide, closed-based frame to ensure excellent stability during continuous passive motion therapy.
Does the device offer good stability?
Yes, the Chattanooga OptiFlex K-1 Knee CPM is designed for stability and long-term use. It features a low-profile, wide, closed-based frame to ensure consistent support during operation.
What are the unit's dimensions and weight?

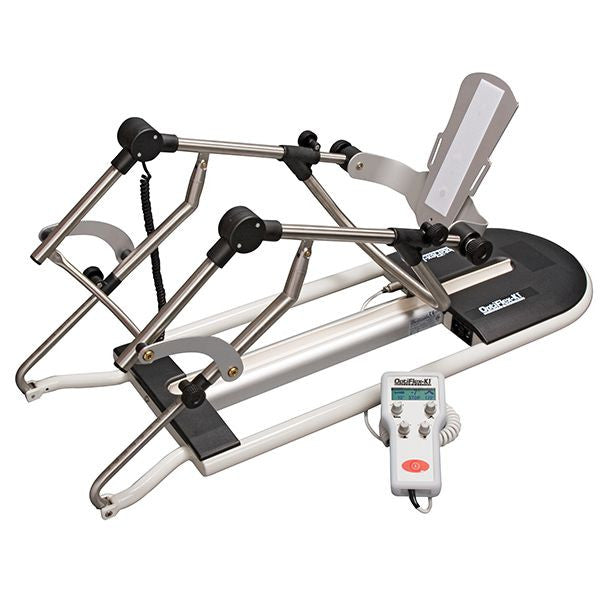

The Chattanooga OptiFlex K-1 features a low-profile, wide, closed-based frame designed for superior stability and to allow seamless clinician access during use.
Its physical specifications are:
- Physical Weight: 23 lb (10.4 kg)
- Dimensions (L x W x H): 38 inches x 14 inches x 9 inches (97 cm x 36 cm x 23 cm)
