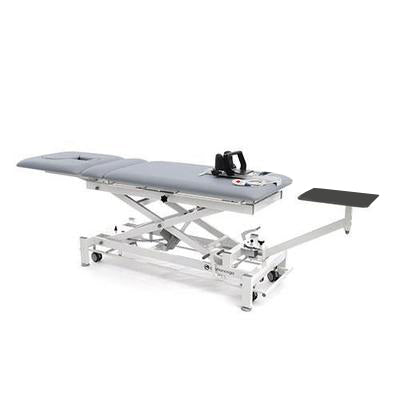

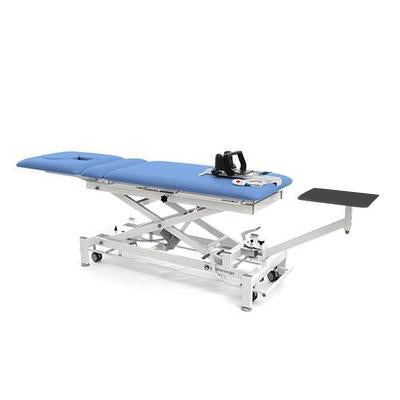

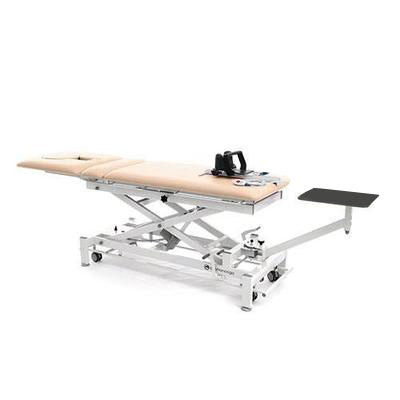

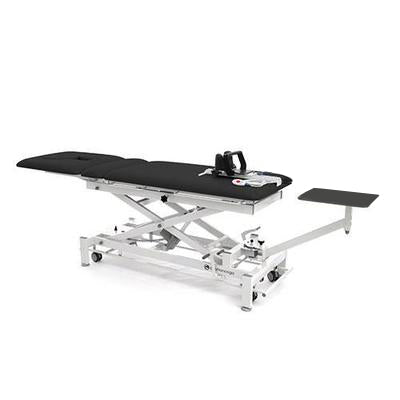

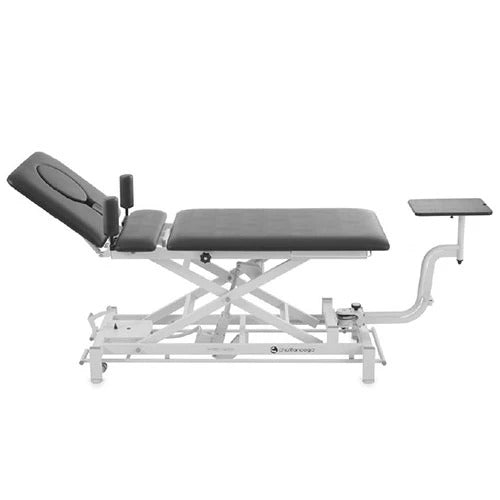

Chattanooga Galaxy TTET300 Traction Table

The Chattanooga Galaxy TTET300 Traction Table is a scissor-frame, multidirectional table with retractable wheels.

Warranty:

• Cushion and Upholstery - 1 Years.
• Base Frame and Motor - 2 Years.

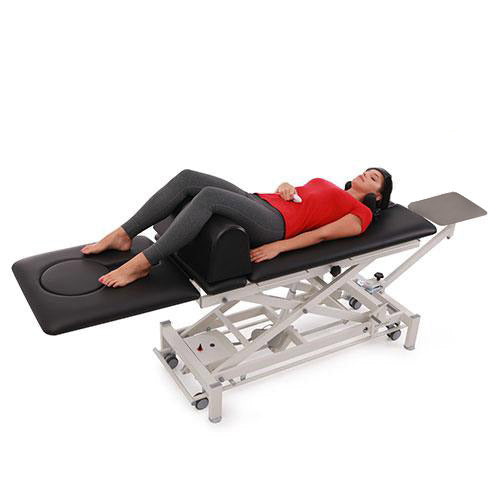

The Chattanooga Galaxy TTET300 Traction Table can be used in prone and supine positions for manual therapy applications and traction therapy, with gas spring assists for seamless movement. The roller-mounted surface prevents friction below the hips and legs, enabling patients to benefit from the full traction force during their procedures. When not in use for traction therapy, this table can also double as a treatment table.

It supports up to 440 lb (with a max workload of 605 lb) and can be adjusted between 19" and 39" for height, via the HalloTronic + System. The head section can be repositioned from -10 degrees to 82 degrees.

Chattanooga Galaxy TTET300 Traction Table Features

• Maximum workload of 605 lb.
• Multifunctional 3-section table.
• Scissor frame and retractable wheels allow for easy movement.

Chattanooga Galaxy TTET300 Traction Table Specifications

• Mains Power: 120 V, 50/60 HZ.
• Current: Max 2A with 120V.
• Dimensions:
  • Head Section: 23".
  • Middle Section: 8".
  • Leg Section: 44.7".
  • Width: 27.5".
  • Total Table Length: 79.5".
  • Total Length with Traction Platform: 103".
• Adjustment:
  • Angle Inclination: Head: -10 degrees to +82 degrees.
  • Displacement: Leg: 6".
  • Height:
    • Minimum: 19".
    • Maximum: 39".
• Dynamic Lifting Capacity: 440 lb.
• Maximum Workload: 605 lb.
• Electrical Safety Class: Class I, Type B.
• Safety Tests: CE, Class I Rule 12.
• Shipping Weight: 330 lb.
• Shipping Dimensions: 86.6" x 33.5" x 31.5".
• Table Weight: 274 lb.

Chattanooga Galaxy TTET300 Traction Table Colors

• #3264102US: Blue.
• #3264108US: Black.
• #3264119US: Imperial Blue.
• #3264101US: Beige.
• #3264106US: Gray.
• #3264107US: Graphite Gray.

Chattanooga Galaxy TTET300 Traction Table Accessories

Please note, the following items are NOT included with purchase of the table. These are commonly purchased as optional accessories for the table.

• #8200: Chattanooga TTET400 / TTET300 Traction Unit Kit with Stool. (Available in six stool colors).
• #8206: Chattanooga TTET400 / TTET300 Traction Unit Kit with Bolster.

Chattanooga Galaxy TTET300 Traction Table Literature

Chattanooga General Line Traction Catalog
