Condition:
Factory New
-
Warranty:
2 Years
- Measures the urinary bladder volume quickly, safely, and automatically, all in a non-invasive manner
- Real-time, high resolution 3D ultrasound images
- Built-in thermal printer on back
- No annual calibration due to patented core technology
-
Learn more:
-
MFR:
Caresono
Ships from Manufacturer
- MPN: HD3
- Phone: (888) 850-4597
+Free Shipping*
Shop with Confidence
Free Shipping
Free Returns
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions
How does the PadScan HD3 reduce infection risk?
The Caresono PadScan HD3 significantly reduces the risk of infection because it is a non-invasive device.
It safely measures bladder volume using ultrasound technology, which:
- Eliminates the need for invasive urinary catheterization.
- Minimizes the risk of introducing pathogens and associated infections often linked to catheter use in clinical settings.
What is the measurement accuracy of the PadScan HD3?
The Caresono PadScan HD3 is designed for precise, non-invasive measurement of urinary bladder volume using real-time, high-resolution 3D ultrasound imaging technology and a patented algorithm.
- Volume Measure Accuracy: The device provides a standard accuracy of ± 15%.
- Measurement Range: It can measure volumes ranging from 0 to 999 ml.
- Display Resolution: Results are displayed with a resolution of 1 ml.
- Scan Speed: The device offers rapid assessment, completing a scan in less than 5 seconds.
Is the PadScan HD3 highly portable for clinical use?
Yes, the Caresono PadScan HD3 is designed specifically for high portability and use in various clinical settings (acute care, long-term care, etc.).
Key features ensuring its ease of transport include:
- Compact “Pad” Style: The unit is small and features an integrated carry handle.
- Lightweight: The total system, including the probe, weighs only 2.65 lb (1200 g).
- Long Battery Life: A built-in 2600 mAh Li-ion battery supports up to 3 hours of continuous scanning (8 hours standby time).
- All-in-One Functionality: The device includes a 7” TFT-LCD touch screen and a built-in thermal printer for rapid results, eliminating the need for external peripherals during transport.
- Included Protection: The scanner ships with a dedicated carry case.
How quickly does the PadScan HD3 measure volume?
The Caresono PadScan HD3 is designed for rapid patient assessment. The entire bladder volume measurement scan is completed in less than 5 seconds, providing quick, non-invasive results for efficient clinical workflow.
What is the continuous scanning battery life?
The Caresono PadScan HD3 is highly portable, powered by a built-in 2600 mAh Li-ion battery designed for sustained clinical use. Key battery performance metrics are:* Continuous Scanning Time: 3 hours* Standby Time: 8 hours* Charge Time: 2 hoursFor improved workflow and availability, the PadScan HD3 system includes two batteries along with the AC wall adapter and charger.
Does the scanner offer integrated printing and data export?
Yes, the Caresono PadScan HD3 is designed for a one-stop data processing workflow that includes both immediate printing and digital data export:
- Built-in Thermal Printer: The unit features a thermal printer integrated directly on the back for generating immediate, physical hard copies of scan results.
- USB Export Functionality: Patient data, records, and measurement results can be easily saved and transferred using the USB export capability.
- Software Included: The scanner comes with a CD containing upper computer software to assist in the management and processing of the exported data.
Does the scanner use advanced 3D imaging technology?
Yes, the PadScan HD3 utilizes advanced technology to provide quick and detailed bladder volume measurements non-invasively.
Key imaging and operational features include:
- Real-time, High-Resolution 3D Imaging: The system uses a patented 3D mechanical sector probe to capture superior, detailed images of the bladder.
- Enhanced Visualization: Features include 3D bladder image projection and Tissue Harmonic Imaging for improved clarity.
- Dual Display: The device can display double ultrasonic images (including 2D and 3D reconstructed views) on its 7-inch TFT-LCD touch screen.
Furthermore, a significant advantage is that the patented core technology eliminates the requirement for annual calibration, simplifying maintenance and ensuring operational efficiency.
Does this device require annual calibration for accurate results?
No, the Caresono PadScan HD3 does not require any annual calibration. Thanks to its patented core technology, the device is designed to maintain its high level of precision and accuracy over time, helping to simplify your maintenance routine and minimize equipment downtime.
What interface languages does the PadScan HD3 offer?
The PadScan HD3 Bladder Scanner is designed for broad clinical applicability and supports eleven interface languages. This ensures ease of use for medical professionals in various international settings.
The supported languages are:
- English
- French
- German
- Spanish
- Chinese
- Danish
- Finnish
- Portuguese
- Swedish
- Dutch
- Norwegian
What is included with the PadScan HD3?
The Caresono PadScan HD3 system is delivered as a complete package, ensuring you have everything needed for immediate setup and operation. The included items are:
- Ultrasound Components: Ultrasound transducer and probe cup.
- Power and Charging: Two Li-ion batteries (allowing for extended use), AC wall adapter, charger, and 14 V power connection line.
- Data and Documentation: USB data line, printer paper (for the built-in thermal printer), and a CD containing the user manual and upper computer software.
- Accessories: Docking stand, screwdriver, and a protective carry case with two keys.
Caresono PadScan HD3 Bladder Scanner

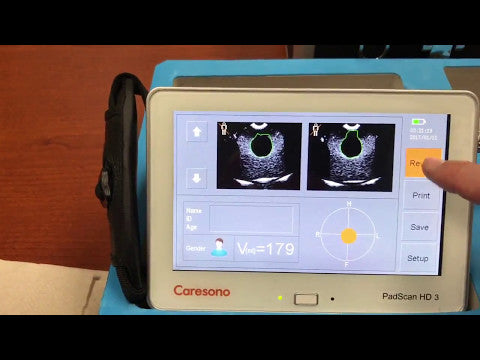

Caresono PadScan HD3 Bladder Scanner Tutorial video
