- Condition: Factory New
- Warranty: 5 Years
- Weight: 0.8 lb
- Includes 5 diopter magnifier lens with 2.25x magnification
- Can be used cordless or with power cord
- Standard and international wall adapter models available
-
Learn more:
-
MFR:
Burton
Ships from Manufacturer
-
MPN: UV604LED
- Phone: (800) 444-9909
Frequently asked questions
How many hours does the battery last?
The Burton UV LED Magnifier provides excellent cordless flexibility thanks to its rechargeable lithium-ion battery.
- Continuous Runtime: The battery offers up to 4 hours of continuous use, allowing for extended professional inspections without needing a power outlet.
- Flexible Operation: The device can also be used continuously while plugged into the power cord (compatible with 100–240 V input).
Does the magnifier have robust safety certifications?
Yes, the Burton UV LED Magnifier holds robust safety approvals. It is certified with both UL and cUL designations, confirming compliance with recognized electrical and product safety standards for professional use.
What components are included?
The Burton UV LED Magnifier is provided as a complete, ready-to-use kit that supports immediate cordless operation, thanks to its internal rechargeable lithium-ion battery. The unit is designed for professional inspection and precision use.
Your purchase includes the following components:
- Main UV LED Magnifier Unit: Featuring the 2.25x (5 diopter) magnification, scratch-resistant glass lens, and dual White/UV 365nm LED illumination.

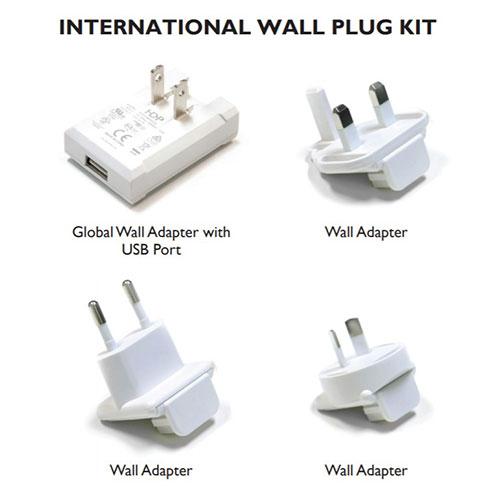

- Power Cord/Adapter: Specific to the configuration purchased (US or International Wall Plug Kit).
- Warranty Documentation: Covering the 5-year warranty for the magnifier unit and the 2-year warranty for the battery.
Does the lens use high-quality, non-yellowing glass?
Yes, the Burton UV LED Magnifier is engineered with high-quality optics for exceptional clarity and durability.
Key features of the lens include:
- Material: It is constructed from optically ground and polished glass.
- Durability: The glass is specifically formulated to be non-yellowing, ensuring long-term viewing clarity.
- Magnification: The lens provides 2.25x magnification, equivalent to a 5 diopter strength.
Does this powerful magnifier offer dual illumination?
Yes, the Burton UV LED Magnifier is engineered with powerful dual illumination capabilities, making it highly versatile for medical, forensic, and industrial inspections. The device integrates two high-performance, long-lasting light sources:
- White LED: This source provides exceptional clarity and detail, delivering an illuminance of 3,288 Lux at six inches. It features an excellent Color Rendering Index (CRI) of 95 and a controlled color temperature (3800K), ensuring accurate visualization. It is rated for over 36,000 hours of operational life.
- UV LED: Dedicated to specific diagnostic and inspection applications, this source operates at a precise 365nm UVA wavelength, crucial for defect detection and forensic analysis. It is rated for 30,000+ hours of use.
This integrated system allows users to seamlessly switch between standard visualization and specialized UV inspection.
Can the magnifier be used while plugged in?
Yes, the Burton UV LED Magnifier is engineered for maximum operational flexibility, supporting both cordless and continuous corded use.<ul><li>Dual Operation: You can use the magnifier continuously while it is plugged into a standard 100–240 V AC power supply.</li><li>Cordless Use: For inspection on the go, the rechargeable lithium-ion battery provides up to 4 hours of continuous cordless use.</li><li>Precision Monitoring: Operation is managed via a microprocessor control system that includes SMART audio and visual indicators for clear user feedback on power and status.</li></ul>
What is the superior White LED color temperature?
The White LED is engineered for high accuracy and superior visibility, featuring an optimal color temperature of 3800K.
It also offers an excellent Color Rendering Index (CRI) of 95. This high CRI rating ensures precise and accurate color rendering, which is vital for detailed inspection and diagnostic tasks in fields such as dermatology, ophthalmology, and forensic science.
What are the warranty periods for the magnifier and battery?
The Burton UV LED Magnifier unit and its internal rechargeable battery are covered by two separate warranty periods:
- Magnifier Unit: 5 Years
- Rechargeable Lithium-ion Battery: 2 Years
How bright is the White LED light?
The White LED light provides an illuminance of 3,288 Lux, measured at a distance of 6 inches. This powerful output is specifically designed for clear and accurate inspection.
The lighting system boasts high quality specifications:
- Exceptional Color Accuracy: It features a Color Rendering Index (CRI) of 95, ensuring true-to-life color rendering critical for professional detection and analysis.
- Color Temperature: The light is set at a natural 3800K.
- Long Lifespan: The White LEDs are rated for an operational life of 36,000+ hours.
What is the magnification level?
The Burton UV LED Magnifier is equipped with a high-quality optical system designed for precise professional inspection.
- Magnification: The device provides 2.25x magnification.
- Lens Specifications: This level of magnification is achieved using a 5 diopter lens.
- Quality and Durability: The lens is made from optically ground and polished glass that is both scratch-resistant and guaranteed to be non-yellowing for lasting clarity.
- Viewing Area: The viewing area is sized at 1.85 inches (H) x 3.85 inches (W).
