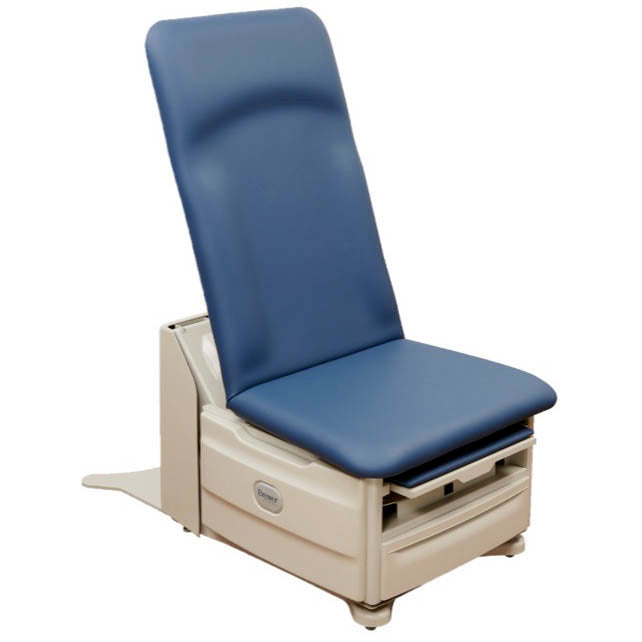

Brewer FLEX High-Low Power Exam Table with Power Back

Yes, the Brewer FLEX exam table features a powerful, motorized backrest engineered for smooth, quiet, and reliable adjustments, which significantly enhances clinical throughput and patient comfort. The operation is designed to be hands-free and ergonomic for the staff.

Key details of the motorized backrest:

• Adjustment Range: The back section moves smoothly from a completely horizontal (0°) position up to an examination angle of 75° to 85°.
• Control: Adjustments are managed easily and hygienically using the standard foot control.
• Safety: The movement system utilizes safe, low-voltage motor actuators for consistent performance and long-term reliability.

The Brewer FLEX table includes the exclusive SafeGlide leg extension, a feature integrated to boost patient safety and comfort, particularly during transfers and positioning. This component enhances safety through:

• Secure, Extended Support: The extension increases the overall upholstered length of the table to 78.0 inches (198.1 cm) when fully deployed. This ensures comprehensive support for a wide range of patient heights and minimizes the risk of accidental slipping off the end of the table.
• Stability during Procedures: The integrated design provides a secure platform, boosting patient confidence and stability when being positioned or undergoing an examination.

The SafeGlide leg extension itself measures 21.0 inches (53.3 cm) in length.

Yes, the Brewer FLEX Exam Table is specifically engineered with a robust design to accommodate a wide range of patients safely and comfortably. It offers an impressive bariatric capacity for the primary seating area.

• Seat/Back Maximum Load Rating: 700 pounds (317 kg)

This high capacity is a top selling point, enhancing clinical safety and throughput. Specific load ratings for other components are:

• Transfer Grab Bars (Optional): 100 lb (45.4 kg)
• Upholstered Leg Support: 50 lb (22.7 kg)
• Optional Pass Through Work Surface: 15 lb (6.8 kg)

The Brewer FLEX Exam Table is specifically engineered for enhanced patient safety and accessibility, supporting ADA compliance and accommodating a wide range of patients.

Key features that ensure safe and easy patient transfers include:

• High Weight Capacity: The table features a robust 700 lb (317 kg) load rating on the seat and back, ensuring stability and confidence for bariatric patients.
• Low Entry Height: The motorized high-low mechanism descends to a minimum height of just 18.0 inches (45.7 cm). This height significantly simplifies lateral transfers, especially from wheelchairs.
• Transfer Grab Bars: Swing-out transfer grab bars are included to provide secure, stable support for patients when they are entering, positioning, or exiting the table.
• SafeGlide Leg Extension: This exclusive feature provides a stable, smooth leg extension up to 21.0 inches (53.3 cm), enhancing safety during patient positioning for various examinations.

The Brewer FLEX Exam Table offers a motorized height adjustment range that optimizes both staff ergonomics and patient access, while aiding in ADA compliance.

The height range is:

• Minimum (Low): 18.0 inches (45.7 cm)
• Maximum (High): 37.0 inches (94 cm)

This broad range is effortlessly controlled hands-free using the standard foot control.

Yes, for enhanced safety and reliability in clinical settings, the Brewer FLEX Exam Table utilizes a detachable power cord equipped with a Hospital Grade Plug.

This robust design ensures the table meets stringent standards for medical environments.

Key electrical specifications are:

• Plug Type: Detachable, Hospital Grade Plug
• Cord Specification: 18 AWG / 3 Conductor
• Cord Length: Extends 70.0 inches (177.8 cm) from the table.
• Electrical Safety: The table provides Class 2 Double Insulated protection against electrical shock.

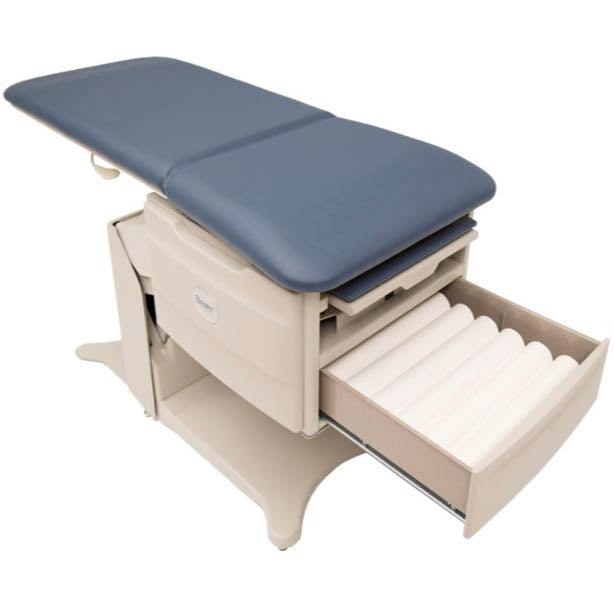

The Brewer FLEX High-Low Power Exam Table is designed to enhance clinical efficiency and includes integrated storage to help keep essential supplies organized and close at hand. The table features one spacious, integrated front drawer as standard.

This drawer is sized to maximize utility while maintaining a compact footprint. Its dimensions are:

• Length: 19.7 inches (50.3 cm)
• Width: 19.2 inches (48.8 cm)
• Depth: 4.0 inches (9.7 cm)

The Brewer FLEX Exam Table provides ample length to accommodate taller patients comfortably. The maximum overall patient length when the table is fully extended, utilizing the exclusive SafeGlide leg support, is 78.0 inches (198.1 cm).

For reference, the main upholstered top section itself measures 60.0 inches (152.4 cm) long.

Yes, the Brewer FLEX exam table is engineered with multiple safety measures to ensure robust electrical protection and operational reliability.

Key safety features include:

• Class 2 Double Insulated Protection: This provides superior defense against electrical shock for both patients and clinicians.
• Safe, Low Voltage Actuators: All motorized functions utilize safe, low voltage actuators for movement.
• Hospital Grade Power Cord: The unit features a detachable 18 AWG / 3 Conductor cord with a required Hospital Grade Plug.
• Internal Fusing: Electrical components, including the control box, are protected by integrated fuses (rated 250V/2.5A) to prevent overload.
• Anti-Tamper Switch: An anti-tamper on/off switch is included for added operational safety.

The Brewer FLEX High-Low Power Exam Table is offered in a wide selection of twelve upholstery colors, allowing you to customize the unit to seamlessly match your clinic’s environment.

The available color options are:

• Clamshell
• Gunmetal
• Feather
• Black Satin
• Saddle
• Tapestry Red
• Cabernet
• Cocoa
• Deep Sea
• Ivy
• Deep Sapphire
• Blue Fog
