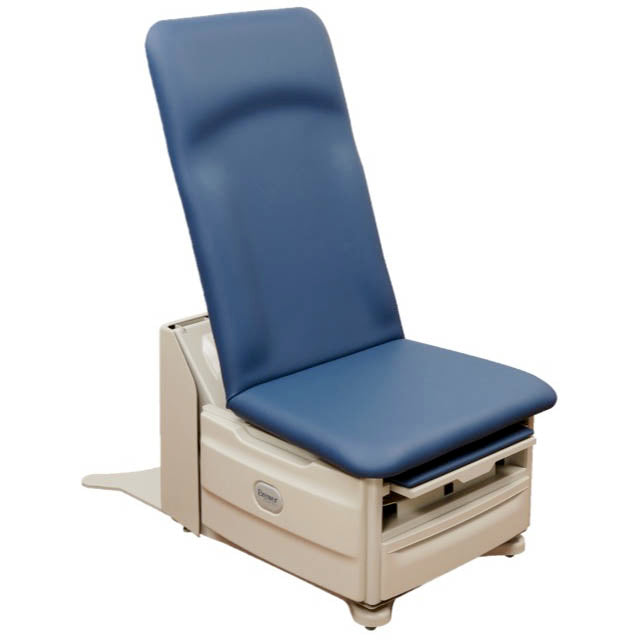

Brewer FLEX Access High-Low Exam Table

Yes, the Brewer FLEX Access High-Low Exam Table is engineered for optimal patient accessibility and safety, ensuring easier transfers and accommodating a broad range of patients. Key features that enhance accessibility and safety include:

• ADA Compliant Low Height: The motorized height adjustment lowers the table to an accessible minimum of 18 inches (45.7 cm), facilitating independent transfers.
• Bariatric Capacity: The table boasts a maximum load rating of 700 lb (317 kg) on the seat and back section, supporting a wider patient population with confidence.
• Enhanced Transfer Safety: It features swing-out transfer grab bars designed to simplify lateral wheelchair transfers, along with the exclusive SafeGlide leg extension for increased stability.
• Ergonomic Control: The full height range (18” to 37”) is easily operated via a standard, hands-free foot control.

The Brewer FLEX Access High-Low Exam Table is specifically engineered for robust performance and bariatric capacity, accommodating a wide range of patient needs.

• The maximum load rating for the main seat and back section is an impressive 700 lb (317 kg).

This high capacity is integrated with features designed for enhanced patient safety and accessibility:

• ADA Compliant Height: The table lowers to 18 inches (+/- 0.5”), greatly simplifying safe, independent lateral patient transfers.
• Transfer Assistance: It is equipped with transfer grab bars that swing out to assist mobilization (rated for 100 lb).

Yes, the Brewer FLEX Access High-Low Exam Table is specifically designed to maximize utility within compact clinical spaces.

Key features related to space efficiency and accessibility include:

• Compact Footprint: It is engineered to fit effectively in smaller exam rooms without compromising functionality.
• ADA Compliance: Its design, featuring a minimum height of only 18” (45.7 cm), facilitates compliance with ADA standards, even in space-constrained settings.

The Brewer FLEX Access High-Low Exam Table features a wide electric adjustment range, easily controlled hands-free via the standard foot control. This range is optimized for both patient accessibility and staff ergonomics:

• Low Height (Accessibility): The table lowers to a minimum height of 18 inches (45.7 cm). This ultra-low setting is crucial for enhancing patient safety, simplifying lateral wheelchair transfers, and ensuring ADA compliance.
• High Height (Ergonomics): The table raises up to a maximum height of 37 inches (94 cm). This elevated position helps clinical staff maintain a comfortable, ergonomic posture during procedures, reducing strain and improving overall productivity.

The exclusive SafeGlide leg extension is designed to increase patient comfort and safety during examinations and transfers. It provides the following dimensions:

• SafeGlide Leg Extension Length: The extension itself measures 21 inches (53.3 cm).
• Overall Table Length: When the leg support is fully extended (including the SafeGlide extension), the total length of the upholstered surface is 78 inches (198.1 cm).

The upholstered top of the Brewer FLEX Access Exam Table is designed to accommodate a wide range of patients comfortably.

Here are the key dimensions:

• Width: The upholstered top is available in a range from 24 inches to 28 inches (61 cm to 73.7 cm).
• Length (Main Section): The primary table length is 60 inches (152.4 cm).
• Total Extended Length: When the exclusive SafeGlide leg extension is deployed, the overall upholstered length reaches 78 inches (198.1 cm), which helps comfortably support taller patients.

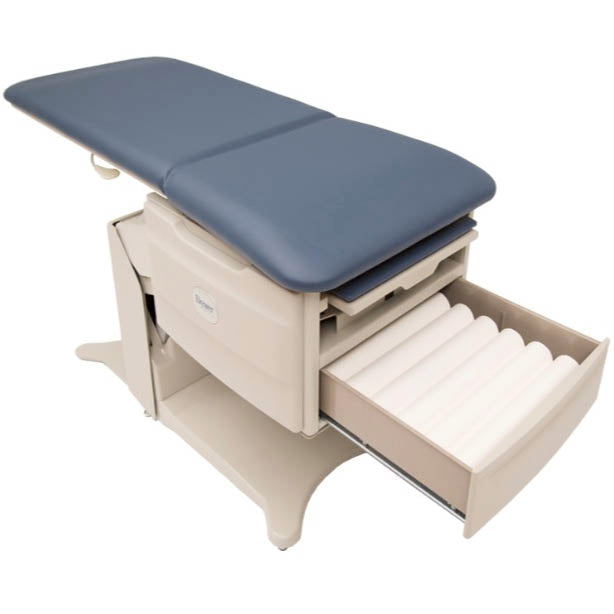

The Brewer FLEX Access High-Low Exam Table includes a convenient front storage drawer for organizing supplies. Its dimensions are detailed below:

Yes, the Brewer FLEX Access Exam Table is engineered with multiple safety features to protect both patients and staff during operation and use.

Key safety components include:

• Advanced Electrical Protection: The table features Class 2 Double Insulation for superior protection against electrical shock. It uses a detachable power cord with a certified Hospital Grade Plug.
• Operational Safety & Control: Height adjustments are managed via safe, low-voltage actuators. The system also includes an anti-tamper on/off switch to prevent accidental or unauthorized movement.
• Motor Durability: The motor adheres to a strict 10% duty cycle (2 minutes on / 18 minutes off motor run time) to ensure reliability and longevity.
• Patient Safety: For enhanced patient well-being, the table incorporates the exclusive SafeGlide leg extension.

Yes, the Brewer FLEX Access High-Low Exam Table is offered in a wide selection of twelve professional upholstery colors. This variety allows for excellent integration into any clinical decor scheme, ranging from neutrals to rich tones.

The available color options include:

• Clamshell
• Gunmetal
• Feather
• Black Satin
• Saddle
• Tapestry Red
• Cabernet
• Cocoa
• Deep Sea
• Ivy
• Deep Sapphire
• Blue Fog

The Brewer FLEX Access High-Low Exam Table uses safe, low-voltage electric actuators for height adjustments. To ensure reliable performance and longevity, the system requires a specific duty cycle of 10%.

This cycle translates to the following operational limits for motor run time:

• Maximum Run Time: 2 minutes ON
• Required Rest Period: 18 minutes OFF
