Condition:
-
Country of Origin: USA
-
Warranty:
- Weight: 425.0 lb
- Power back for easy patient positioning
- Sensors for safety during movement
- 450 lb weight capacity
- Adjustable stirrups
-
Learn more:
-
MFR:
Brewer
Ships from Manufacturer
-
MPN: 6500-21
- Phone: (800) 558-8777
Frequently asked questions
What is the power backrest adjustment range?

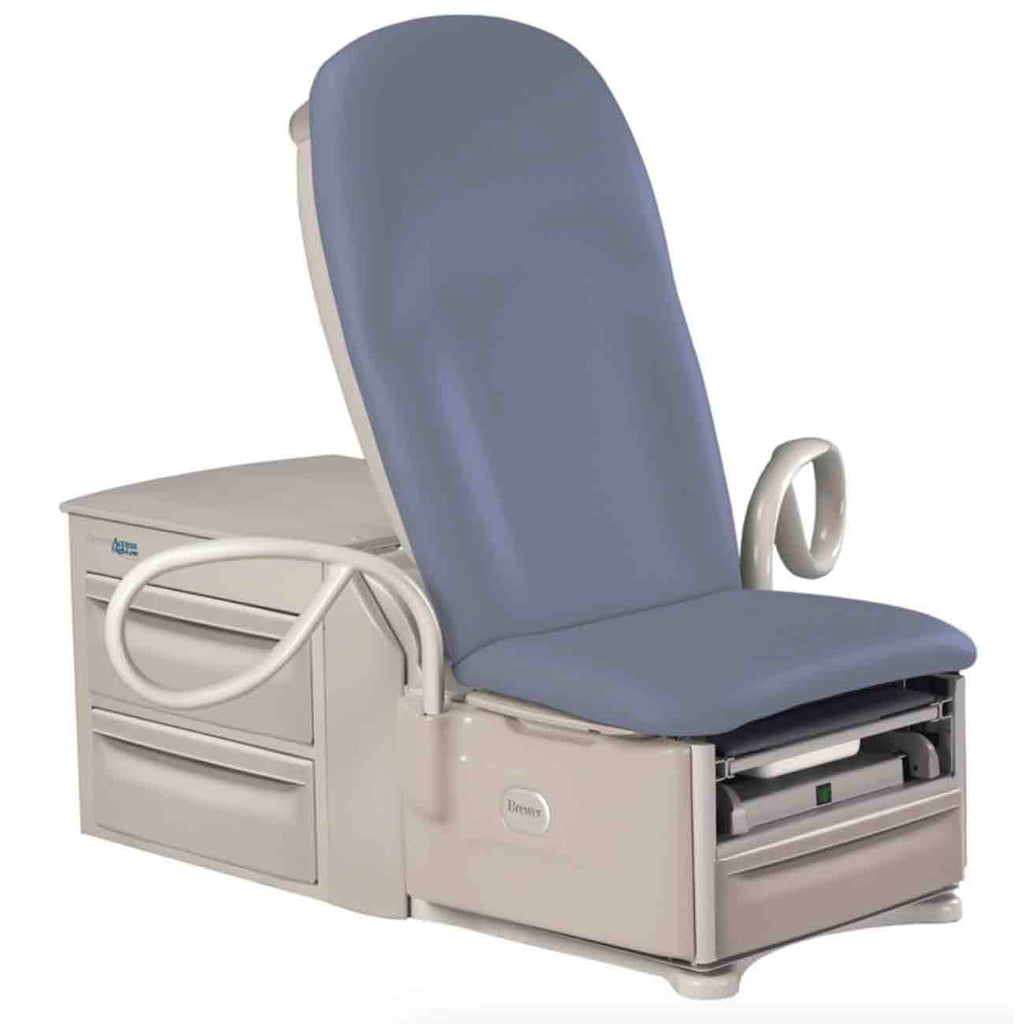

The Brewer Access High-Low Exam Table features a powerful, motorized backrest that allows for a wide range of patient positioning.
- Adjustment Range: The backrest is easily adjustable from 0 degrees (fully horizontal) up to 85 degrees (nearly upright).
- Benefit: This extensive range allows clinicians to quickly and safely move the patient for optimal comfort and procedure access.
- Safety Features: The system also incorporates integrated movement sensors to minimize injury risk during adjustment and an anti-tamper on/off switch to prevent accidental operation.
Is the low table height wheelchair-friendly?
Yes, this Brewer Access table is specifically engineered for superior accessibility and safety during patient transfers.
- Optimal Low Height: The table utilizes a high-low power mechanism that descends to an accessible seated profile of just 18 inches (45.7 cm). This height aligns perfectly with standard wheelchairs, ensuring secure and level patient transfers.
- Full Height Range: It provides a full power-adjustable range, moving smoothly from the low 18-inch transfer height up to a maximum working height of 37 inches (94 cm).
- Safety and Capacity: The robust table design safely accommodates patients up to 450 lb (204 kg) on the seat and back sections and includes integrated safety grab bars to assist during transitions.
What important safety features are included?
The Brewer Access High-Low Exam Table is designed with several integrated features to ensure maximum safety and security for the patient and clinician:
- Integrated Safety Sensors: Movement sensors are built into the system to actively monitor the table’s movement, minimizing the risk of injury during height and backrest adjustments.
- Anti-Tamper Control: An anti-tamper on/off switch prevents accidental movement and ensures controlled, authorized operation of the powered functions.
- Sturdy Safety Grab Bars: Robust, integrated grab bars provide essential stability and leverage for patients during transfers and positioning. These bars have a maximum load rating of 100 lb (45 kg).
- Electrical Protection: The table features Class 2 Double Insulated electrical protection and is classified as having Type B applied parts for enhanced user safety.
Is the weight capacity robust?
Yes, this exam table is engineered for robust support and secure patient transfer. The primary load rating for the main patient area (seat and backrest) is substantial:
The maximum patient capacity is 450 lb (204 kg).
Specific load ratings are also defined for other functional components, ensuring safety across the entire system:
| Component | Maximum Load Capacity |
|---|---|
| Primary Patient Support (Seat/Back) | 450 lb (204 kg) |
| Safety Grab Bars | 100 lb (45 kg) |
| Leg Support | 50 lb (22.6 kg) |
| Pass-Through Work Surface | 15 lb (6.8 kg) |
Does the table include integrated storage?
Yes, the Brewer Access High-Low Exam Table features the brand’s signature pass-through drawer system built into the base. This design provides convenient and substantial storage space beneath the upholstered area.
This storage system is engineered for efficiency and accessibility:
- Pass-Through Design: Allows clinicians to retrieve necessary supplies and instruments quickly from either side of the examination table.
- Load Rating: The maximum load rating for the integrated pass-through work surface is 15 lb (6.8 kg).
What are the upholstered top dimensions?
The Brewer Access Exam Table features a seamless, easy-to-clean upholstered top designed for patient comfort and enhanced hygiene. The dimensions of the upholstered surfaces are:
- Main Upholstered Top (Seat and Back): 28.0 inches wide by 60 inches long.
- Upholstered Leg Support: 18 inches wide by 18 inches long.
When the upholstered leg support is fully extended, the total patient surface length is 78 inches.
Is the upholstery easy to clean?
Yes, the table features easy-to-clean, seamless upholstery, which helps maintain hygiene and simplifies maintenance in a clinical environment.
What is the motor duty cycle?
The Brewer Access Exam Table motor operates on a specified duty cycle to ensure reliable performance and longevity:
- Duty Cycle: 10% run time
- Operation Limit: The motor can run for a maximum of 2 minutes on, requiring an immediate cool-down period of 18 minutes off.
Does the table support standard paper rolls?
Yes, the Brewer Access High-Low Exam Table is designed to accommodate two common sizes of paper rolls for patient hygiene and easy maintenance:
- 18” x 3.5”
- 21” x 3.5”
Does this table include adjustable stirrups?
Yes, the Brewer Access High-Low Exam Table includes adjustable stirrups. These components allow for enhanced patient positioning and flexibility, ensuring greater comfort during various medical examinations and procedures.
