Key Features
  • SKU: BRW-6801-21
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 3 Years
  • Weight: 425.0 lb
  • Supports patients weighing up to 700 lb (317 kg) for versatile use
  • Pelvic Tilt allows adjustment of the angle of the patient's pelvic area for better positioning during examinations
  • Integrated safety grab bars facilitate reliable patient transfers and enhance patient safety

  • Learn more:

Contact The Manufacturer
  • MFR: Brewer
    Ships from Manufacturer
  • MPN: 6801-21
  • Phone: (800) 558-8777
$11,400.78

+Shipping

Est. Delivery:

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

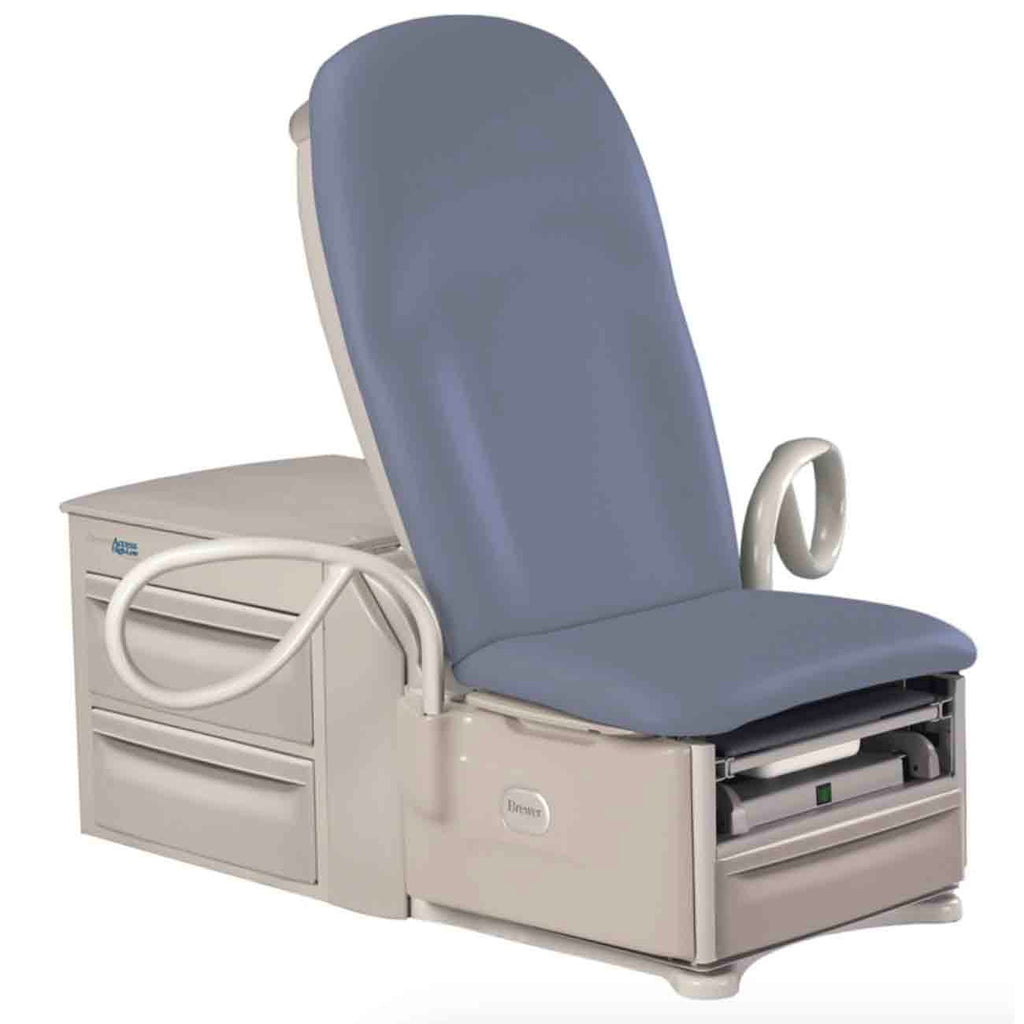

The Brewer Access High-Low Exam Table with Pelvic Tilt - 700 lb Capacity is equipped with an upright seat back and safety grab bars.

Warranty: 3 Years.

The Brewer Access High-Low Exam Table has a 700 lb weight capacity and is crafted with an 18" profile in the seated position, ensuring a secure and level patient transfer from standard wheelchair heights. It is equipped with an upright seat back and safety grab bars to facilitate reliable patient transfers. The Access power medical table system includes Brewer's signature pass-through drawer system, offering ample storage capacity, and its power back enables easy adjustment of the patient's position.

Features

Brewer Access High-Low Exam Table with Pelvic Tilt - 700 lb Capacity Features

  • Adjustable stirrups.
  • Easy-to-clean, seamless upholstery.
  • Adjustable power backrest for easy patient positioning.
  • Sensors to minimize the possibility of injuries during table movement.
  • Anti-tamper on/off switch preventing accidental movement.

Specifications

Brewer Access High-Low Exam Table with Pelvic Tilt - 700 lb Capacity Specifications

  • Weight of Table: 423 lb (192 kg).
  • Load Rating (maximum):
    • Seat/Back: 700 lb (317 kg).
    • Leg Support: 50 lb (22.6 kg).
    • Pass Through Work Surface: 15 lb (6.8 kg).
    • Grab Bars: 100 lb (45 kg).
  • Back Section Range: 0 (horizontal) to 85 degrees.
  • Table Top Height Range: 18 +/- 0.5" to 37 +/- 1.0" (45.7 cm +/- 1.3 cm to 94 cm +/- 2.5 cm).
  • Upholstery Dimensions:
    • Upholstered Top: 28.0" wide x 60" long
    • Upholstered Leg Support: 18" wide x 18" long.
    • Overall Length: 60" long.
    • With Leg Support Extended: 78" long.
  • Electrical Rating: 230 VAC nominal, 60/50 HZ, 3.0 amps max.
  • Fuse Rating: Control Box Fuse Rating: 250V/1.25A.
  • Duty Cycle (10%): 2 minutes on / 18 minutes off (motor run time).
  • Power Cord: Detachable.
  • Type of protection against electrical shock: Class 2 Double Insulated
  • Type of protection against electrical shock: Type B applied parts.
  • Type of protection against ingress of water: Ordinary.
  • Can accept paper rolls of: 18" x 3.5" or 21" x 3.5" (45.7 cm x 8.9 cm or 53.3 cm x 8.9 cm).
  • Operating Conditions:
    • Temperature Range: 65 to 85 degrees F (18.3 to 29.4 degrees C).
    • Humidity Range: 10% to 90%.
  • Transportation and Storage:
    • Temperature Range: -20 to 150 degrees F (-28.9 to 65.5 degrees C).
    • Humidity Range: 10% to 90%.

Colors

Brewer Access High-Low Exam Table with Pelvic Tilt - 700 lb Capacity Colors

  • #6801-21: Clamshell.
  • #6801-22: Gunmetal.
  • #6801-23: Feather.
  • #6801-24: Satin.
  • #6801-25: Saddle.
  • #6801-26: Tapestry Red.
  • #6801-27: Cabernet.
  • #6801-28: Cocoa.
  • #6801-29: Deep Sea.
  • #6801-30: Ivy.
  • #6801-31: Deep Sapphire.
  • #6801-32: Blue Fog.
  • #6801-50: Arctic Plush.
  • #6801-51: Charcoal Plush.
  • #6801-52: Shetland Plush.
  • #6801-53: Stone Plush.
  • #6801-55: Admiral Plush.

Literature

Brewer Access High-Low Exam Table with Pelvic Tilt - 700 lb Capacity Literature

Brewer Access High-Low Exam Table Installation and Operation Manual

Brewer Access High-Low Exam Tables Brochure
