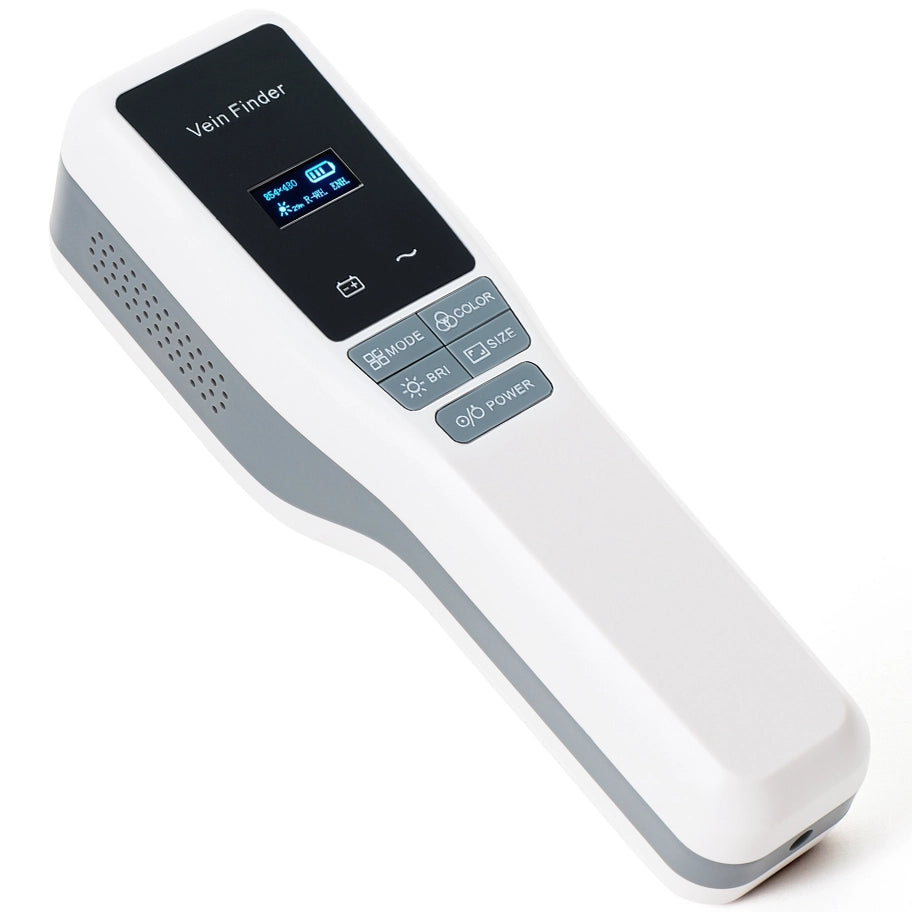

Brandt Vein Finder

Key Features

SKU: BRT-BRA-700
Condition: Factory New
Weight: 1.06 lb
Takes advantage of the blood hemoglobin absorption for near-infrared light stronger than other tissues
Makes the superficial blood vessels visualized through vein visualization technology
Widely used in emergency, outpatient, pediatrics, geriatrics, ICU, dermatology, hemodialysis centers, and cosmetology departments
High-precision cameras and high-precision projectors with advanced vascular algorithms to ensure high resolution qualified images
Learn more:

Contact The Manufacturer

MFR: Brandt Ships from MFI Medical
MPN: BRA-700

$2,317.79

Shop with Confidence

Description

The Brandt Vein Finder (#BRA-700) mainly takes advantage of the blood hemoglobin absorption for near-infrared light stronger than other tissues. It makes the superficial blood vessels visualized through vein visualization technology. It is helpful to find, evaluate, and position the superficial blood vessels.

It can effectively improve a patient's satisfaction, reduce a nurses' psychological pressure, reduce work intensity, and protect doctors and patients from venipuncture issues. It is widely used in emergency, outpatient, pediatrics, geriatrics, ICU, dermatology, hemodialysis centers, and cosmetology departments.

Features

Brandt Vein Finder Features

High Resolution Image: High-precision cameras and high-precision projectors with advanced vascular algorithms to ensure high resolution qualified images.
Light Source: Near infrared.
Projection Size: Large, medium, small, very small.
Projection Color: Grey white, green, green background, red, blue, blue background.
Projection Brightness: 4 levels adjustable.
Projection Mode: Normal, enhanced, depth.
Depth Prompts: Deep, medium, shallow.
Sleeping Function: 30 minutes with no operation goes into sleeping function.
Display: 0.96" OLED display module, displaying pixels, battery, brightness, color, mode, sleep countdown, etc.

Specifications

Brandt Vein Finder Specifications

Projector Resolution: 854 x 480 pixels.
Resolution Speed: 60 frames per second.
Resolution Deviation: Less than or equal to 0.10 mm.
Best Projection Distance: 200 ± 20 mm.
Minimum Identified Blood Vessel Diameter: Greater than or equal to 0.4 mm.
Wave Length: 850 nm.
Maximum Detection Depth: Less than or equal to 8 mm.
Consumption: 16 W.
Power: 100 ~ 240 V, 50/60 Hz, Adapter: 12 V, 2.5 A.
Battery: Internal 7.2 V, 2200 mAh.

Charging Time: Less than or equal to 3 hours.
Working Time: Greater than or equal to 4 hours.

Weight: 1.06 lb (480 g).
Dimensions: 220 mm x 65 mm x 65 mm.

Literature

Brandt Vein Finder Literature

Brandt Vein Finder Brochure
