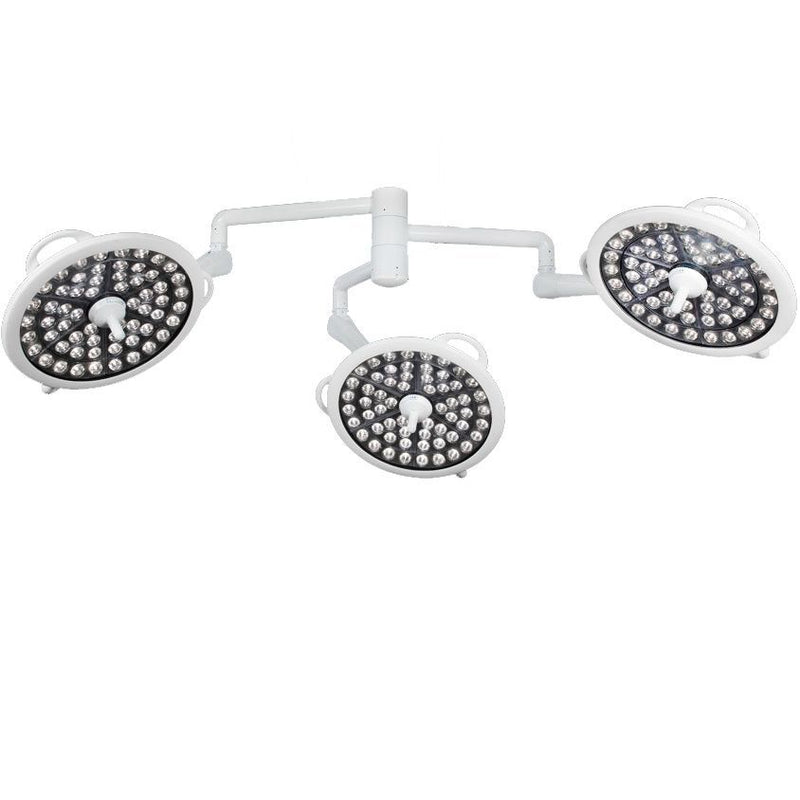

Bovie System Two LED Series Surgical Light - Triple Ceiling Mount

Bovie System Two LED Series Surgical Light - Triple Ceiling Mount
Bovie System Two LED Series Surgery Light - Close-Up
Bovie System Two LED Series Surgery Light - Angle
Bovie System Two LED Series Surgery Light - Dimmed
Bovie System Two LED Series Surgical Light - Triple Ceiling Mount
Bovie System Two LED Series Surgery Light - Close-Up
Bovie System Two LED Series Surgery Light - Angle
Bovie System Two LED Series Surgery Light - Dimmed
Key Features
  • SKU: BOV-XLDS-S23
  • Condition: Factory New
  • Country of Origin: USA
  • Warranty: 3 Years
  • Weight: 155.0 lb
  • Five-stage light dimming and ENDO Mode
  • Low energy consumption
  • No heat generation
  • Advanced suspension arm design with shadow control

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
$31,713.00 $26,367.20

+ Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match

Description

The Bovie System Two LED Surgical Light - Triple Ceiling Mount (#XLDS-S23) combines three powerful System Two light heads onto one ceiling mount, to brightly illuminate any surgical suite for procedures.

Warranty: 3 Years.

Note: Please call or specify your facility ceiling height in the Additional Notes section of your Cart during the checkout process.

With a maximum lux of 130,000 per lamphead, the System Two LED Surgical Light - Triple Ceiling Mount is efficient and bright enough to tackle both complicated surgeries and minor prcoedures. Equipped with individual LED instead of halogen bulbs, these lights maintain a high level of brightness while also saving energy and emitting little to no heat output. The LED also have a rated lifespan of an impressive 50,000 hours. The lamps are also equipped with a center handle with a button within reach of a user's thumb. This center handle allows for easy, seamless movement of the lamphead as a whole, while the attached button can cycle through the six dimming levels available (see Dimming - Intensity Levels chart below).

These lights are also unique thanks to the precise light placement. The light is focused to a focal point, allowing users to manuever around the lamp without worrying about blocking the light. This focal point can be manuevered via the center handle or with either of the two handholds on the sides of the lampheads.

The Bovie System Two LED Surgical Light - Triple Ceiling Mount is designed for use in surgical suites and operating rooms, and the triple ceilign mount provides three times the coverage. LED has been proven to be more energy efficient and long-lasting, making these lights a valuable addition to any clinic or hospital.

Features

Bovie System Two LED Surgical Light - Triple Ceiling Mount Features

  • 130,000 lux output at 39.4″ (1 meter distance).
  • Five-stage light dimming and ENDO Mode with a 50,000-hour rated LED life.
  • Virtually zero heat generation and low energy consumption.
  • Ability to control all functions within the sterile field, including a sterile center control handle.
  • Advanced suspension arm design, excellent shadow control.

Specifications

Bovie System Two LED Surgical Light - Triple Ceiling Mount Specifications

  • Weight: ~155.5 lbs (70.5 Kg).
  • Dimensions:
    • Ceiling Rod: 2.5” (63.5 mm) Dia. x 9.0”-43.0”(228.6 -1092.2 mm) long (depending on ceiling height).
    • Ceiling Casting: 17.0” (431.8 mm) Dia. x 4.7” (119.4 mm) deep.
    • Light Head Assembly: 25.5” (648 mm) Dia. 4.75” (120 mm) deep.
    • Arm (articulated): 4.0” (102 mm) Dia. (tapered) x 26.0” (660 mm) long.
  • Rotations:
    • Ceiling Mount/Extension Arm Interface: Continuous.
    • Articulating/Extension Arm Interface: Continuous.
    • Articulating Arm Vertical Movement: +15 Degrees, -65 Degrees.
    • Articulating Arm/Yoke interface: Continuous.
    • Yoke/Lamp Head Interface: +/-165 Degrees (330° range).
  • Input Voltage: 100 - 240 VAC 50/60 Hz – Single Phase.
  • LED Life: 50,000 hours (average).
  • Power: 120 Watts.
  • Correlated Color Temperature: 4,200° Kelvin ±300°K.
  • Irradiance: 128 W/m2 (1 m).
  • Coloring Rendering Index: 95.
  • Focal Length: 39.4" (1 meter).
  • Light Field Diameter (adjustable): 9.5" - 14" (229 mm - 356 mm).

Dimming - Intensity Levels:

Intensity Level 100% 87.5% 75% 62.5% 50% Endo Mode
Lux 130,000 113,750 97,500 81,250 65,000 8,500

Frequently asked questions

Does the surgical light have multiple dimming levels?

Yes, the Bovie System Two LED Surgical Light provides six total intensity settings for versatile operation in the surgical suite.All levels can be controlled directly from the sterile field using the integrated thumb-operated button on the center handle.These settings include:* Five general dimming stages: 100%, 87.5%, 75%, 62.5%, and 50%.* One specialized ENDO Mode: Offering 8,500 Lux for minimally invasive procedures.

Does this light allow sterile field adjustment?

Yes, the Bovie System Two LED Surgical Light is specifically engineered for seamless adjustment directly within the sterile field during procedures.The control mechanism is centered around the sterile center handle located on each lamphead. This handle features an integrated, thumb-operated button that allows surgical staff to:

  • Cycle through six total lighting levels without compromising sterility.
  • Select one of the five standard dimming stages (ranging from 100% intensity down to 50%).
  • Activate the low-output ENDO Mode (8,500 Lux) for minimally invasive surgery.

Additionally, the center handle and side handholds enable precise physical maneuvering and adjustment of the light’s focal point.

Are there specific ceiling requirements for installation?

Yes, because this is a ceiling-mounted surgical lighting system, facility ceiling height information must be provided in the “Additional Notes” section during the checkout process. This ensures the articulated suspension arms are configured correctly for your specific operating room environment.

How long is the average lifespan of the LEDs in this surgical light system?

The LEDs have an average lifespan of 50,000 hours, contributing to low maintenance and reduced replacement costs.

What is the light output of each lamphead in the Bovie System Two LED Surgical Light?

Each lamphead provides a light output of up to 130,000 lux at 39.4 inches (1 meter).

Is the light field diameter adjustable?

Yes, the light field diameter is fully adjustable, ranging from 9.5 inches to 14 inches (229 mm to 356 mm). Users can precisely control this focus using the central handle integrated into the light head.

Does this surgical light minimize heat generation?

Yes, the Bovie System Two LED Surgical Light is designed with individual LEDs that help to maintain high brightness while “emitting little to no heat output,” which enhances comfort in the operating room.

Does it have good shadow control?

Yes, the Bovie System Two LED Surgical Light features excellent shadow control due to its advanced suspension arm design and precise light placement. This allows users to maneuver around the lamp without blocking the light.

What is the power consumption of the Bovie System Two LED Surgical Light?

The power consumption is 120 Watts, offering energy-efficient illumination.

What is the correlated color temperature of the Bovie System Two LED Surgical Light?

The correlated color temperature is 4,200° Kelvin ±300°K.
