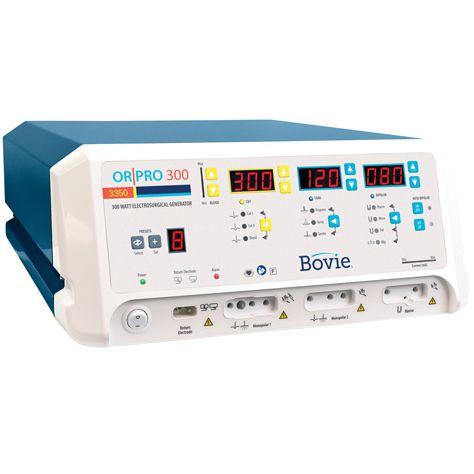

Bovie OR PRO 300 Electrosurgical Generator

Bovie OR PRO 300 Electrosurgical Generator
Key Features
  • SKU: BOV-A3350
  • Condition: Factory New
  • Warranty: 4 Years
  • Weight: 25.05 lb
  • Generator, Electrosurgery, Aaron OR|PRO 300, 300 Watt, 1/bx

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Bovie Ships from Manufacturer
  • MPN: A3350
  • Phone: (800) 251-3000
$6,828.83

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Bovie OR PRO 300 Electrosurgical Generator (#A3350) includes a 110 VAC Hospital-Grade Power Cord (15 feet), 220 VAC Hospital-Grade Power Cord (15 feet), and the User's Guide in CD format (#MC-55-230-001).

Warranty: 4 Years Limited - Free From Defects in Material and Workmanship.

The OR|PRO 300 is used to deliver RF energy via an assortment of surgical devices to cut, coagulate, and ablate different kinds of tissue in general, gynecologic, orthopedic, ENT, and urological procedures performed in an operating suite and procedure room.

The A3350 Electrosurgical Generator was designed in conjunction with OR clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. It offers 13 modes of surgical energy delivery, including special modalities such as the advanced Bovie Bipolar, Auto Bipolar, and special Laparoscopic modes. These modes were included to assist surgeons in tailoring all electrosurgery needs for their variety of surgical applications and user preferences.

It is designed with state-of-the-art safety features such as Bovie NEM and Bovie DED, which monitors all functions of the generator to ensure constant safety for the patient, doctor, and OR staff.

The A3350 OR PRO 300 improves upon and replaces the previous model A3250.

Features

Bovie OR PRO 300 Electrosurgical Generator Features

  • Bovie Bipolar (BBp): A pulsing coagulation for quick and powerful coagulation of tissue. The pulsing performance can be tailored specifically to achieve the optimal surgical effect. The feature is compatible with Bovie's Micro, Macro, and Standard Bipolar modes, and can be set to surgical preferences for critical procedures.
  • Auto Bipolar Intuitive Technology: Offers immediate and simplified tissue coagulation with minimal tissue damage. This feature automatically activates, coagulation, and deactivates for precise tissue coagulation and eliminates the need for a footswitch. It is also compatible with Bovie's Micro, Macro, and Standard Bipolar modes, and can be set to surgical preferences for critical procedures.
  • Surgical Memory Technology: The OR|PRO 300 recalls the last used power and mode. The unit's user preset can recall up to 10 presets and up to six bipolar output preferences.
  • Adjustable Power during Activation: During all activations, the power can be adjusted up or down in variable steps, giving surgeons more control at the surgical site.
  • Patient Safety:
    • Bovie NEM: This return electrode contact quality monitoring system is designed to minimize patient burns at the return electrode site.
    • Bovie FDFS: The tissue sensing technology measures tissue five million times a second and adjusts to varying impedances 5000 times a second for accurate energy delivery.
    • A visual Ammeter indicates real time current (mA) flowing through the patient.
  • Two Monopolar HP ports.
  • Dual activation tone alert.
  • Energy Settings:
    • Cut:
      • Cut I - A general cutting with a standard RF waveform used in open and endoscopic surgical procedures. Cut I is for use in a wide range of tissue with minimal hemostasis.
      • Cut II - Tailored specifically for Laparoscopic procedures, Cut II offers a precisely managed cutting energy that limits output for the minimizing of the potential risk of capacitive coupling and alternate site burns due to weakened insulation.
      • Blend (Level 1, 2, 3, and 4) - Blended cutting offers varying levels of hemostasis during a cut procedure providing increased control of bleeding at the surgical application site.
    • Coagulation:
      • Pinpoint - A general coagulation mode delivering rapid desiccation effects with minimal tissue damage.
      • Spray - Recommended for hemostasis in highly vascular or large surface areas and for non-contact tissue coagulation to control superficial bleeding. Spray mode permits dual, simultaneous activation of two monopolar accessories with audible dual activation tone alert.
      • Gentle - Offers more concentrated coagulation than in other modes. For instance, when coagulation is necessary in short amounts of time, reduced electrode carbonization is provided.
    • Bipolar:
      • Standard - Bipolar coagulation which gently coagulates tissue for minimal damage reducing carbonization and sticking.
      • Macro - Intense bipolar output allowing for aggressive coagulation, with cut-like effects over a wide range of tissue.
      • Micro - Fine bipolar coagulation for use in extremely gentle and precise surgical applications.
      • Bovie Bipolar - Exclusive to the OR|PRO 300 and the IDS-310, Bovie Bipolar is a pulsing bipolar coagualation for quick and powerful coagulation of tissue.

Specifications

Bovie OR PRO 300 Electrosurgical Generator Specifications

  • Contact Monitoring System: Bovie NEM.
  • Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10 to 40 degrees C).
  • Cooling System: Passive Cooling.
  • Technology: Isolated RF Output.
  • Connector Ports/Power Switch: Black.
  • Weight: < 20 lb (< 9.07 kg).
  • Dimensions: 14.75" (W) x 6.5" (H) x 18.1" (D) (37.5 cm x 16.5 cm x 46 cm).
Monopolar Watts Vpeak Max Voltage Crest Factor (Typical) Frequency
Cut I 300 1000 V 1.7 +/- 20% 490 kHz +/- 4.9 kHz
Cut II 300 750 V 1.7 +/- 20% 490 kHz +/- 4.9 kHz
Blend (1) 200 1320 V 1.8 +/- 20% 490 kHz +/- 4.9 kHz
Blend (2) 200 1475 V 2.0 +/- 20% 490 kHz +/- 4.9 kHz
Blend (3) 200 1650 V 2.2 +/- 20% 490 kHz +/- 4.9 kHz
Blend (4) 200 1870 V 2.4 +/- 20% 490 kHz +/- 4.9 kHz
Pinpoint Coagulation 120 1800 V 3.1 +/- 20% 490 kHz +/- 4.9 kHz
Spray Coagulation 120 4000 V 6.0 +/- 20% 350 to 450 kHz
Gentle Coagulation 120 450 V 1.6 +/- 20% 490 kHz +/- 4.9 kHz
Bipolar Watts Vpeak Max Voltage Crest Factor (Typical) Frequency
Macro Bipolar 150 600 V 1.5 +/- 20% 490 kHz +/- 4.9 kHz
Micro Bipolar 80 450 V 1.5 +/- 20% 490 kHz +/- 4.9 kHz
Standard Bipolar 50 300 V 1.5 +/- 20% 490 kHz +/- 4.9 kHz
Bovie Bipolar 225 250 V 1.5 +/- 20% 490 kHz +/- 4.9 kHz
Auto Bipolar 80 - - 490 kHz +/- 4.9 kHz

Accessories

Bovie OR PRO 300 Electrosurgical Generator Accessories

  • Bipolar Forceps Cord: (All Bovie and ConMed Forceps are compatible).
    • #BOV-A827V: Bovie Bipolar Forceps Cord.
    • #CNM-60-8046-001: ConMed Reusable Footswitching Bipolar Forceps Cable - 12'.

Frequently asked questions

What advanced patient safety features are used?

The Bovie OR PRO 300 is designed with several advanced monitoring systems to maximize patient safety and ensure precise surgical energy delivery:

  • Bovie NEM (Neutral Electrode Monitor): This crucial system continuously monitors the quality of the return electrode contact. If contact degradation is detected (trip point of 10 ohms or less), it alerts the user, significantly minimizing the risk of patient burns at the return electrode site.
  • Bovie FDFS (Fast Digital Feedback System): This tissue sensing technology measures tissue impedance five million times per second. It automatically adjusts the energy output up to 5,000 times per second, tailoring the RF energy delivery based on real-time tissue conditions.
  • Visual Ammeter: Provides the surgical team with real-time feedback by displaying the current (mA) flowing through the patient.
  • Dual Activation Tone Alert: Distinct tones clearly differentiate between monopolar and bipolar activations.
How many surgical energy modes does the OR PRO 300 have?

The Bovie OR PRO 300 is equipped with 13 versatile modes of surgical energy delivery. This wide selection provides flexibility for general, gynecologic, orthopedic, ENT, and urological procedures. Its modes include specialized options such as:

  • Dedicated Laparoscopic Cut II: Limits output voltage to reduce capacitive coupling risks.
  • Bovie Bipolar (BBp): A unique pulsing coagulation mode.
  • Auto Bipolar: Automatically activates and deactivates for tissue coagulation without requiring a footswitch.
Does it offer advanced bipolar technology?

Yes, the Bovie OR PRO 300 features a comprehensive suite of advanced bipolar technologies, offering superior control and precision for delicate surgical procedures.

The generator includes several specialized modes:

  • Bovie Bipolar (BBp): This proprietary mode utilizes pulsing coagulation to achieve a rapid, powerful tissue effect, allowing the surgeon to tailor the effect precisely. It provides a maximum output of 225 Watts.
  • Auto Bipolar Intuitive Technology: This feature automatically senses tissue impedance to achieve precise coagulation with minimal tissue damage, often eliminating the need for footswitch activation.

In addition, it offers standard bipolar modes (Micro, Macro, Standard) to address a wide range of coagulation intensity requirements.

Does this generator include user presets?

Yes, the Bovie OR PRO 300 features Surgical Memory Technology, designed to enhance surgeon control and efficiency. This system allows for rapid recall of preferred settings, including:

  • Recalling the last used power and mode settings.
  • Storing up to 10 user presets for various surgical configurations.
  • Saving up to six specific bipolar output preferences.
What are the cutting mode options?

The Bovie OR PRO 300 offers several cutting modes to suit various surgical needs:

  • Cut I: General cutting with minimal hemostasis.
  • Cut II: Designed specifically for laparoscopic procedures, limiting output to mitigate risks like capacitive coupling.
  • Blend Modes (1 through 4): Provide increasing levels of hemostasis control during the cut.
What surgical procedures is the Bovie OR PRO 300 suitable for?

The Bovie OR PRO 300 is suitable for a wide range of surgical procedures, including:

  • General surgery
  • Gynecologic procedures
  • Orthopedic procedures
  • ENT (Ear, Nose, and Throat) procedures
  • Urological procedures
What is the range of the contact monitoring system?

The contact monitoring system (Bovie NEM) has a range/trip point of 10 ohms or less over the entire operating range (10 to 40 degrees C).

Does the Bovie OR PRO 300 have adjustable power during activation?

Yes, the Bovie OR PRO 300 allows for adjustable power during all activations, providing flexibility and control during surgical procedures.
