Bovie MI-750 LED Procedure Light - Wall Mount

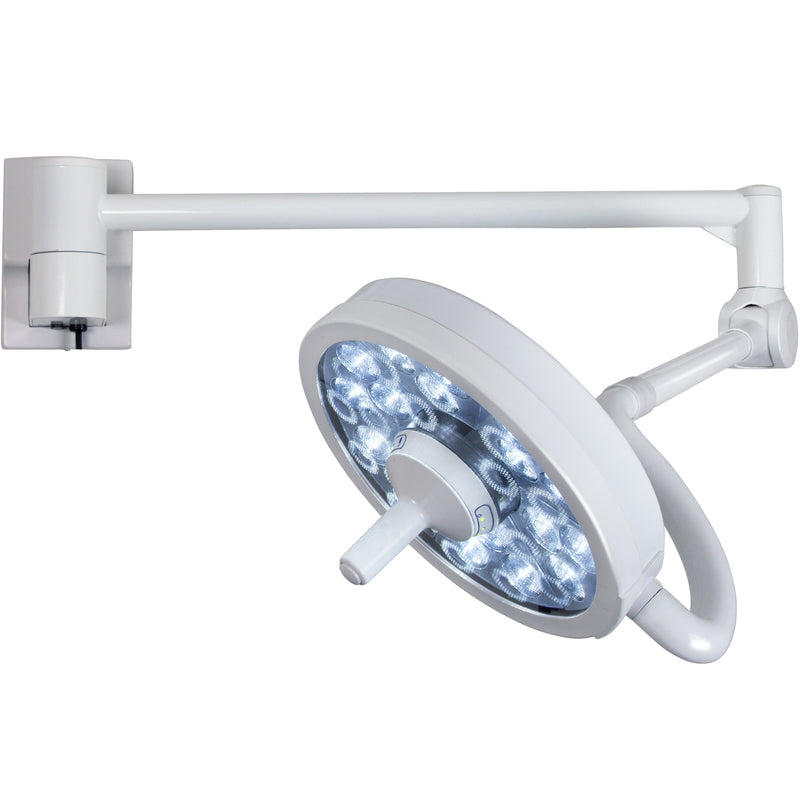

Bovie MI-750 LED Procedure Light - Wall Mount (061422)
Bovie MI-750 LED Procedure Light - Dimming Button Diagram
Bovie MI-750 LED Procedure Light - Wall Mount (061422)
Bovie MI-750 LED Procedure Light - Dimming Button Diagram
Key Features
  • SKU: BOV-XLDP-WM
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 3 Years
  • Weight: 51.5 lb
  • Offers 75,000 lux of light intensity for minor procedures
  • LED modules have a rated lifespan of 50,000 hours
  • 3 brightness levels to choose from
  • Heat-free light for caregiver and patient comfort

  • Learn more:

Contact The Manufacturer
  • MFR: Medical Illumination
    Ships from Manufacturer
  • MPN: XLDP-WM
  • Phone: (800) 831-1222
$3,715.00 $3,163.16

+ Free Shipping

Select a Configuration
Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Bovie MI-750 LED Procedure Light - Wall Mount (XLDP-WM / 061422) secures this multi-purpose light to any wall surface for compact storage. This model is also available with Backup Battery Pack with additional 7 hours of power.

Warranty: 3 Years.

The MI-750 LED is between the MI-1000 and MI-550 in every way. It’s size and illuminance make it useful for both surgical settings and examination rooms, with 3 brightness settings to choose from. The MI-750 LED is 14.5 inches in diameter, emitting 75,000 lux of light while maintaining a compact structure. The lamp is equipped with a center handle for easy maneuvering, which also doubles as the button for adjusting the light intensity. Even with 18 LED units in the housing, this lamp emits little to no heat, keeping both users and patients comfortable.

The MI-750 LED is ideal for nearly any procedure, whether it’s minor surgery or diagnosing a patient. Whatever purpose this lamp serves, the wall mount enables a wide range of movement while still staying isolated from sensitive equipment. It’s maneuverable with one hand, leaving caregivers with more time for addressing the patient’s needs.

Features

Bovie MI-750 LED Procedure Light - Wall Mount Features

  • Offers 75,000 lux of light intensity for minor procedures.
  • LED modules have a rated lifespan of 50,000 hours.
  • 3 brightness levels to choose from.
  • Heat-free light for caregiver and patient comfort.
  • Center handle is removable for sterilization.

Specifications

Bovie MI-750 LED Procedure Light - Wall Mount Specifications

  • Light Head Weight: 9 lb (4.1 kg).
  • Light Head Diameter: 14.5” (37 cm).
  • Light Intensity Output: 75,000 lux (6,968 footcandles).
  • Light Source: Light Emitting Diode (LED) (27 W).
  • Rated LED Lifespan: 50,000 hours.
  • Number of LED: 18.
  • Light Color Temperature: 4,300° Kelvin.
  • Color Rendering Index: 97.
  • Light Field Diameter: 7.7” (20 cm).
  • Focal Length: 39.4” (1 m).
  • Depth of Illumination: 26.5” (67 cm).
  • Dimming Levels: 3.
    • Level 3 (100%): 75,000 lux (6,968 footcandles).
    • Level 2 (75%): 56,200 lux (5,221 footcandles).
    • Level 1 (50%): 37,500 lux (3,484 footcandles).
  • Arm Rotation: 540°.
  • Light Head Rotation:300°.
  • Power Supply Circuit: 100 - 240 VAC, 50 / 60 Hz.
  • Power Handling Capacity: 65 W.
  • Shipping Weight: 47 lb (21.3 kg).
  • Shipping Dimensions: 36” (L) x 23” (W) x 18” (H) (91.4 cm x 58.4 cm x 45.7 cm).

Frequently asked questions

What is the maximum light intensity output?

The Bovie MI-750 LED Procedure Light delivers a high-intensity output suitable for minor surgical procedures and detailed examinations. The maximum intensity is 75,000 lux (6,968 footcandles).

Key features related to the light output and quality include:

  • Color Accuracy: Features a high Color Rendering Index (CRI) of 97 and a color temperature of 4,300° Kelvin for accurate tissue color representation.
  • Adjustable Dimming: Light intensity can be controlled across three distinct levels via the removable center handle:
    • Level 3 (100%): 75,000 lux
    • Level 2 (75%): 56,200 lux
    • Level 1 (50%): 37,500 lux
  • Heat-Free Operation: The 18 LED units operate without generating heat, ensuring comfort during extended use.
Does this LED procedure light have long-lasting modules?

Yes, the Bovie MI-750 is designed for long-term use and minimal maintenance. The powerful LED modules are rated for an exceptional operational lifespan of 50,000 hours, ensuring reliable illumination for many years.

Does the Bovie MI-750 light have adjustable brightness?

Yes, the Bovie MI-750 LED Procedure Light features three distinct dimming levels, allowing you to precisely control the light intensity for various procedures and examinations. The light is easily adjusted using the removable center handle.

The available brightness settings are:

  • Level 3 (100%): 75,000 lux (Maximum Output)
  • Level 2 (75%): 56,200 lux
  • Level 1 (50%): 37,500 lux
Does the Bovie MI-750 have an ideal color temperature?

The Bovie MI-750 LED Procedure Light provides a 4,300° Kelvin color temperature, which is ideal for medical examinations and procedures, offering a natural and comfortable light.

What is the rotation range of the arm and light head?

The Bovie MI-750 is designed for exceptional maneuverability, allowing for precise light placement during procedures. The extensive range of motion includes: * Arm Rotation: A wide 540° rotation. * Light Head Rotation: 300° rotation. This flexibility is controlled via the center handle, which allows for easy, single-handed positioning and adjustment.

Does the light support universal voltage power input?

Yes, the Bovie MI-750 LED Procedure Light features a universal power supply circuit, ensuring compatibility with most electrical systems worldwide. This makes it a versatile solution for clinical environments.

Key power specifications include:

  • Input Voltage Range: 100 - 240 VAC
  • Frequency: 50 / 60 Hz
  • Maximum Power Handling Capacity: 65 W

Additionally, the light is energy efficient, with the 18 high-output LED units consuming only 27 W during operation.

What is the specific light field diameter?

The Bovie MI-750 LED Procedure Light is designed to provide highly focused, high-intensity illumination (up to 75,000 lux) ideal for detailed examinations and minor procedures.Here are the specific parameters for the light field:

  • Light Field Diameter: 7.7 inches (20 cm)
  • Depth of Illumination: 26.5 inches (67 cm)
  • Focal Length: 39.4 inches (1 m)

This combination ensures a focused beam with excellent depth, providing clear visibility and superior color accuracy (CRI 97) exactly where it is needed.

Is the Bovie MI-750 LED procedure light heat-free?

Yes, the Bovie MI-750 LED Procedure Light is designed for virtually heat-free operation.

This is a significant benefit, as the lack of heat ensures comfort and safety for both the patient and the medical staff, even during extended procedures.

Is the control handle sterilizable?

Yes, the Bovie MI-750 LED Procedure Light is designed for high hygiene standards. The center control handle is easily removable, allowing for quick and complete sterilization between procedures. This feature is crucial for maintaining a sterile clinical environment. The handle also doubles as the intensity adjustment button.

Does the procedure light offer excellent color rendering?

Yes, the Bovie MI-750 LED Procedure Light provides excellent color rendering with a Color Rendering Index (CRI) of 97. This high CRI ensures that colors are accurately represented under the light, which is crucial for precise visual feedback during medical procedures.
