Description

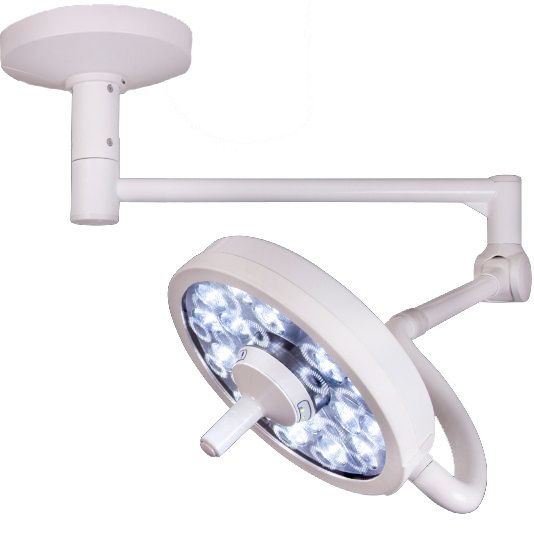

The Bovie MI-750 LED Procedure Light - Single Ceiling Mount takes this multipurpose LED light and elevates it. This model is available standard or with a backup battery pack accessory, which provides an additional seven hours of power. Customers can also choose the length of the ceiling rod in the Configurations.

Warranty: 3 Years.

The Bovie MI-750 LED Procedure Light - Single Ceiling Mount houses 18 LED units in the light head, with a center handle grip for placement. This same handle also has a convenient button on the end that switches between the 3 brightness settings. The MI-750 LED ranges in brightness from 75,000 lux to 37,500 lux, making it ideal for a variety of minor surgical and examination procedures.

The MI-750 LED is versatile, providing near heat-free light coverage for patients and users alike. This mount comes with a wide range of movement, with an arm rotation of 540°. In addition, the ceiling mount makes it easy to position and direct the light, while maintaining reliable light coverage.

Features

Bovie MI-750 LED Procedure Light - Single Ceiling Mount Features

  • Over 50,000 hours of light, on average.
  • Center handle can be removed for sterilization procedures.
  • LEDs are proven to be more energy-efficient than halogen bulbs.
  • Backup battery accessory can provide seven hours of power without a plug-in.
  • 540° movement on the articulated arm.

Specifications

Bovie MI-750 LED Procedure Light - Single Ceiling Mount Specifications

  • Light Head Weight: 9 lb (4.1 kg).
  • Light Head Diameter: 14.5” (37 cm).
  • Light Intensity Output: 75,000 lux (6,968 footcandles).
  • Light Source: Light Emitting Diode (LED) (27 W).
  • Rated LED Lifespan: 50,000 hours.
  • Number of LED: 18.
  • Light Color Temperature: 4,300 Kelvin.
  • Color Rendering Index: 97.
  • Light Field Diameter: 7.7” (20 cm).
  • Focal Length: 39.4” (1 m).
  • Depth of Illumination: 26.5” (67 cm).
  • Dimming Levels: 3.
    • Level 3 (100%): 75,000 lux (6,968 footcandles).
    • Level 2 (75%): 56,200 lux (5,221 footcandles).
    • Level 1 (50%): 37,500 lux (3,484 footcandles).
  • Arm Rotation: 540°.
  • Light Head Rotation: 300°.
  • Power Supply Circuit: 100 - 240 VAC, 50 / 60 Hz.
  • Power Handling Capacity: 65 W.
  • Shipping Weight: 59 lb (26.8 kg).
  • Shipping Dimensions: 36” (L) x 23” (W) x 18” (H) (91.4 cm x 58.4 cm x 45.7 cm).

Configurations

Bovie MI-750 LED Procedure Light - Single Ceiling Mount Configurations

  • #XLDP-SC: Standard (#061424) with 9" Ceiling Rod (#1001461-9).
  • #XLDP-SC-CR20: Standard (#061424) with 20" Ceiling Rod (#1001461-20).
  • #XLDP-SC-ECK-30: Standard (#061424) with 30" Ceiling Rod (#1001461-30).
  • #XLDP-SC-ECK-40: Standard (#061424) with 40" Ceiling Rod (#1001461-40).
  • #XLDP-SC-ECK-50: Standard (#061424) with 50" Ceiling Rod (#1001461-50).
  • #XLDP-SCB: With Battery Back-up (#061424B) and 9" Ceiling Rod (#1001461-9).
  • #XLDP-SCB-CR20: With Battery Back-up (#061424B) and 20" Ceiling Rod (#1001461-20).
  • #XLDP-SCB-ECK-30: With Battery Back-up (#061424B) and 30" Ceiling Rod (#1001461-30).
  • #XLDP-SCB-ECK-40: With Battery Back-up (#061424B) and 40" Ceiling Rod (#1001461-40).
  • #XLDP-SCB-ECK-50: With Battery Back-up (#061424B) and 50" Ceiling Rod (#1001461-50).

Ceiling Height Calculation:

Ceiling Height (Distance to Floor)  Ceiling Rod Length From Mount to Bottom of Extension Arm Head Room to Bottom of Extension Arm
8'0" - 8'10" (2438 - 2692 mm) 9" (229 mm) 12.25" (311 mm) 83.75" - 93.75" (2127 - 2381 mm)
8'11" - 9'8" (2718 - 2946 mm) 20" (508 mm) 23.25" (591 mm) 83.75" - 92.75" (2127 - 2381 mm)
9'9" - 10'6" (2972 - 3200 mm) 30" (762 mm) 33.25" (845 mm) 83.75" - 92.75" (2127 - 2381 mm)
10'7" - 11'4" (3226 - 3454 mm) 40" (1016 mm) 43.25" (1099 mm) 83.75" - 92.75" (2127 - 2381 mm)
11'5" - 12'2" (3480 - 3708 mm) 50" (1270 mm) 53.25" (1353 mm) 83.75" - 92.75" (2127 - 2381 mm)

Literature

Frequently asked questions

Is the color temperature ideal for procedures?

Yes, the Bovie MI-750 light features a color temperature of 4,300 Kelvin.

This setting is paired with an outstanding Color Rendering Index (CRI) of 97, which is essential for clinical environments. This combination ensures highly accurate and clear tissue rendition, providing excellent visibility during examinations and minor surgical procedures.

Is the light compatible with various power standards?

Yes, the Bovie MI-750 LED Procedure Light is designed for global versatility, supporting a wide range of electrical inputs to ensure seamless integration into various clinical environments. It operates on a power source of 100 – 240 VAC at 50 / 60 Hz.

Does the MI-750 LED light produce much heat?

The Bovie MI-750 LED Procedure Light is specifically engineered to minimize heat emission. The 18 integrated LED units generate near heat-free illumination.

This feature significantly enhances comfort and safety for both the patient and the practitioner, making the light suitable for prolonged use during minor surgical or examination procedures.

Does the light have a high Color Rendering Index (CRI)?

The Bovie MI-750 LED Procedure Light features an excellent Color Rendering Index (CRI) of 97. This high CRI ensures highly accurate color representation, which is crucial for detailed examinations and procedures.

How is the light intensity easily controlled?

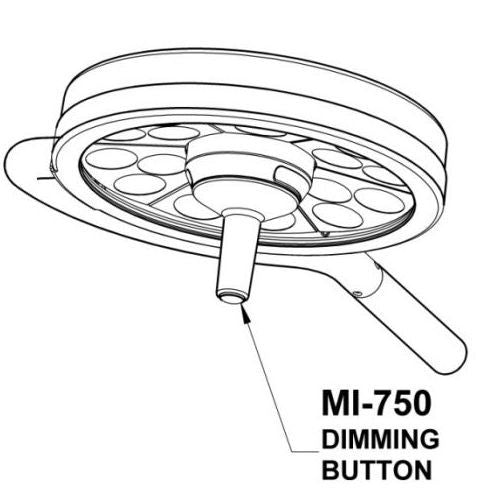

The light intensity of the Bovie MI-750 is conveniently controlled by a button located directly on the center handle grip. This strategic placement allows for quick adjustments during procedures without disturbing the light head’s position.This unit provides three distinct dimming levels:

  • 100% (Maximum): 75,000 lux
  • 75% (Medium)
  • 50% (Minimum): 37,500 lux

For hygiene purposes, the center handle grip is also removable, which simplifies the process of sterilization.

Does the light feature superior adjustability?

Yes, the Bovie MI-750 is highly adjustable for precise light placement during procedures. It features:

  • An expansive 540° rotation on the robust articulated arm.
  • 300° rotation for the light head itself.

Positioning is easily managed using the functional center handle grip, which is also removable for thorough sterilization.

Does the handle remove for sterilization?

Yes, the Bovie MI-750 LED Procedure Light features a removable center handle that can be sterilized, which helps maintain a hygienic environment for medical procedures.

Is a battery backup option available?

Yes, select configurations of the Bovie MI-750 LED Procedure Light include a backup battery that provides up to seven hours of power, ensuring uninterrupted operation.

Is this light proudly made in the USA?

Yes, the Bovie MI-750 LED Procedure Light has its Country of Origin listed as the USA. This indicates production adheres to high manufacturing and quality standards.

How is the light maneuvered and controlled?

The Bovie MI-750 offers extensive control and maneuverability, primarily managed through the central handle grip.

Key features for operation and hygiene include:

  • Exceptional Maneuverability: The articulated arm allows for a wide range of movement, featuring 540° arm rotation and 300° light head rotation for precise targeting of the light field.
  • Integrated Brightness Control: A convenient button on the center handle allows operators to cycle through the three distinct intensity levels: 100% (75,000 lux max), 75%, and 50% (37,500 lux min).
  • Sterilization Ready: The center handle grip is designed to be removable to facilitate easy and thorough sterilization procedures.
