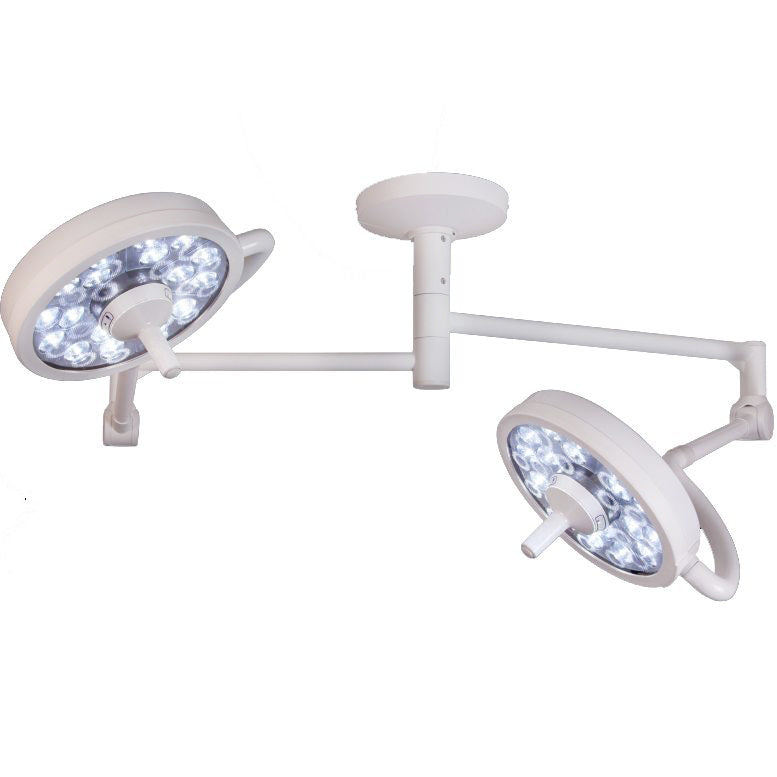

Bovie MI-750 LED Procedure Light - Dual Ceiling Mount

Bovie MI-750 LED Procedure Light - Dual Ceiling Mount (

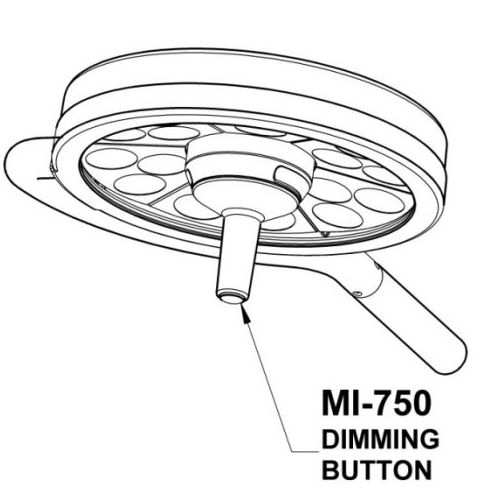

Bovie MI-750 LED Procedure Light - Dimming Button Diagram
Bovie MI-750 LED Procedure Light - Dual Ceiling Mount (
Bovie MI-750 LED Procedure Light - Dimming Button Diagram
Key Features
  • SKU: BOV-XLDP-DC
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 3 Years
  • Produces up to 75,000 lux of illumination
  • Little to no heat emittance for comfort
  • Dual ceiling mount provides full movement
  • Three brightness settings fit any exam or minor surgery

  • Learn more:

Contact The Manufacturer
  • MFR: Medical Illumination
    Ships from Manufacturer
  • MPN: XLDP-DC
  • Phone: (800) 831-1222
$6,528.01

+Shipping

Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Oversized Shipping

Return Policy

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Bovie MI-750 LED Procedure Light - Dual Ceiling Mount combines two MI-750 LED multipurpose lights to one mount, allowing for complete light coverage and a reduction in shadows. Customers have the choice of ceiling rod length in Configurations.

Warranty: 3 Years.

The MI-750 LED Procedure Light - Dual Ceiling Mount is unique in design. Instead of mounting both lights on one yoke, each light head is attached to its own articulated arm stacked on top of each other. With this configuration, the arms can swivel side-to-side, without the lights interfering with each other. Users can freely position the lights, with the ability to provide head-to-toe light coverage with the two lamp heads. Each light is equipped with 18 LED units, offering 36 LEDs that produce maximum brightness and clarity for procedures. Each light also comes with 3 brightness settings, which can be adjusted using the button on the tip of the center handle.

The MI-750 LED Double Ceiling Mount is incredibly versatile and ideal for many treatment scenarios. With 75,000 lux of illumination and little to no heat emittance, this light is comfortable and useful for both minor surgical procedures and patient examinations.

Features

Bovie MI-750 LED Procedure Light - Dual Ceiling Mount Features

  • Two LED light heads that produce up to 75,000 lux of illumination.
  • More energy-efficient than halogen lights.
  • Center handle is removable for sterilization.
  • Three brightness settings to fit any treatment scenario.
  • Dual ceiling mount provides full movement without the light heads interfering with each other.

Specifications

Bovie MI-750 LED Procedure Light - Dual Ceiling Mount Specifications

  • Light Head Weight: 9 lb (4.1 kg) per light head.
  • Light Head(s) Diameter: 14.5” (37 cm).
  • Light Intensity Output: 75,000 lux (6,968 footcandles).
  • Light Source: Light Emitting Diode (LED) (27 W).
  • Rated LED Lifespan: 50,000 hours.
  • Number of LED: 36 (18 per head).
  • Light Color Temperature: 4,300 Kelvin.
  • Color Rendering Index: 97.
  • Light Field Diameter: 7.7” (20 cm).
  • Focal Length: 39.4” (1 m).
  • Depth of Illumination: 26.5” (67 cm).
  • Dimming Levels: 3.
    • Level 3 (100%): 75,000 lux (6,968 footcandles).
    • Level 2 (75%): 56,200 lux (5,221 footcandles).
    • Level 1 (50%): 37,500 lux (3,484 footcandles).
  • Arm Rotation: 540°.
  • Light Head Rotation: 300°.
  • Power Supply Circuit: 100 - 240 VAC, 50 / 60 Hz.
  • Power Handling Capacity: 65 W.
  • Shipping Weight: (2 packages).
    • 72 lb (32.7 kg).
    • 32 lb (14.5 kg).
  • Shipping Dimensions: (2 packages).
    • 36” (L) x 23” (W) x 18” (H) (91.4 cm x 58.4 cm x 45.7 cm).
    • 36” (L) x 23” (W) x 12” (H) (91.4 cm x 58.4 cm x 30.5 cm).

Configurations

Bovie MI-750 LED Procedure Light - Dual Ceiling Mount Configurations

  • #XLDP-DC: With 9" Ceiling Rod (#1001461-9).
  • #XLDP-DC-CR20: With 20" Ceiling Rod (#1001461-20).
  • #XLDP-DC-ECK-30: With 30" Ceiling Rod (#1001461-30).
  • #XLDP-DC-ECK-40: With 40" Ceiling Rod (#1001461-40).
  • #XLDP-DC-ECK-50: With 50" Ceiling Rod (#1001461-50).

Ceiling Height Calculation:

Ceiling Mounting Height (Distance to Floor) Ceiling Rod Length From Mount to Bottom of Extension Arm Head Room to Bottom of Extension Arm
8'0" - 8'10" (2438 - 2692 mm) 9" (229 mm) [#1001461-9] 16.25" (413 mm) 79.75" - 89.75" (2026 - 2280 mm)
8'11" - 9'8" (2718 - 2946 mm) 20" (508 mm) [#1001461-20] 27.25" (692 mm) 79.75" - 88.75" (2026 - 2254 mm)
9'9" - 10'6" (2972 - 3200 mm) 30" (762 mm) [#1001461-30] 37.25" (946 mm) 79.75" - 88.75" (2026 - 2254 mm)
10'7" - 11'4" (3226 - 3454 mm) 40" (1016 mm) [#1001461-40] 47.25" (1200 mm) 79.75" - 88.75" (2026 - 2254 mm)
11'5" - 12'2" (3480 - 3708 mm) 50" (1270 mm) [#1001461-50] 57.25" (1454 mm) 79.75" - 88.75" (2026 - 2254 mm)
