Bovie MI-550 LED Examination Light - Single Ceiling Mount

Name: Bovie MI-550 LED Examination Light - Single Ceiling Mount
Brand: Medical Illumination
SKU: BOV-XLDE-SC
Price: 2433.74 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Bovie MI-550 LED Examination Light - ...

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: BOV-XLDE-SC
Condition: Factory New
Country of Origin: USA
Warranty: 3 Years
Heat-free light source for patient's comfort
Two brightness levels and accurate color rendering
Lamp head can rotate 300°
Available with different length ceiling rods
Learn more:

Contact The Manufacturer

MFR: Medical Illumination

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: XLDE-SC

MPN: XLDE-SC-CR20

MPN: XLDE-SC-ECK-30

MPN: XLDE-SC-ECK-40

MPN: XLDE-SC-ECK-50
Phone: (800) 831-1222

$2,433.74

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

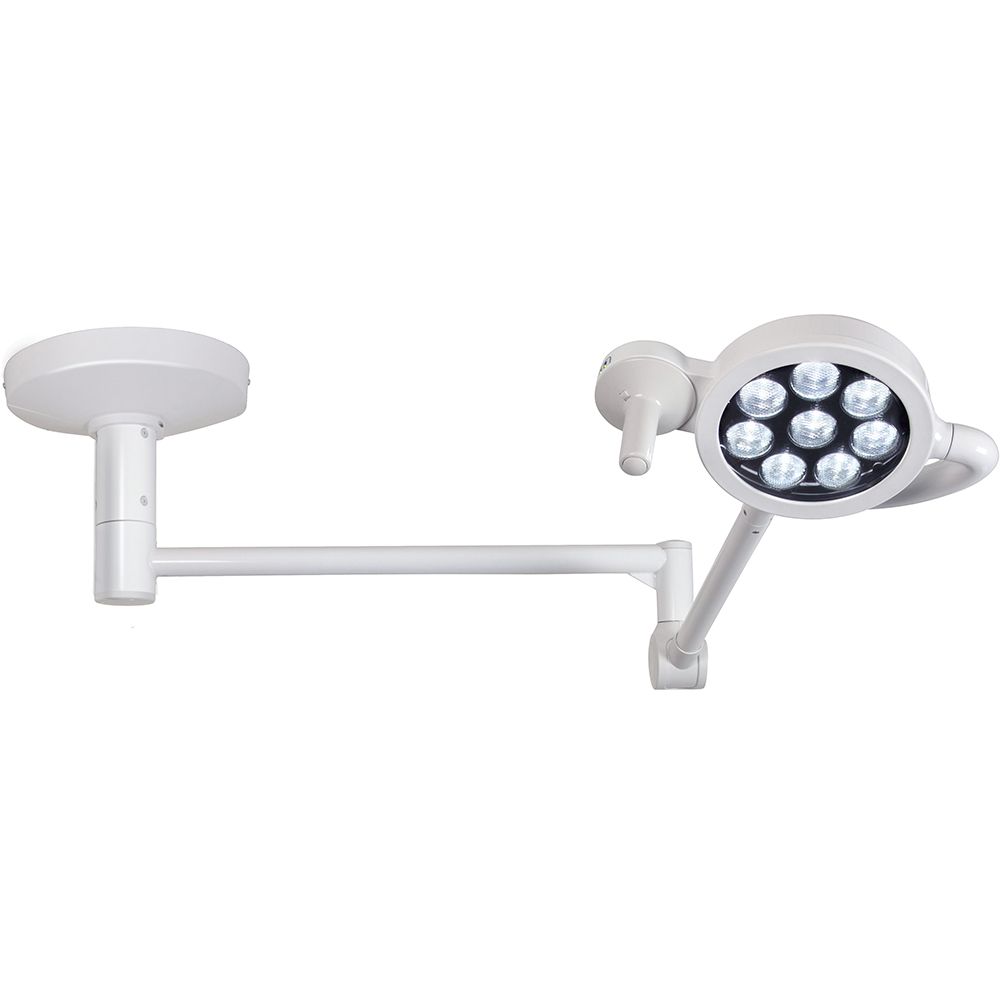

The Bovie MI-550 LED Examination Light - Single Ceiling Mount provides 55,000 lux of illumination for thousands of hours for long-term use. The ceiling mount keeps the light elevated and away from delicate equipment, while still staying within easy reach of the care provider. It's available with a variety of ceiling rods (see Configurations).

Warranty: 3 Years.

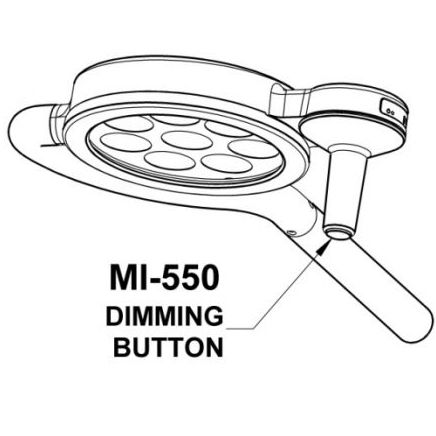

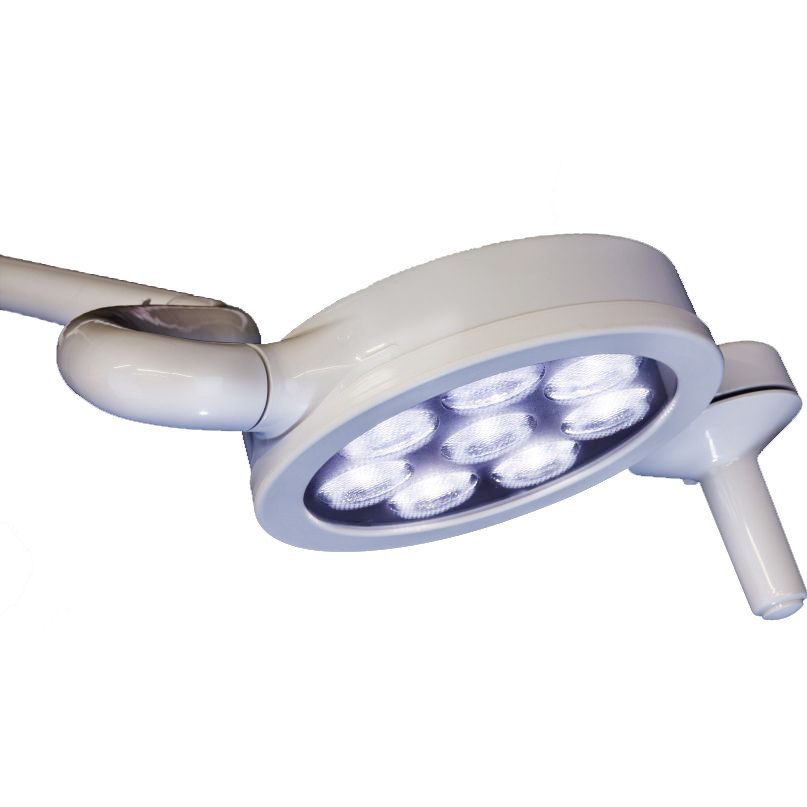

The MI-550 LED Examination Light - Single Ceiling Mount keeps the diagnostic light elevated for tall or tight quarters. The lamp head itself is equipped with 8 LED units, in a housing that spans 9.2 inches in diameter. The side handle is removable for sterilization and contains a convenient dimming switch within easy reach.

With the single ceiling mount, this lamp is ideal for nearly any examination and diagnostic area. The LED source provides lower maintenance costs and long-lasting light up to 50,000 hours on average. The lamp is mounted in two articulating arms with a wide range of movement for any space.

Features

Bovie MI-550 LED Examination Light - Single Ceiling Mount Features

Convenient handle placed on the side to reduce shadows.
Two brightness levels for a variety of applications.
Accurate color rendering with a CRI of 97.
Handle can be removed for sterilization.
Lamp head can rotate 300°.
Heat-free light source for patient’s comfort.

Specifications

Bovie MI-550 LED Examination Light - Single Ceiling Mount Specifications

Light Head Weight: 6.9 lb (3.1 kg).
Light Head Diameter: 9.2” (23 cm).
Light Intensity Output: 55,000 lux (5,110 footcandles).
Light Source: Light Emitting Diode (LED) (16 W).
Rated LED Lifespan: 50,000 hours.
Number of LED’s: 8.
Light Color Temperature: 4,300 Kelvin.
Color Rendering Index: 97.
Light Field Diameter: 6” (15 cm).
Focal Length: 24” (61 cm).
Dimming Levels: 2.

Level 2: 55,000 lux (5,110 footcandles).
Level 1: 27,500 lux (2,555 footcandles).

Arm Rotation: 540°.
Light Head Rotation: 300°.
Power Supply Circuit: 100 - 240 VAC, 50 / 60 Hz.
Power Handling Capacity: 65 W.
Shipping Weight: 59 lb (26.8 kg).
Shipping Dimensions: 36” (L) x 23” (W) x 18” (H) (91 cm x 58 cm x 46 cm).

Configurations

Bovie MI-550 LED Examination Light - Single Ceiling Mount Configurations

#XLDE-SC: With 9" Ceiling Rod (#1001461-9).
#XLDE-SC-CR20: With 20" Ceiling Rod (#1001461-20).
#XLDE-SC-ECK-30: With 30" Ceiling Rod (#1001461-30).
#XLDE-SC-ECK-40: With 40" Ceiling Rod (#1001461-40).
#XLDE-SC-ECK-50: With 50" Ceiling Rod (#1001461-50).

Ceiling Height (Distance to Floor)	Ceiling Rod Length	From Mount to Bottom of Extension Arm	Head Room to Bottom of Extension Arm
8'0" - 8'10" (2438 - 2692 mm)	9" (229 mm)	12.25" (311 mm)	83.75" - 93.75" (2127 - 2381 mm)
8'11" - 9'8" (2718 - 2946 mm)	20" (508 mm)	23.25" (591 mm)	83.75" - 92.75" (2127 - 2381 mm)
9'9" - 10'6" (2972 - 3200 mm)	30" (762 mm)	33.25" (845 mm)	83.75" - 92.75" (2127 - 2381 mm)
10'7" - 11'4" (3226 - 3454 mm)	40" (1016 mm)	43.25" (1099 mm)	83.75" - 92.75" (2127 - 2381 mm)
11'5" - 12'2" (3480 - 3708 mm)	50" (1270 mm)	53.25" (1353 mm)	83.75" - 92.75" (2127 - 2381 mm)

Literature

Bovie MI-550 LED Examination Light - Single Ceiling Mount Literature

Bovie MI LED Series Brochure

Bovie MI LED Series Installation Service Manual

Bovie MI LED Series Specifications
