Bovie MI-550 LED Examination Light - Double Ceiling Mount

Name: Bovie MI-550 LED Examination Light - Double Ceiling Mount
Brand: Medical Illumination
SKU: BOV-XLDE-DC
Price: 4597.72 USD
Availability: InStock

Bovie MI-550 LED Examination Light - ...

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: BOV-XLDE-DC
Condition: Factory New
Country of Origin: USA
Warranty: 3 Years
Conveniently placed handles allow easy maneuvering
Near-zero heat emittance for comfort
Lamp head rotates 300°
Available with different length ceiling rods
Learn more:

Contact The Manufacturer

MFR: Medical Illumination

Ships from Manufacturer

Ships from Manufacturer

Ships from Manufacturer

Ships from MFI Medical

Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: XLDE-DC

MPN: XLDE-DC-CR20

MPN: XLDE-DC-ECK-30

MPN: XLDE-DC-ECK-40

MPN: XLDE-DC-ECK-50
Phone: (800) 831-1222

$4,597.72

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

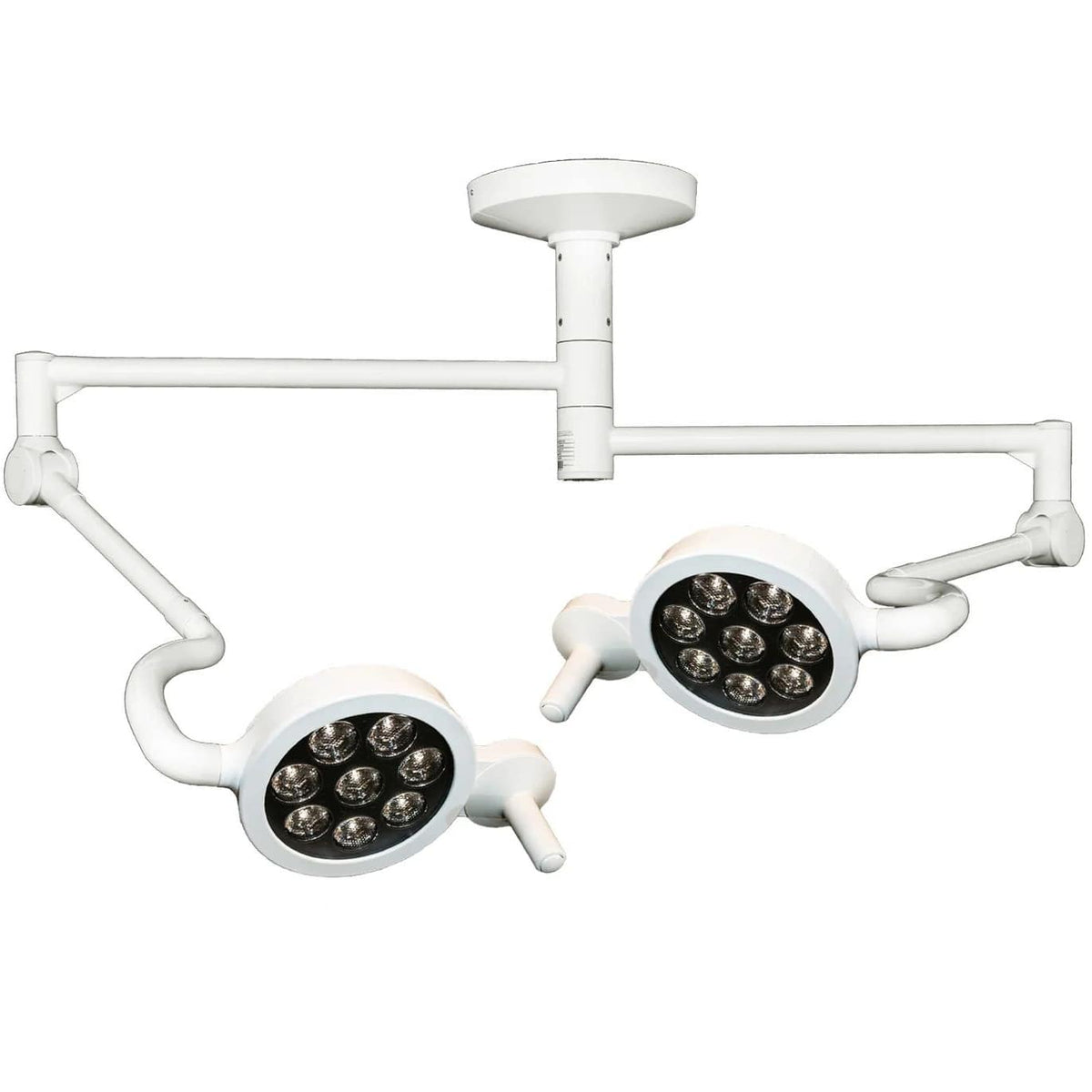

The Bovie MI-550 LED Examination Light - Double Ceiling Mount offers double the amount of energy-efficient light with dual MI-550 LED lamps, and 16 LEDs. It's available with a variety of ceiling rod lengths to accommodate ceiling heights.

Warranty: 3 Years.

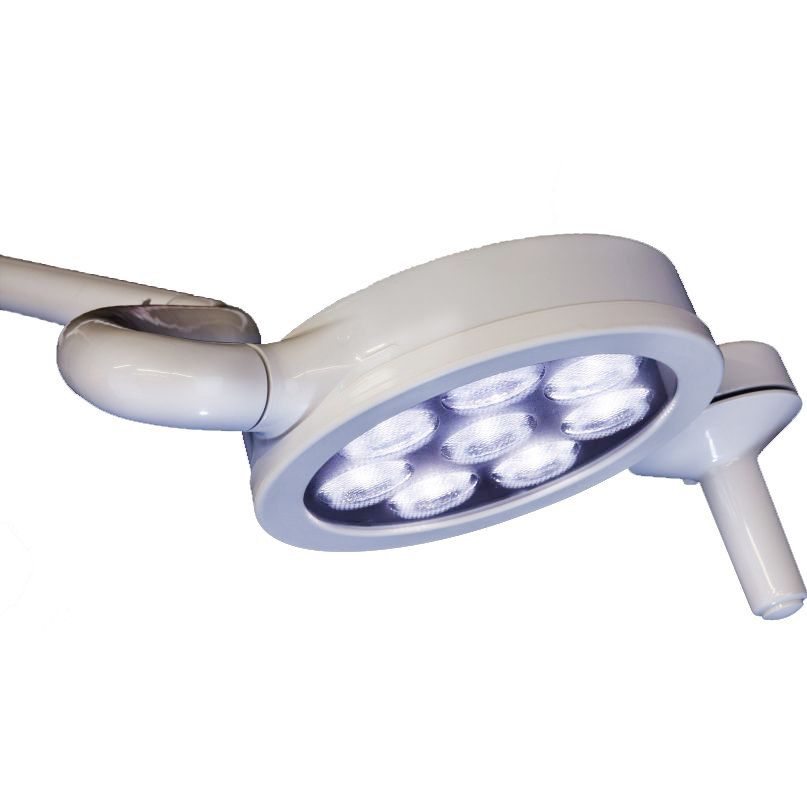

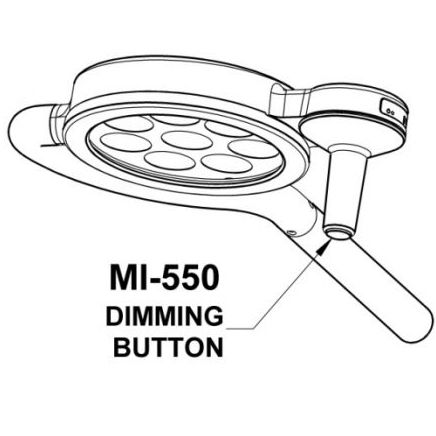

The Bovie MI-550 LED Examination Light - Double Ceiling Mount not only mounts two of the MI-550 LED lights to a single base, but it does so while allowing them a free range of movement. The articulated arms securing the lights are stacked on top of each other, so neither one interferes with the other’s movement. Each light contains 8 LEDs, and is equipped with a handle that doubles as the button to switch between brightness levels.

The lights can be dimmed between two levels: 55,000 lux and 27,500 lux. With double the light coverage, this configuration is ideal for up-close examinations in close quarters, such as in ICU units, hospitals, or clinics.

Features

Bovie MI-550 LED Examination Light - Double Ceiling Mount Features

Two MI-550 LED units with 16 LEDs combined.
Small diameter allows for compact placement.
Conveniently placed handles allow easy maneuvering, and can be removed for sterilization.
Lamp head rotates 300° for easy light direction.
Near-zero heat emittance to keep patients and users comfortable.

Specifications

Bovie MI-550 LED Examination Light - Double Ceiling Mount Specifications

Light Head Weight: 6.9 lb (3.1 kg).
Light Head Diameter: 9.2” (23 cm).
Light Intensity Output: 55,000 lux (5,110 footcandles).
Light Source: Light Emitting Diode (LED) (16 W).
Rated LED Lifespan: 50,000 hours.
Number of LEDs: 16 (8 per light head).
Light Color Temperature: 4,300 Kelvin.
Color Rendering Index: 97.
Light Field Diameter: 6” (15 cm).
Focal Length: 24” (61 cm).
Dimming Levels: 2.
- Level 2: 55,000 lux (5,110 footcandles).
- Level 1: 27,500 lux (2,555 footcandles).
Arm Rotation: 540°.
Light Head Rotation: 300°.
Power Supply Circuit: 100 - 240 VAC, 50 / 60 Hz.
Power Handling Capacity: 65 W.
Shipping Weight: (2 boxes).
- 59 lb (27 kg).
- 32 lb (14.5 kg).
Shipping Dimensions: (2 boxes).
- 36” (L) x 23” (W) x 18” (H) (91 cm x 58 cm x 46 cm).
- 36” (L) x 23” (W) x 12” (H) (91 cm x 58 cm x 30.5 cm).

Configurations

Bovie MI-550 LED Examination Light - Double Ceiling Mount Configurations

#XLDE-DC: With 9" Ceiling Rod (#1001461-9).
#XLDE-DC-CR20: With 20" Ceiling Rod (#1001461-20).
#XLDE-DC-ECK-30: With 30" Ceiling Rod (#1001461-30).
#XLDE-DC-ECK-40: With 40" Ceiling Rod (#1001461-40).
#XLDE-DC-ECK-50: With 50" Ceiling Rod (#1001461-50).

Ceiling Mounting Height (Distance to Floor)	Ceiling Rod Length	Mount to Bottom of Articulating Arm	Head Room to Bottom of Extension Arm
8'0" - 8'10" (2438 - 2692 mm)	9" (229 mm)	16.25" (413 mm)	79.75" - 89.75" (2026 - 2280 mm)
8'11" - 9'8" (2718 - 2946 mm)	20" (508 mm)	27.25" (692 mm)	79.75" - 88.75" (2026 - 2254 mm)
9'9" - 10'6" (2972 - 3200 mm)	30" (762 mm)	37.25" (946 mm)	79.75" - 88.75" (2026 - 2254 mm)
10'7" - 11'4" (3226 - 3454 mm)	40" (1016 mm)	47.25" (1200 mm)	79.75" - 88.75" (2026 - 2254 mm)
11'5" - 12'2'" (3480 - 3708 mm)	50" (1270 mm)	57.25" (1454 mm)	79.75" - 88.75" (2026 - 2254 mm)

Literature

Bovie MI-550 LED Examination Light - Double Ceiling Mount Literature

Bovie MI LED Series Brochure

Bovie MI LED Series Installation Service Manual

Bovie MI LED Series Specifications
