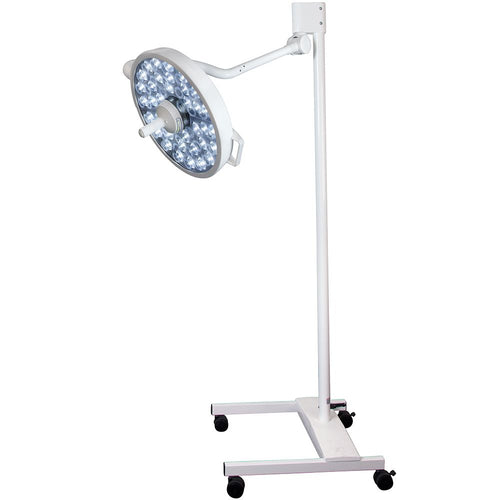

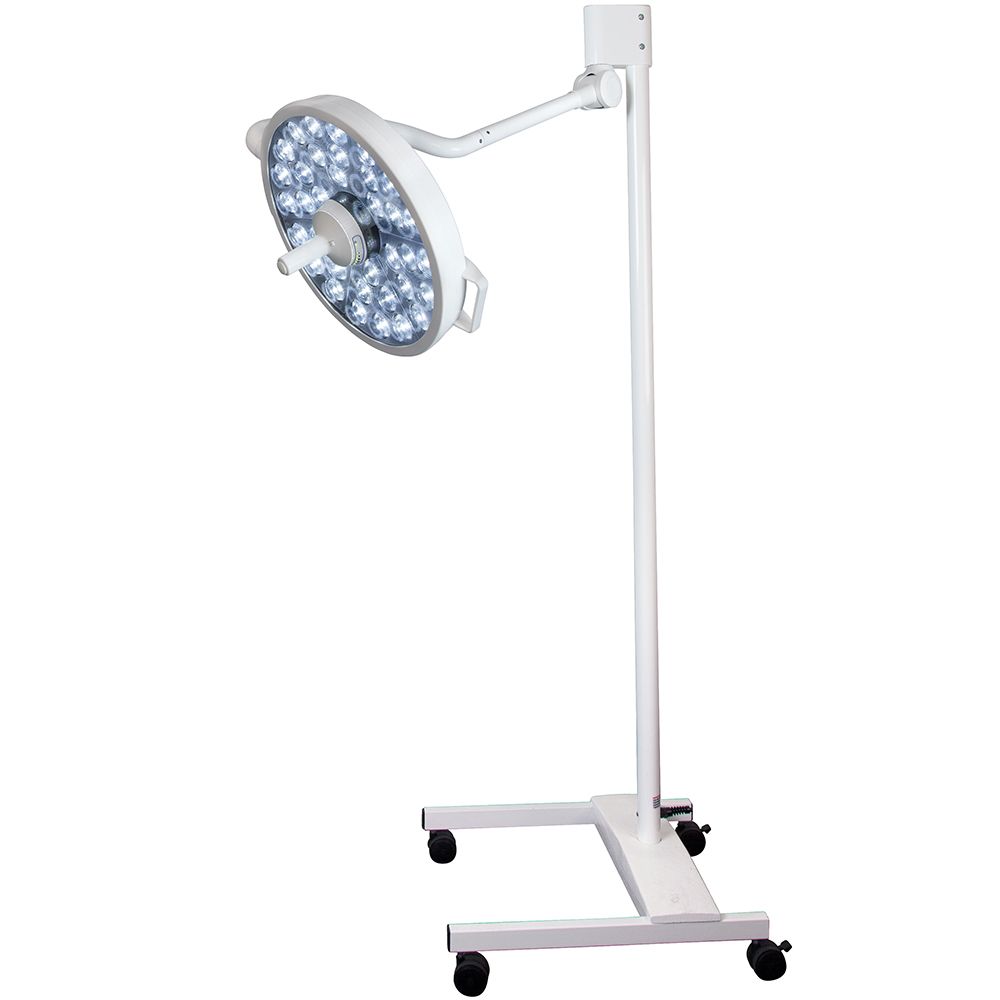

Bovie MI-1000 LED Surgery Light - Portable Floor Model

Bovie MI-1000 LED Surgery Light - Portable Floor Model

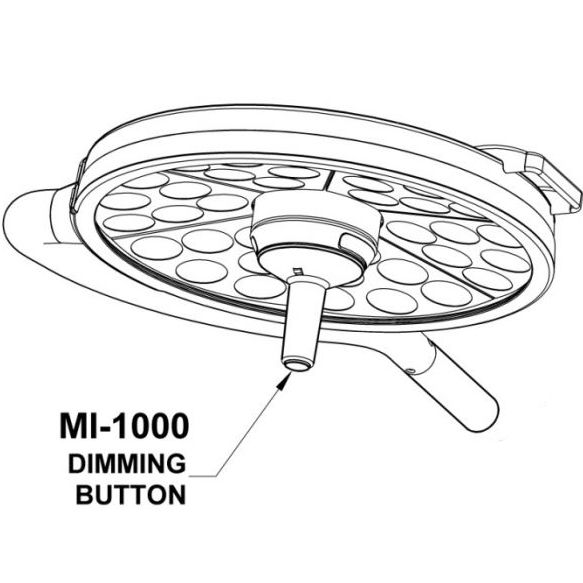

Bovie MI-1000 LED Surgery Light - Dimming Button Diagram

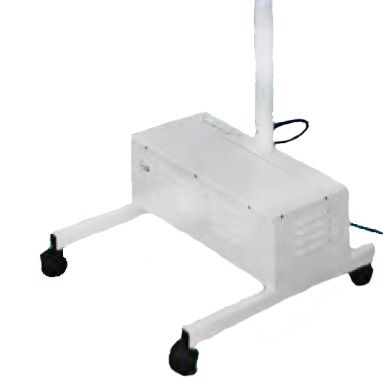

Bovie MI LED Series Surgery Light Battery Pack
Bovie MI-1000 LED Surgery Light - Portable Floor Model
Bovie MI-1000 LED Surgery Light - Dimming Button Diagram
Bovie MI LED Series Surgery Light Battery Pack
Key Features
  • SKU: BOV-XLD-FM
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 3 Years
  • Weight: 41.05 lb
  • Allows for easy transport between workspaces
  • Five brightness settings to suit the needs of any procedure or user, with 100,000 lux at its brightest and 50,000 lux at the lowest level
  • Endo Mode reduces the light automatically to a dim level for endoscopic treatments
  • LED lights provide 50,000 hours of rated life

  • Learn more:

Contact The Manufacturer
  • MFR: Medical Illumination
    Ships from Manufacturer
  • MPN: XLD-FM
  • Phone: (800) 831-1222
$5,117.00 $4,364.78

+Free Shipping*

Select a Configuration
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Bovie MI-1000 LED Surgery Light - Portable Floor Model mounts an energy-efficient, high-intensity lamp onto a portable base for easy transfer between workspaces.

Warranty: 3 Years Limited (Lighting Equipment, excluding normal replacement parts).

The MI-1000 LED offers energy-efficiency that consumes half the energy of traditional halogen units. This light also comes with five brightness settings to suit the needs of any procedure or user, with 100,000 lux at its brightest and 50,000 lux at the lowest level. The brightness is adjusted through the conveniently placed button on the center handle grip, which users can also use to steer and direct the lamp head. This same handle is also removable for sterilization procedures.

The MI-1000 LED is also the only light in the series that is available with an Endo Mode, which reduces the light automatically to a dim level for endoscopic treatments. To enable Endo Mode, simply press and hold the dimming button for three seconds.

Note: Only available for sale in the USA.

Features

Bovie MI-1000 LED Surgery Light - Portable Floor Model Features

  • Floor model allows for easy transport.
  • Equipped with five brightness levels.
  • Ergonomic handle grip contains adjustment button on the tip.
  • Two articulating arms to easily direct the light.
  • Pure white illumination.
  • Superior shadow control.
  • Near-zero radiated heat.

Specifications

Bovie MI-1000 LED Surgery Light - Portable Floor Model Specifications

  • Light Head Weight: 14.8 lb (6.7 kg).
  • Light Head Diameter: 18" (45.7 cm).
  • Floor Stand Height: 74.5" (189 cm).
  • Light Intensity Output: 100,000 lux (9,290 footcandles) at 1 meter.
  • Light Source: Light Emitting Diode (LED) (54 W).
  • Rated LED Lifespan: 50,000 hours.
  • Number of LEDs: 36.
  • Light Color Temperature: 4,300 Kelvin.
  • Color Rendering Index: 97.
  • Light Field Diameter: 8.3" (20.9 cm).
  • Focal Length: 39.4" (1 m).
  • Depth of Illumination: 24" (61 cm).
  • Dimming Levels: 5.
    • Level 5 (100%): 100,000 lux (9,290 footcandles).
    • Level 4 (87%): 87,500 lux (8,129 footcandles).
    • Level 3 (75%): 75,000 lux (6,968 footcandles).
    • Level 2 (62%): 62,500 lux (5,806 footcandles).
    • Level 1 (50%): 50,000 lux (4,645 footcandles).
  • Arm Rotation: 540°.
  • Light Head Rotation: 300°.
  • Power Supply Circuit: 100 to 240 VAC, 50/60 Hz.
  • Power Handling Capacity: 100 W.
  • Shipping Weight (two boxes):
    • 62 lb (28.12 kg).
    • 17 lb (7.7 kg).
  • Shipping Dimensions (two boxes):
    • 36" (L) x 23" (W) x 18" (H) (91.4 cm x 58.4 cm x 46 cm).
    • 77" (L) x 6" (W) x 6" (H) (196 cm x 15.2 cm x 15.2 cm).

Configurations

Bovie MI-1000 LED Surgery Light - Portable Floor Model Configurations

  • #XLD-FM: Standard (061523) (No Battery Pack).
  • #XLD-FMB: With Battery Pack (061523B).

Literature

Frequently asked questions

Is the illumination intensity superior?
<p>Yes, the Bovie MI-1000 provides high-intensity, adjustable illumination, offering superior visual clarity for surgical and examination procedures. It utilizes 36 energy-efficient LEDs, contributing to exceptional performance and longevity.</p>

<p>Key features include:</p>

<ul>
<li><strong>Maximum Output:</strong> Delivers up to <strong>100,000 lux</strong> at 1 meter, adjustable across five distinct dimming levels.</li>
<li><strong>Optical Quality:</strong> Boasts a high <strong>Color Rendering Index (CRI) of 97</strong> and a color temperature of 4,300 Kelvin, ensuring pure white illumination and accurate tissue color representation.</li>
<li><strong>Advanced Controls:</strong> Features a dedicated <strong>Endo Mode</strong> (activated by a long press of the dimming button) that automatically reduces light output for sensitive endoscopic procedures.</li>
<li><strong>Shadow Control:</strong> The design provides superior shadow control with minimal radiated heat.</li>
</ul>
Does this light include a specialized Endo Mode?
<p>Yes, the Bovie MI-1000 LED Surgery Light includes a specialized <strong>Endo Mode</strong>. This feature automatically dims the light to a lower level, providing optimal illumination for endoscopic treatments.</p>
Do the LED lights offer long-lasting performance?
<p>Yes, the Bovie MI-1000 LED Surgery Light offers exceptional longevity with a <strong>rated LED lifespan of 50,000 hours</strong>. This ensures reliable, long-term performance and reduces the need for frequent replacements.</p>
Does the MI-1000 light offer great maneuverability?
<p>Yes, the Bovie MI-1000 LED Surgery Light is engineered as a portable floor model for <strong>superior maneuverability</strong> and precise positioning in clinical environments. Its design emphasizes flexibility and control:</p>

<ul>
<li><strong>High Mobility:</strong> The unit sits on a portable floor stand base equipped with casters, allowing for effortless transport and rapid repositioning between procedural areas.</li>
<li><strong>Extensive Articulation:</strong> Precise placement is enabled by two flexible articulating arms and significant rotation capabilities:
<ul>
<li>Arm Rotation: **540<br>
**</li>
<li>Light Head Rotation: **300<br>
**</li>
</ul>
</li>
<li><strong>Ergonomic Control:</strong> The light is easily directed using the central handle grip, which is conveniently <strong>removable for sterilization</strong>.</li>
</ul>
Does this light have superior shadow control?
<p>The Bovie MI-1000 LED Surgery Light offers <strong>superior shadow control</strong> for a clear view during procedures. Additionally, it produces <strong>near-zero radiated heat</strong>, ensuring comfort for both patients and medical staff.</p>
What are the Bovie MI-1000's power requirements?
<p>The Bovie MI-1000 LED Surgery Light operates with a power supply circuit of <strong>100 to 240 VAC, 50/60 Hz</strong>. It has a power handling capacity of <strong>100 W</strong>.</p>
What is the color temperature and high CRI of the light?
<p>The Bovie MI-1000 is engineered to deliver high-quality, pure white illumination essential for precise visualization and accurate color assessment during surgical procedures. It also offers superior shadow control.</p>

<p>Key specifications for the optical quality are:</p>

<ul>
<li><strong>Light Color Temperature:</strong> <strong>4,300 Kelvin</strong> (provides a neutral, bright white light).</li>
<li><strong>Color Rendering Index (CRI):</strong> <strong>97</strong>.</li>
</ul>

<p>This exceptionally high <strong>CRI of 97</strong> guarantees highly accurate tissue color rendition and differentiation, which is crucial for maximizing clinical accuracy.</p>
Is a battery backup option available?
<p>Yes, the Bovie MI-1000 LED Surgery Light is offered in two configurations to suit various clinical needs:</p>

<ul>
<li><strong>Standard Configuration (No Battery):</strong> This model operates exclusively on external AC power.</li>
<li><strong>With Battery Pack:</strong> This option includes an integrated battery backup system, offering crucial benefits for high-mobility environments or emergency use. It ensures <strong>uninterrupted, reliable illumination</strong> even if the unit is temporarily disconnected from the primary power source.</li>
</ul>
