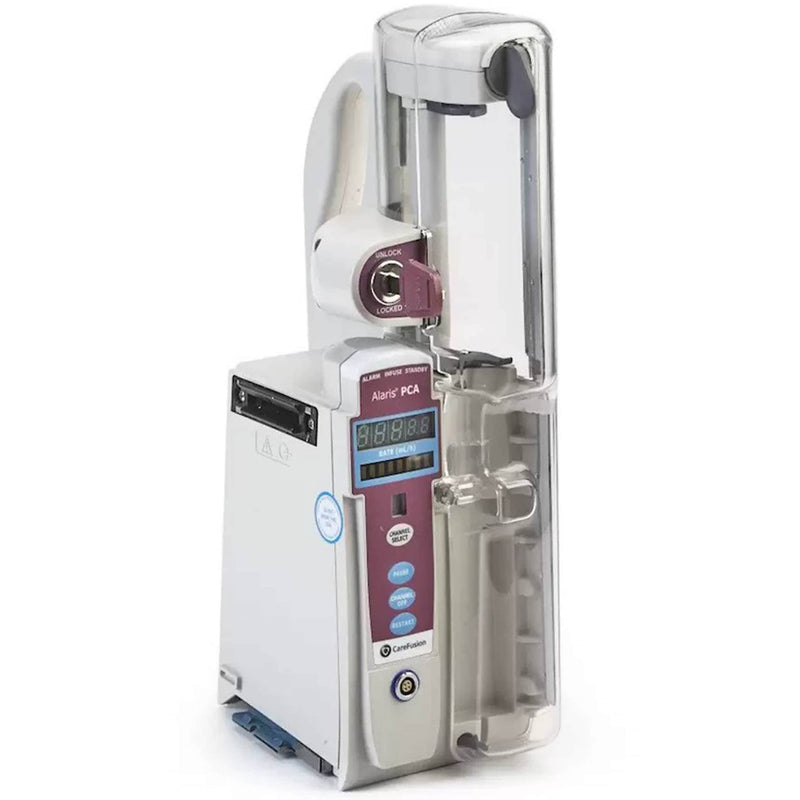

BD Alaris PCA 8120 Syringe-Based Analgesia Module

Key Features

SKU: MFI-BDX-8120
Condition: Certified Refurbished
Warranty: 6 Months
Weight: 7.1 lb
Used to deliver primary continuous infusions, PCA dose-only infusions, primary continuous + PCA dose infusions, loading doses, or bolus doses
An easy to use interface provides quick access to total dose history and monitors trending data giving medical professionals the tools they need to analyze and address a patient's response to pain therapy
Dose request cord allows the patient to request PCA doses as needed, and provides clinicians with the ability to set a lockout interval during which no dose will be delivered
Tamper evident enclosure to secure the syringe
Learn more:

Contact The Manufacturer

MFR: BD Ships from MFI Medical
MPN: 8120
Phone: (877) 232-8995

$682.16

Only 1 In Stock

Est. Delivery:

Quantity

Shop with Confidence

+

Description

The BD Alaris PCA 8120 Syringe-Based Analgesia Module is a PCA infusion device. Utilizing a controlled analgesia module, the PCA 8120 features an easy to use interface that provides quick access to total dose history and monitors trending data giving medical professionals the tools they need to analyze and address a patient's response to pain therapy.

Warranty: 6 Months - Parts and Labor.

The PCA Module is used to deliver primary continuous infusions, PCA dose-only infusions, primary continuous + PCA dose infusions, loading doses, or bolus doses.

Note: The following error codes are used to indicate a problem.

Plunger force fail.
Barrel clamp fail.
Plunger position.
Calibration fail.

Features

BD Alaris PCA 8120 Syringe-Based Analgesia Module Features

Two IUI Connectors (left and right).
Three status indicators - alarm (red), infusing (green), standby (yellow).
Message display, rate display, and channel (module) identification make for added convenience.
Barrel flange gripper.
Syringe barrel sensor.
Syringe barrel clamp/sizer.
Dose request cord attachment.
Dose request cord allows the patient to request PCA doses as needed, and provides clinicians with the ability to set a lockout interval during which no dose will be delivered.
Simply press the module release latch to remove the module.
Tamper evident enclosure to secure the syringe.

Specifications

BD Alaris PCA 8120 Syringe-Based Analgesia Module Specifications

Bolus Dose Range: Configured according to hospital best-practice guidelines.
Critical Volume: Maximum over-infusion which can occur in the event of a single-fault condition will not exceed 2% of nominal syringe fill volume during loading and 1% of maximum syringe travel after syringe loading.
Delivery Units: mcg, mcg/h, mg, mg/h, mL, mL/h.
Dimensions: 4.5" (W) x 15" (H) x 7.5" (D) (exclusive of security door).
Equipment Orientation: To ensure proper operation, Alaris System must remain in an upright position.
Flow Rate Programming: Flow rate range is from 0.1 to 999 mL/h.
Fluid Ingress Protection: IPX1, Drip Proof.
Loading Dose Range: Configured according to hospital best-practice guidelines.
Maximum Dose Range: Configured according to hospital best-practice guidelines.
Occlusion Alarm Thresholds: Three settings - low, medium, and high.
Operating Principle: Positive displacement.
PCA Dose Range: Configured according to hospital best-practice guidelines.
Rate Accuracy: ± 2% of full scale plunger travel (not including syringe variation).
Shock Protection: Type CF, Defibrillator Proof patient applied part. (PCA module). Type BF, Defibrillator Proof patient applied part. (Dose Request Cord).
Standard Operating Conditions:
- Atmospheric Pressure: 645 to 795 mmHg.
- Disposable Type: #30883.
- Humidity: 20 to 90%.
- Rate: 5 mL/h.
- Syringe Type: BD 50/60 mL.
- Temperature: 68 ± 4 °F.
- Volume Collection Time: Approximately 2 minutes.
Weight: 5.5 lb.

Literature

BD Alaris PCA 8120 Syringe-Based Analgesia Module Literature

BD Alaris System with Guardrails Suite MX User Manual

Frequently asked questions

What types of infusions can the BD Alaris PCA 8120 module deliver?

The BD Alaris PCA 8120 module offers several infusion options:

Primary continuous infusions
PCA dose-only infusions
Primary continuous + PCA dose infusions
Loading doses
Bolus doses

What status indicators are on the BD Alaris PCA 8120?

The BD Alaris PCA 8120 features three clear status indicators for convenient monitoring:

Alarm
Infusing
Standby

Does the BD Alaris PCA 8120 allow for monitoring of patient response to pain therapy?

Yes, the BD Alaris PCA 8120 features an easy-to-use interface that provides quick access to total dose history and monitors trending data, allowing medical professionals to analyze a patient’s response to pain therapy.

What are the dimensions of the PCA 8120 module?

The dimensions of the BD Alaris PCA 8120 module (exclusive of the security door) are:

Width (W): 4.5 inches
Height (H): 15 inches
Depth (D): 7.5 inches

Additionally, the module weighs 5.5 lb.

What is the weight of the Alaris PCA 8120 module?

This certified refurbished BD Alaris PCA 8120 module weighs 7.1 pounds.

What is the warranty and condition of this BD Alaris PCA 8120 module?

The BD Alaris PCA 8120 is a certified refurbished unit and comes with a 6-month warranty covering parts and labor.

What is the flow rate range for the BD Alaris PCA 8120?

The flow rate programming range for the BD Alaris PCA 8120 is 0.1 to 999 mL/h.

What is the rate accuracy of the BD Alaris PCA 8120?

The rate accuracy is ± 2% of full-scale plunger travel, not including syringe variation.

Does the BD Alaris PCA 8120 have adjustable occlusion alarm settings?

The BD Alaris PCA 8120 has three occlusion alarm thresholds: low, medium, and high.

How many IUI connectors does the PCA 8120 have?

The BD Alaris PCA 8120 is equipped with two IUI connectors (Interface Unit Interface), located on the left and right sides of the module. These connectors facilitate integration with the broader BD Alaris infusion system.
