B. Braun Contiplex Echo Tray with Ultra 360 Needle (10/Case)

The Contiplex Ultra 360 procedural needle is designed with two key features to maximize visibility and precision during ultrasound guidance:<ul><li>An innovative X-pattern design.</li><li>A specialized clear coating.</ul>These enhancements work together to improve ultrasound needle visualization and ensure accurate tip identification during placement.

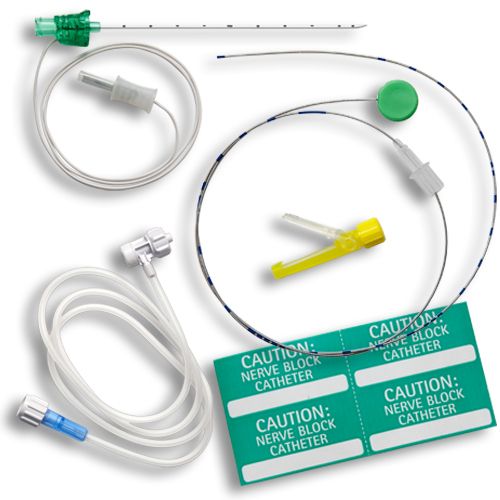

The B. Braun Contiplex Echo Tray is a comprehensive, sterile procedural kit designed for peripheral nerve blocks, featuring advanced components for enhanced ultrasound guidance.

Key specialized components included are:

• Contiplex Ultra 360 Procedural Needle: An 18 Gauge x 4” (100 mm) needle that features an innovative X-pattern and clear coating to ensure enhanced 360
  ° ultrasound visualization and accurate tip identification.
• Peripheral Nerve Block Catheter: A 55 cm catheter with a styleted design for easier control and threading. It is constructed entirely with flat metal coils to maximize its echogenicity (visibility) under ultrasound guidance, while the shorter length minimizes slack.
• Hypodermic Needles: Includes one 25 Gauge x 1.5” needle and one 18 Gauge x 1.5” needle.
• Syringes: Plastic luer lock and luer slip syringes of various volumes.
• Ancillary Supplies: Lidocaine, a clear drape with rectangular fenestration, and other necessary accessories.

All components are sterile and manufactured without natural rubber (latex-free).

The peripheral nerve block catheter is designed with an optimal 55 cm length. This specific measurement minimizes excess slack, reducing the amount that needs to be secured during the procedure.

For enhanced visibility and control, the catheter’s construction includes:

• Enhanced Echogenicity: It is constructed entirely with flat metal coils throughout its length to maximize its visibility under ultrasound guidance.
• Improved Control: A styleted design is incorporated to facilitate easier control and precise threading during placement.

Yes, the B. Braun Contiplex Echo Tray is supplied sterile for procedural use. All components are also certified latex-free (meaning they do not contain natural rubber) to minimize the risk of sensitivities.

The shelf life of the B. Braun Contiplex Echo Tray with Ultra 360 Needle is 24 months.

The styleted catheter allows for easier and more precise threading during procedures, enhancing control during peripheral nerve blocks.

The Ultra 360 needle included in this tray is 18 Gauge with a length of 4 inches (100 mm).

The 55 cm length of the peripheral nerve block catheter is specifically optimized to minimize slack during placement. This design reduces the amount of excess material that needs to be secured after the procedure, thereby enhancing control and overall security.

The B. Braun Contiplex Echo Tray with Ultra 360 Needle is designed for performing peripheral nerve blocks.

Yes, the Ultra 360 needle is designed with 360° markings that allow for ultrasound visibility of the needle from all sides, providing comprehensive guidance during procedures.
