Description

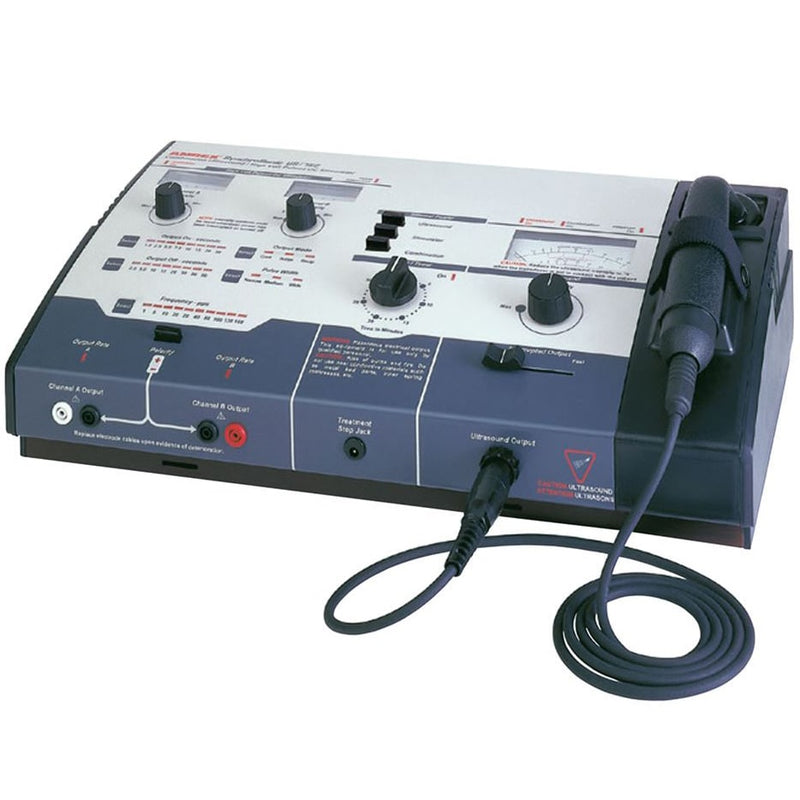

The Amrex SynchroSonic US/752 Combination Ultrasound + High Volt Muscle Stimulator includes:

  • (1) Bottle of Conductance and Coupling Gel (#02-OCG-01).
  • (1) 3.5" x 7" Sponge Pad Electrode (#02-A105).
  • (1) Patient Treatment Stop Switch (#23-PIS).
  • (2) Patient Lead - Black (#27-112-B).
  • (1) Patient Lead - Red (#27-112-R).
  • (1) Patient Lead - White (#27-112-W).
  • (1) AC Power Cord - 16 AWG (#27-5731-G).
  • (1) Bottle of Flextrode Conductive Spray (#02-OCS-01).
  • (4) 4" Flextrode Pads (#02-F104).
  • (20) 4" Flextrode Covers (#02-FC104).
  • (2) 22" Retention Strap (#02-120V).
  • (2) 42" Retention Strap (#02-142V).

Note: This unit is for professional use only, and is for sale by or on the order of a practitioner only. Prescription required for patients.

Warranty: 2 Years - Generator / 1 Year - Transducer.

The US/752 offers the benefits of therapeutic ultrasound and high voltage muscle stimulation for muscle rehabilitation, prevention of muscle atrophy, pain management, and edema reduction.

The panel design provides simple operation of ultrasound and high voltage muscle stimulation separately or in combination through the ultrasound transducer. The practitioner can precisely manage treatment with a selectable frequency range, independent on/off surge duration, and pulse width. The US/752 produces pulsation, tetanize, surge, and reciprocal output. The additional benefit of bipolar application eliminates the need for a single large dispersive electrode. Designed to promote patient assurance, the treatment stop switch allows the patient to discontinue stimulator output at the press of a button.

The Universal Wall Mount Bracket (#09-WB) is compatible and commonly purchased with the SynchroSonic US/752.

Features

Amrex SynchroSonic US/752 Combination Ultrasound + High Volt Muscle Stimulator Features

  • Ultrasound:
    • Lightweight ergonomically designed transducer.
    • Transducer protection switch.
    • 0 to 20 watt output.
    • Variable interrupt output mode.
    • Cable Fault Alarm System: Detects improper transducer connection and/or cable damage providing a safety shutdown.
  • Stimulator:
    • Dual channel output.
    • Four-pad capability.
    • Bi-polar application (no dispersive pad).
    • Adjustable frequency range and pulse width.
    • Reciprocal and ramped surge mode.
    • Patient interrupt switch.
    • Adjustable on and off surge duration.
    • Intensity reset circuit.
    • 0 to 30 minute timer.

Soundhead Features and Options: All Amrex ultrasound transducers are lightweight, ergonomically designed, and sealed for underwater therapy.

Amrex offers two soundhead faceplate sizes: the standard 2.25" diameter faceplate or the optional, small 1.5" diameter faceplate. The QuickConnect transducer cable system is optional with the standard soundhead. It is provided with the small soundhead on all Amrex ultrasound equipment.

Specifications

Amrex SynchroSonic US/752 Combination Ultrasound + High Volt Muscle Stimulator Specifications

  • Weight: 20 lb (including transducer).
  • Dimensions: 11" (D) x 19.5" (W) x 7" (H).
  • Input Power Requirements:
    • Line Voltage: 120 VAC, 60 Hz (special voltage available on request).
    • Current: 1.0 A.
    • Line Leakage: < 50 µA.
  • Ultrasonic Generator (Complies with FDA Regulation 21 CFR 1050.10 and FCC regulations):
    • Frequency: 1.0 MHz ± 5%.
    • Waveform: Amplitude modulated at 120 Hz ± 1%.
    • Pulse Duration: 8 ms ± 1%.
    • Output Mode: Adjustable interrupted and non-interrupted.
    • Output Power: 0 to 20 W total ± 20% / 0 to 5 W/cm2 ± 20%.
    • Temporal Peak/Temporal Average Intensity: 2.8:1 ± 20%.
    • Treatment Timer: Adjustable 0 to 30 minutes.
  • Applicator (Transducer):
    • Crystal Material: Barium-titanate.
    • Applicator Beam Type: Collimating.
    • Frequency: 1.0 MHz ± 5%.
    • ERA (Effective Radiating Area): 4 cm2 ± 20%.
    • BNR (Beam Nonuniformity Ratio): 5.5:1 maximum.
  • Electrical Stimulator:
    • Waveform: DC "needle" pulses with no parasitic spike.
    • Output Voltage: 0 to 500 peak V.
    • Output Intensity: 20 µC maximum charge per pulse into 100 Ω load.
    • Pulse Width: Narow 10 µs, medium 20 µs, wide 30 µs.
    • Frequency Range: 1 to 160 pulses per second.
    • Surge On Duration, Reciprocal On/Off Duration: 1, 2.5, 5, 7.5, 10, 15, 20, 30 s.
    • Surge Off Duration: 2.5, 5, 10, 15, 20, 30, 50, 90 s.
  • Shipping Weight: 27 lb.

Configurations

Amrex SynchroSonic US/752 Combination Ultrasound + High Volt Muscle Stimulator Configurations

  • #01-US752-ST: With Standard Transducer.
  • #01-US752-STQC: With Standard QuickConnect Transducer.
  • #01-US752-SMT: With Small QuickConnect Transducer.
  • #01-US752-BQCT: With Standard and Small QuickConnect Transducers.
  • #01-US752-133-ST: 1 and 3.3 MHz Unit - With Standard Transducer.
  • #01-US752-133-STQC: 1 and 3.3 MHz Unit - With Standard QuickConnect Transducer.
  • #01-US752-133-SMT: 1 and 3.3 MHz Unit - With Small QuickConnect Transducer.

Literature

Amrex SynchroSonic US/752 Combination Ultrasound + High Volt Muscle Stimulator Literature

Amrex SynchroSonic US/752 Combination Ultrasound/High Volt Galvanic/High Volt Stimulator Brochure
