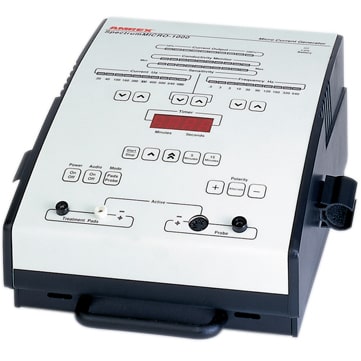

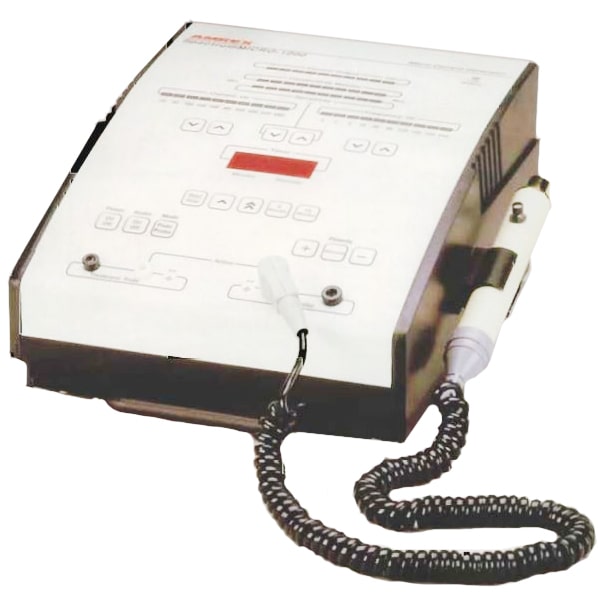

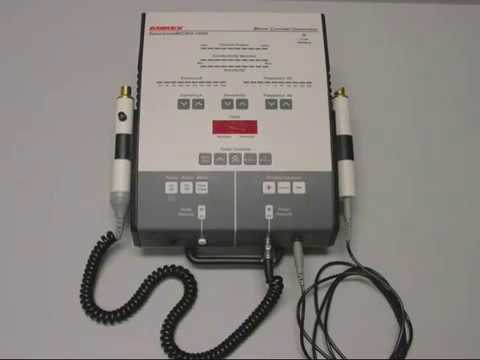

Amrex SpectrumMICRO-1000 Microcurrent Generator

The Amrex SpectrumMICRO-1000 Microcurrent Generator (#01-MC1000) includes the following accessories:

• SpectrumMicro Probe with Switch (#2-SPM-PH).
• Treatment Handle - 45° Angle Tip (#02-118-F).
• Battery Charger (#26-ABC).
• Dual Patient Lead - Black (Pin to Pin) (#27-PP-DPC).
• Single Patient Lead - Black (#27-112-B).
• Point Electrode - Gold Plated Brass (#02-AE7).
• 0.5" Spot Electrode - Gold Plated Brass (#02-DE05B).
• (2) Holders for Q-Tip Electrode - 1.5" (#02-AEFT).
• Auricular Electrode (#02-AEP).
• Bar Electrode - 5" Length (#02-AE10).
• (8) 2" x 2" Reusable Electrodes (#02-RE-22).

Note: This unit is for professional use only, and is for sale by or on the order of a practitioner only. Prescription required for patients.

Warranty: 2 Years - Parts and Labor (Batteries excluded).

The SpectrumMICRO-1000 is intended to manage chronic and acute pain, allowing users and patients to work together to control pain levels in the patient.

While this device can often be confused for a TENS device, they are not the same. The Spectrum MICRO-1000 utilizes a separate electrical output and functions differently from TENS. It offers a selectable current range between 20 - 1000 µA, and a frequency range between 0.5 - 640 Hz. The generator supports 24 Karat gold plated electrodes, for either pad or probe treatments. Users can enjoy the portability of this device, as it weighs only 8 lb and includes a rechargeable battery pack when plug-in power is unavailable.

Amrex SpectrumMICRO-1000 Microcurrent Generator Features

• Touch controls and an illuminated display.
• Selectable ranges for both current and frequency range.
• Selectable audio, conductivity, and current output.
• Variable polarity.

Amrex SpectrumMICRO-1000 Microcurrent Generator Specifications

• Weight: 8.25 lb (3.7 kg).
• Dimensions: 11" (L) x 8.5" (W) x 5" (H) (28 cm x 21.6 cm x 12.7 cm).
• Shipping Weight: 16 lb (7.26 kg).
• Shipping Dimensions: 18.125" (L) x 14.125" (W) x 10" (H) (46 cm x 36 cm x 25.4 cm).
• Rechargeable Battery System:
• Power Source: Four 12-V rechargeable gel cells.
• Charger Type: External wall transformer.
• Charger Input: 110 / 120 Vac, 50 - 60 Hz.
• Output:
• Output Voltage: 45 V peak.
• Output Waveform: Modified square DC bi-phasic pulses.
• Output Current Range: Selectable 20 to 1,000 µA.
• Frequency Range: Selectable 0.5 to 640 Hz.
• Meter Type: Relative conductance.
• Polarity: Alternating, positive, negative.
• Treatment Timer: Variable, 0 - 99 min. 59 sec.

Amrex SpectrumMICRO-1000 Microcurrent Generator Accessories

The Amrex SpectrumMICRO-1000 Microcurrent Generator can be purchased with:

• Soft Carrying Case (#04-SCC).
• Universal Wall Bracket (#09-WB-1).

Amrex SpectrumMICRO-1000 Microcurrent Generator Media and Literature

Amrex SpectrumMicro-1000 Literature Sheet
