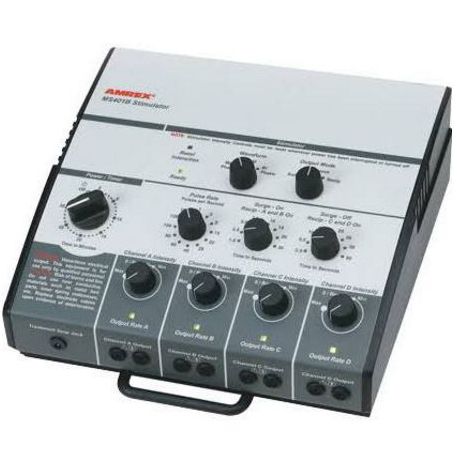

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator
Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator

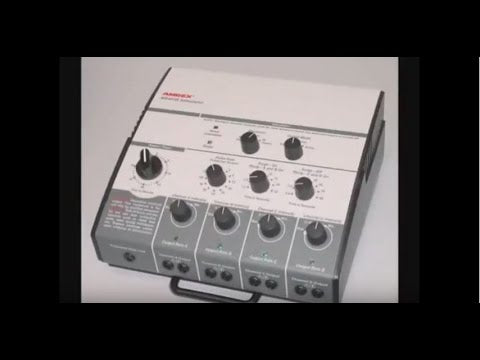

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator General Operation
Key Features
  • SKU: AMX-01-MS401B
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 6.8 lb
  • Quad-channel, eight-pad treatment capability
  • Bi Phasic / Mono Phasic output
  • Three output modes: continuous, surge, or reciprocal
  • Intensity reset to prevent treatment overlap

  • Learn more:

Contact The Manufacturer
  • MFR: Amrex Ships from Manufacturer
  • MPN: 01-MS401B
  • Phone: (800) 221-9069
$2,736.38 $1,677.93

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator (#01-MS401B) includes:

  • (1) Patient Treatment Stop Switch (#23-PIS).
  • (4) Dual Retractable Patient Lead (#27-212-02).
  • (1) Hospital Grade Power Cord (#27-PCH).
  • (1) Bottle of Flextrode Conductive Spray (#02-OCS-01).
  • (8) 4" Flextrode Pads (#02-F104).
  • (40) 4" Flextrode Covers (#02-FC104).
  • (6) 22" Retention Straps (#02-120V).
  • (2) 42" Retention Strap (#02-142V).

Note: This unit is for professional use only, and is for sale by or on the order of a practitioner only. Prescription required for patients.

Warranty: 2 Years - Parts and Labor.

The MS401B is a quad-channel muscle stimulator, and can support up to eight electrode pads. It provides both Bi Phasic and Mono Phasic stimulation, and contains three output modes: continuous, surge, or reciprocal.

To ensure each patient's comfort and safety, the MS401B stimulator has a safety reset function as part of the intensity controls. This resets the intensity settings to default between appointments, so that there is no overlap between different patients. The electrical stimulator also has a patient treatment stop switch, giving patients the power to stop the stimulation if they feel uncomfortable. Other features include a default 30-minute timer and a detachable power cord. The box is also equipped with a convenient handle for portability.

Features

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator Features

  • Quad-channel, eight-pad treatment capability.
  • Bi Phasic / Mono Phasic output.
  • Surge and reciprocal output modes.
  • Selectable pulse rate and surge on/off duration.
  • Patient-controlled stop switch.
  • Intensity reset to prevent treatment overlap.
  • Flextrode pads and disposable cloth covers.
  • 30 minute timer.

Specifications

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator Specifications

  • Dimensions: 11" (L) x 11.5" (D) x 5.75" (H) (28 cm x 29.2 cm x 14.6 cm).
  • Weight: 6.8 lb (3.08 kg).
  • Input Power Requirements:
    • Line Voltage: 120 Vac, 60 Hz.
    • Current: 0.25 A.
    • Line Leakage: 50 µA.
    • Pulse Width: 200 µs at 50% V maximum.
  • Output Voltage: 85 V peak into 1K ohm load, 15 V peak into 100 ohm load.
  • Output Intensity: 30 µC maximum charge per pulse in 100 ohm load.
  • Frequency: 1, 3, 5, 10, 20, 28, 40, 60, 80, 100, 120, 160 pps.
  • Surge - On Duration: 1.0, 2.5, 5.0, 7.5, 10, 15, 20, 30 seconds.
  • Surge - Off Duration: 2.5, 5.0, 10, 15, 20, 30, 50, 90 seconds.
  • Reciprocal - A and B On Duration: 1.0, 2.5, 5.0, 7.5, 10, 15, 20, 30 seconds.
  • Reciprocal - C and D on Duration: 2.5, 5.0, 10, 15, 20, 30, 50, 90 seconds.
  • Shipping Weight: 15 lb (6.8 kg).
  • Shipping Dimensions: 18.125" (W) x 14.125" (D) x 10" (H) (46 cm x 35.8 cm x 25.4 cm).

Accessories

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator Accessories

The following accessories are compatible and commonly purchased with the MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator:

  • #04-APS-2008: Plastic Utility Cart.
  • #04-SCC: Soft Carrying Case.
  • #09-WB: Wall Mount Bracket.

Literature

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator Literature

Amrex MS401B Low Volt Bi Phasic / Mono Phasic AC Muscle Stimulator Brochure

Frequently asked questions

What types of stimulation does the Amrex MS401B provide?

The Amrex MS401B offers both Bi Phasic and Mono Phasic stimulation, providing versatile treatment options for various muscle stimulation needs.

Does the Amrex MS401B have a patient stop switch for safety?

Yes, the Amrex MS401B includes a patient-controlled stop switch to enhance patient safety during treatments.

What output modes does the Amrex MS401B muscle stimulator offer?

The device has three output modes:

  • Continuous
  • Surge
  • Reciprocal
What comprehensive accessories are included?

The Amrex MS401B ships as a complete system, ensuring you have all the necessary components for immediate quad-channel treatment, including patient safety controls and consumables. The comprehensive accessory kit includes:

  • Leads and Electrodes: Four (4) Dual Retractable Patient Leads, eight (8) 4” Flextrode Pads, forty (40) 4” Flextrode Covers, and one (1) bottle of Flextrode Conductive Spray.
  • Retention: Six (6) 22” Retention Straps and two (2) 42” Retention Straps for secure electrode placement.
  • Safety and Power: A Patient Treatment Stop Switch for immediate patient control, and a Hospital Grade Power Cord.
Does the Amrex MS401B have a timer function?

The Amrex MS401B has a 30-minute timer.

What are the dimensions of the Amrex MS401B?

The dimensions of the Amrex MS401B are 11” (L) x 11.5” (D) x 5.75” (H).

How much does the Amrex MS401B weigh?

The Amrex MS401B weighs 6.8 lb (3.08 kg).

What is the output voltage of the Amrex MS401B?

The Amrex MS401B has an output voltage of 85 V peak into 1K ohm load, 15 V peak into 100 ohm load.

Does the Amrex MS401B have an intensity reset function?

The Amrex MS401B features an intensity reset function that resets the intensity settings to default between appointments.

Does this stimulator support multiple electrode pads?

Yes, the Amrex MS401B is a quad-channel muscle stimulator. This design supports up to eight electrode pads simultaneously, enabling comprehensive treatment across multiple muscle groups or larger areas.
