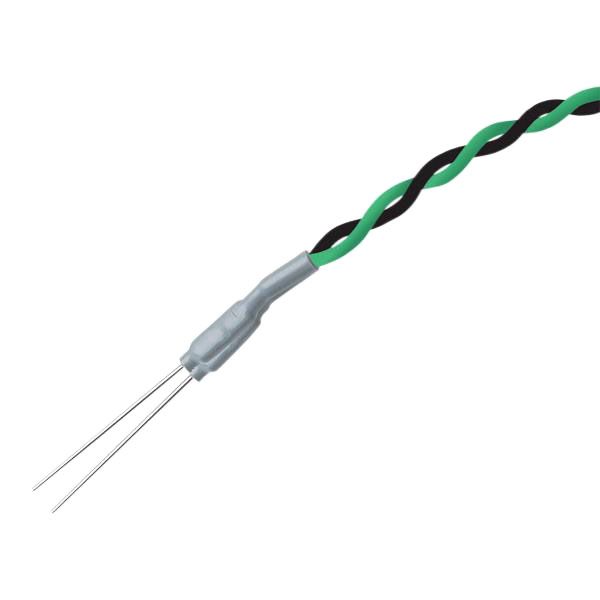

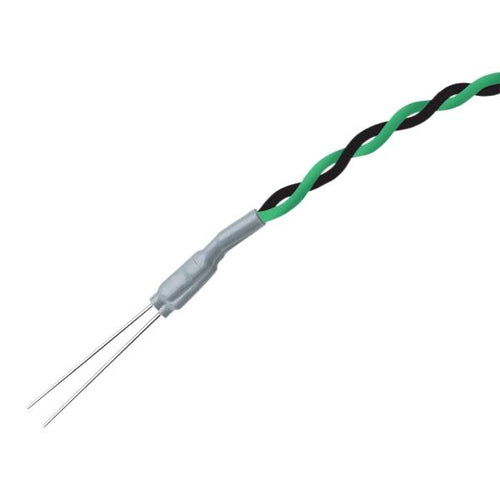

Ambu Neuroline Twisted Pair Subdermal Needle Electrode - Set 1 (20/Box)

Yes, the Ambu Neuroline Twisted Pair Subdermal Needle Electrodes are specifically recommended and engineered for high-performance Intra-Operative Monitoring (IOM) recordings in surgical settings.

They provide reliable signal acquisition due to several key features:

• Optimized Signal Reliability: Engineered with low noise and impedance to ensure clear, reliable physiological signals, which is critical in the operating room.
• Precision Needle: Features an ultra-sharp lancet cut tip on a flexible stainless steel needle for easy, secure skin penetration and placement (e.g., in the scalp).
• Secure Connection: Uses a standard 1.5 mm touch-proof safety connector (DIN 42 802) for secure attachment.
• Easy Identification: Includes color-coded lead wires (twisted pairs) for straightforward identification during complex procedures.
• Safety and Integrity: These electrodes are latex-free and supplied EO-sterilized, guaranteeing product integrity and minimizing the risk of cross-contamination. They also offer a 5-year shelf life.

The Ambu Neuroline Subdermal Needle Electrodes are reliably sterilized using Ethylene Oxide (EO-sterilization). This method ensures high safety standards and guarantees no risk of cross-contamination, which is crucial for sensitive procedures like Intra-Operative Monitoring (IOM).

Additional safety and integrity features include:

• Shelf Life: The electrodes have a guaranteed 5-year shelf life (valid until the date of use or expiration).
• Allergen-Free: Both the electrode and the lead wire are confirmed to be completely latex-free.
• Packaging: The product is supplied with PVC-free packaging.

Yes, the electrode needle is constructed from stainless steel, providing an optimized balance of strength and flexibility.

Key features of the needle design include:

• Material Quality: Stainless steel ensures reliable mechanical integrity for secure placement.
• Ultra-Sharp Tip: The needle features an ultra-sharp lancet cut tip designed specifically for easy and smooth skin penetration, minimizing trauma during insertion.

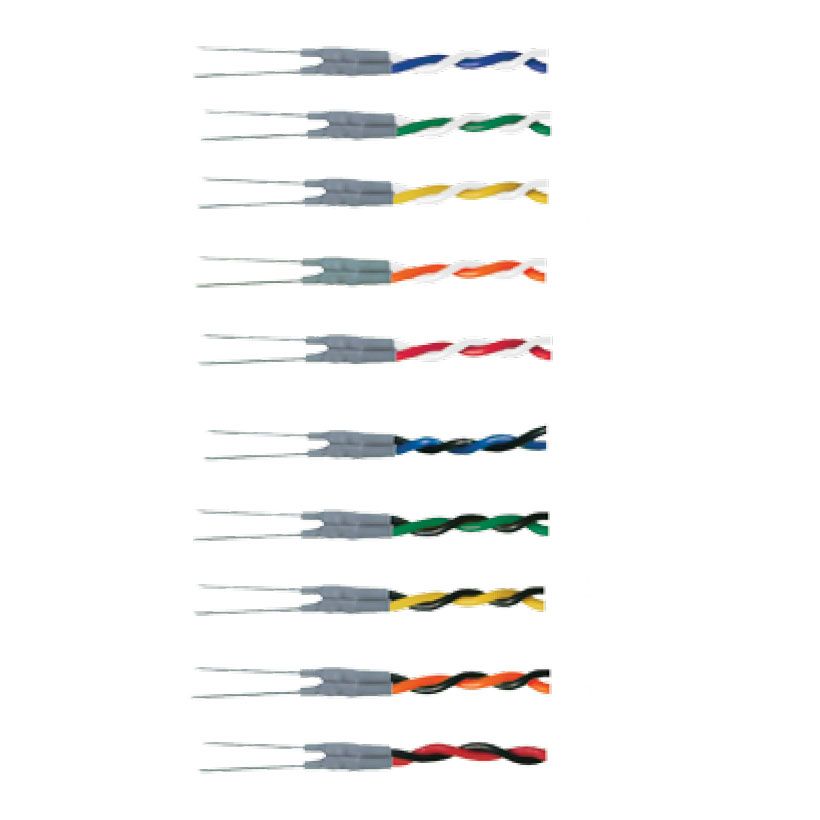

Yes, the Ambu Neuroline electrodes utilize a comprehensive color-coding system to simplify setup and identification, which is essential for complex Intra-Operative Monitoring (IOM) procedures. This feature ensures rapid, accurate deployment during recording.

Key details of the color-coding system include:

• Twisted Pair Configuration: Each lead is a twisted pair, consisting of a primary color (Red, Green, Blue, Yellow, or Orange) twisted with a contrasting Black or White wire.
• Enhanced Reliability: The twisted pair design is critical for delivering low noise and impedance levels, ensuring a clear and reliable signal.
• Safety Connector: All leads terminate in a standard 1.5 mm touch-proof safety connector (DIN 42 802), compatible with standard electrodiagnostic equipment.

Yes, the Ambu Neuroline electrode utilizes a highly reliable and secure 1.5 mm touch-proof safety connector.

This connector adheres to the DIN 42 802 standard, prioritizing safety and ensuring stable signal transmission during critical procedures, such as Intra-Operative Monitoring (IOM).

Key specifications include:

• Connector Type: 1.5 mm touch-proof (DIN 42 802)
• Connection Material: Durable Copper Alloy for optimal conductivity.

Yes, the Ambu Neuroline Twisted Pair Subdermal Needle Electrodes are completely latex-free, ensuring increased patient safety during procedures like Intra-Operative Monitoring (IOM).

This applies to both the electrode component and the attached lead wires.

For guaranteed product integrity and safety, these electrodes are also supplied EO-sterilized.

Material Notes

While the electrodes and lead wires are latex-free, please note the following material specifications:

• Lead Wire Insulation: Made of Polyvinyl chloride (PVC).
• Packaging: Supplied in PVC-free packaging.

The Ambu Neuroline electrode uses a stainless steel needle specifically engineered for secure and reliable physiological signal acquisition, especially for Intra-Operative Monitoring (IOM).

The precise dimensions of the needle are:

• Gauge Number: 27G
• Caliber (Diameter): 0.40 mm

This needle features an ultra-sharp lancet cut tip designed for easy skin penetration, providing an excellent balance of strength and flexibility necessary for maintaining low noise and impedance during signal recording.

Yes, these electrodes are specifically engineered for optimal ease of use and reliable placement, which is crucial for demanding Intra-Operative Monitoring (IOM) environments.

Key design elements include:

• Ultra-Sharp Lancet Cut Tip: This precision design ensures easy and minimally invasive skin penetration.
• Optimized Stainless Steel: The needle material provides an excellent balance of strength and flexibility, which is essential for secure placement.
• Reliable Signal Quality: The secure, high-performance design contributes to the electrode’s low noise and impedance levels, ensuring clear and trustworthy physiological signals throughout the procedure.

Yes, these Ambu Neuroline Subdermal Needle Electrodes are available in four different lead wire lengths. This variety ensures you can select the optimal reach and flexibility needed for reliable signal acquisition during complex Intra-Operative Monitoring (IOM) procedures.The available lead wire configurations are:

• 40 inches (100 cm)
• 60 inches (150 cm)
• 80 inches (200 cm)
• 100 inches (250 cm)

Yes, the Ambu Neuroline Twisted Pair Subdermal Needle Electrodes are designed for reliable, long-term storage, which is crucial for critical surgical environments.They feature a substantial 5-year shelf life from the date of manufacture.These electrodes are supplied Factory New and are EO-sterilized (Ethylene Oxide), ensuring product integrity and complete sterility until the time of use or expiration.
