Ambu Neuroline Inoject EMG Needle Electrode (10/Box)

Yes, the Ambu Neuroline Inoject EMG Needle Electrode is engineered for highly secure and stable injection procedures.

It features a robust luer-lock fitting to ensure a firm, reliable connection to the injection syringe. This design minimizes the risk of accidental disconnection or leakage during critical procedures, such as nerve blocks or Botulinum Toxin injections.

Key benefits of this secure interface include:

• Stability: Ensures consistent and reliable attachment for accurate drug delivery.
• Unobstructed Use: The pre-attached lead wire is strategically off-set to prevent interference with the syringe mechanism during the injection process.

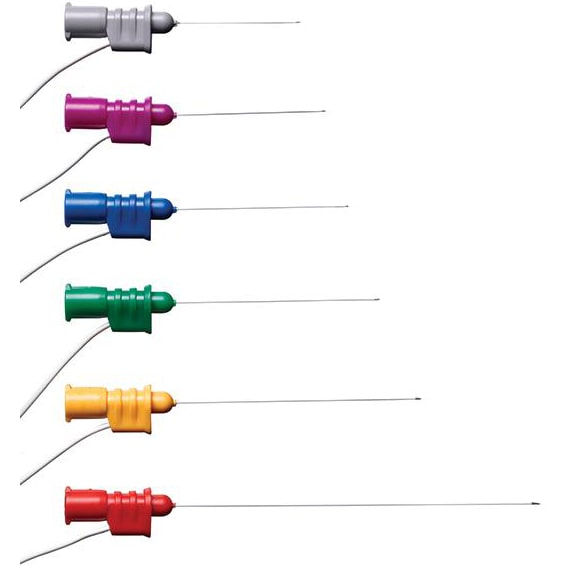

The Ambu Neuroline Inoject EMG Needle Electrode is offered in six distinct, color-coded configurations to ensure easy identification and suitability for various procedures. The color-coded hubs allow for rapid differentiation based on the needle length and gauge.

These configurations are:

• 1.0” x 30G: Gray
• 1.2” x 28G: Purple
• 1.4” x 27G: Blue
• 1.5” x 26G: Green
• 2.0” x 25G: Yellow
• 3.0” x 24G: Red

Yes, the Ambu Neuroline Inoject EMG Needle Electrodes are supplied sterile to ensure maximum patient safety and prevent cross-contamination.

Key details regarding their sterilization and packaging:

• Sterilization Method: They are sterilized using Ethylene Oxide (EO-sterilized).
• Packaging: Electrodes are supplied in boxes of 10, with each unit packaged in an individual pouch to maintain sterility until use.
• Shelf Life: The electrodes maintain their warranty and sterility for a period of 3 years (or until use/expiration).

Yes, the Ambu Neuroline Inoject EMG Needle Electrode and its pre-attached lead wire are completely latex-free. This feature helps ensure patient safety, making the electrodes suitable for use with individuals who have latex sensitivities or allergies.

The Ambu Neuroline Inoject electrodes are constructed from high-quality materials optimized for strength, flexibility, and patient comfort during precise injection and EMG procedures.

Key materials and components include:

• Needle: Made from durable stainless steel and coated with a low-friction polymer. This combination facilitates smooth insertion, reduces patient discomfort, and provides an ideal balance of strength and flexibility.
• Hub: The color-coded hub, which features a secure luer-lock fitting, is made from a robust ABS copolymer (Acrylonitrile, Butadiene, and Styrene).
• Lead Wire: The pre-attached, offset 76 cm (30”) lead wire uses flexible copper wire with PVC insulation, specifically designed to minimize interference during syringe operation.
• Connector: The 1.5 mm touch-proof safety connector (DIN 42 802) is made of reliable brass.

For enhanced patient safety, the entire electrode assembly and lead wire are latex-free and delivered EO-sterilized (Ethylene Oxide).

Yes, the Ambu Neuroline Inoject is specifically designed with an off-set, pre-attached lead wire to prevent physical interference with the syringe during procedures, ensuring maximum precision and visibility for the clinician.

This benefit is complemented by several other high-quality features:

• Secure Syringe Connection: The hub features a luer-lock fitting for a reliable and secure attachment to the syringe.
• Reduced Discomfort: The stainless steel needles have an ultra sharp tip and a low friction polymer coating, designed for smoother insertion and reduced patient pain.
• Connection Specs: The flexible lead wire measures 76 cm (30”) and terminates in a secure 1.5 mm touch-proof safety connector (DIN 42 802).
• Safety: Both the electrode and the lead wire are confirmed to be latex-free.

Yes, the Ambu Neuroline Inoject EMG Needle Electrode hubs are color-coded to allow for simple and rapid identification of the size configuration (length and gauge) during procedures. This feature streamlines selection.

The six distinct configurations and their associated color codes are:

The Ambu Neuroline Inoject electrodes are specialized tools designed for procedures that require simultaneous electromyography (EMG) guidance and precise substance injection.

Their primary applications include:

• Nerve Block Procedures: Specifically engineered for the safe and effective administration of injections, such as Botulinum Toxin, during nerve block procedures.
• Diagnostic EMG: Suitable for standard guided Electromyography (EMG) applications.

The unique design features ensure efficiency during injection:

• Secure Connection: They include a luer-lock fitting for a stable connection to the injection syringe.
• Minimized Interference: The off-set, pre-attached lead wire is strategically positioned to prevent obstruction or interference with the syringe during manipulation.

Yes, the Ambu Neuroline Inoject EMG Needle Electrode is specifically designed to optimize patient comfort and minimize discomfort during procedures.

This is achieved through several key features:

• Ultra-Sharp Tip: The needle features an ultra-sharp tip that facilitates easier and smoother penetration, which is crucial for reducing pain experienced by the patient.
• Low-Friction Polymer Coating: The stainless steel needle is coated with a low-friction polymer. This material minimizes resistance and drag, ensuring a very smooth, controlled insertion.
• Optimized Construction: The design provides an optimal balance of strength and flexibility, further complemented by a smooth electrical insulator, enhancing patient comfort throughout the entire procedure.

Each box contains 10 Ambu Neuroline Inoject EMG Needle Electrodes.

These electrodes are provided sterile (EO-sterilized), individually packaged in their own pouches, and include a pre-attached 76 cm (30”) lead wire with a 1.5 mm touch-proof safety connector.
