Ambu Neuroline 710 Surface Electrode

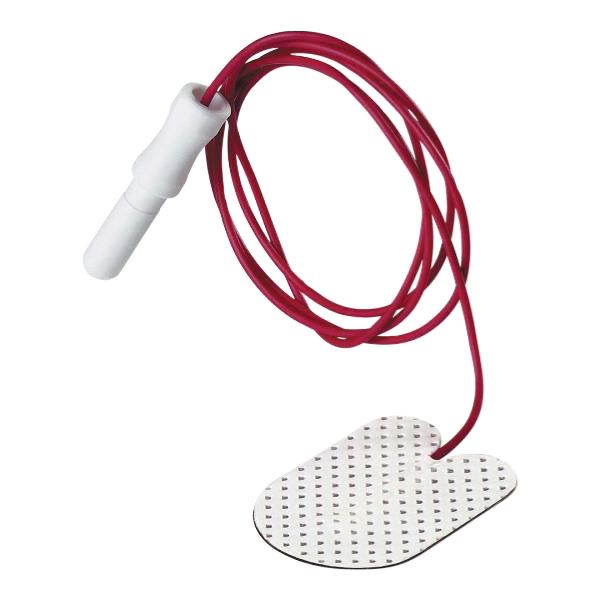

Ambu Neuroline 710 Surface Electrode - Red Wire
Ambu Neuroline 710 Surface Electrode - White Wire
Ambu Neuroline 710 Surface Electrode - Red Wire
Ambu Neuroline 710 Surface Electrode - White Wire
Key Features
  • SKU: ABU-71015-K-C-12
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: Until Use/Expiration
  • Weight: 1.32 lb
  • High quality Silver/Silver Chloride sensor provides optimal signal quality
  • Strong and effective solid gel adhesive guarantees a secure hold with the ability for repositioning
  • A special "duck foot" design ensures that the electrode stays in place even if the lead wire is pulled
  • Can be used for all neurological examinations where the electrodes are placed outside the hair zone

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Ambu
    Ships from MFI Medical
  • MPN: 71015-K/C/12
  • Phone: (800) 262-8462
$182.30

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Ambu Neuroline 710 Surface Electrode is a multiple purpose, disposable neurology accessory that can be used for all neurological examinations where the electrodes are placed outside the hair zone. It features a special "duck foot" design, which ensures that the electrode stays in place even if the lead wire is pulled. The lengths of the lead wire vary from 8" (20 cm) to 60" (150 cm) and are available with two different touch proof connector types (0.7 mm and 1.5 mm) to match different types and brands of equipment.

Warranty: Until Use or Expiration (18 Month Shelf Life for Unopened Pouches).

The Neuroline 710 Surface Electrode's solid gel surfaces are self-adhesive and are both easy to reposition and remarkably comfortable for patients. They feature a high quality silver/silver chloride sensor for optimum signal quality. The solid gel, combined with an effective adhesive, allows technicians to locate the best recording site without leaving messy gel deposits that must be wiped off. The adhesive is specially formulated so it will not irritate sensitive or damaged skin.

Features

Ambu Neuroline 710 Surface Electrode Features

  • Special design prevents the electrode from falling off if wire is pulled.
  • Designed for monitoring and recording biopotential on the skin.
  • Solid gel Surface Electrode features a high quality Silver/Silver Chloride sensor which provides optimal signal quality.
  • Strong and effective solid gel adhesive guarantees a secure hold with the ability for repositioning.
  • Well defined sensor area ensures easy reproduction of results.
  • Both the sensor and the lead wire are made of a very soft and flexible material which keeps irritation to a minimum and ensures that the patient is not bothered by sleeping on a hard electrode.
  • No risk of cross-contamination.
  • Need for costly maintenance has been eliminated.
  • Recommended Applications:
    • Intraoperative Monitoring (IOM).
    • Surface Electromyography (EMG).
    • Nerve Conduction Studies (NCS).
    • Electronystagmography (ENG).
    • Electro-Oculography (EOG).
    • Polysomnography (PSG).
    • Evoked Potentials (EP).
    • Reference Electrode.

Specifications

Ambu Neuroline 710 Surface Electrode Specifications

  • Electrode Size: 28 mm (L) x 20 mm (W) (1.10" x 0.79").
  • Skin Contact Size: 28 mm (L) x 20 mm (W) (1.10" x 0.79").
  • Adhesive Area: 490 mm2.
  • Height excluding Connector/Wire: 1 mm.
  • Gel System: Solid gel.
  • Sensor Area: 490 mm2.
  • Gel Area/Measuring Area: 490 mm2.
  • PVC-free Electrode: No.
  • Latex-free Electrode: Yes.
  • PVC-free Lead Wire: No.
  • Latex-free Lead Wire: Yes.
  • PVC-free Packaging: Yes.
  • Bio-compatible: Yes.
  • Sensor Material: Silver/Silver Chloride (Ag/AgCl).
  • Outer Carrier Material: Carbon filled polyvinyl chloride.
  • Outer Adhesive: Solid gel.
  • Upper Part: Non-woven Polyester Cloth.
  • Lead-wire Core: Flexible copper.
  • Lead-wire Insulation: Polyvinyl chloride (PVC).
  • Lead-wire Connector: Brass/polypropylene (PP).
  • Liner: Siliconized polyester film.

Configurations

Ambu Neuroline 710 Surface Electrode Configurations

Item Number Lead Wire Length Connector Wire Color Qty Per Pouch Pouches per Box Electrodes per Box
#71002-SC/12 8" (20 cm) 0.7 mm White 12 20 240
#71010-K/12 40" (100 cm) 1.5 mm White 12 10 120
#71015-K/12 60" (150 cm) 1.5 mm White 12 10 120
#71015-K/C/12 60" (150 cm) 1.5 mm Red/Green/Black 12 10 120

Frequently asked questions

Does the 'duck foot' design ensure secure placement?

Yes, the Ambu Neuroline 710 utilizes a specialized “duck foot” design specifically to ensure secure placement and enhance stability during neurological procedures.Its key function is to prevent accidental detachment:

  • Wire Security: The proprietary design secures the lead wire connection, preventing the electrode from coming loose even if the wire is accidentally pulled or tension is applied.
  • Reliable Adhesion: This design works in conjunction with the strong, non-irritating solid gel system, ensuring the electrode maintains a firm hold on the skin throughout the examination, which is crucial for high-quality signal acquisition.
Is this electrode suitable for many neurological studies?

Yes, the Ambu Neuroline 710 is a versatile, multi-purpose electrode designed for reliable biopotential recording across a wide range of neurological examinations. Its high versatility is due to its high-quality Silver/Silver Chloride (Ag/AgCl) sensor for optimal signal quality and its secure, repositionable solid gel adhesive.

Recommended applications include:

  • IOM (Intraoperative Monitoring)
  • EMG (Surface Electromyography)
  • NCS (Nerve Conduction Studies)
  • EP (Evoked Potentials)
  • PSG (Polysomnography)
  • ENG (Electronystagmography)
  • EOG (Electro-Oculography)
  • General use as a Reference Electrode

This disposable electrode is specifically intended for placement on skin areas outside the hair zone.

Are the Ambu Neuroline 710 electrodes biocompatible?

Yes, the Ambu Neuroline 710 electrodes are biocompatible, meaning they are designed to be safe for contact with the body and minimize the risk of adverse reactions.

Does the sensor ensure optimal signal quality?

Yes, the Ambu Neuroline 710 Surface Electrode features a high-quality silver/silver chloride (Ag/AgCl) sensor. This sensor material is specifically chosen to provide optimal signal quality, ensuring accurate and reliable readings for neurological examinations.

Is this Neuroline 710 electrode latex-free?

Yes, the Ambu Neuroline 710 Surface Electrode is confirmed to be completely latex-free, ensuring suitability for patients with sensitivities. This applies to both the:

  • Electrode
  • Lead wire

Additionally, the electrode is bio-compatible and features a solid gel adhesive formulated to be non-irritating, promoting patient comfort even on sensitive or compromised skin.

What is the shelf life of unopened pouches of the Ambu Neuroline 710 Surface Electrodes?

The Ambu Neuroline 710 Surface Electrodes have an 18-month shelf life for unopened pouches. The warranty lasts until use or expiration.

Are versatile lead wire lengths available?

Yes, the Ambu Neuroline 710 Surface Electrode is offered in three distinct lead wire lengths to accommodate various procedural and equipment needs, ensuring flexibility in different clinical settings:

  • 8 inches (20 cm)
  • 40 inches (100 cm)
  • 60 inches (150 cm)

These options allow users to select the optimal length for monitoring requirements, ranging from close-proximity setups to procedures requiring extended reach, such as Polysomnography (PSG) or Intraoperative Monitoring (IOM).

Is the solid gel adhesive easy to reposition?

Yes, the Ambu Neuroline 710 utilizes a solid gel adhesive system that simplifies neurological setup and ensures a secure connection.

This high-quality solid gel offers significant user and patient benefits:

  • Easy Repositioning: The self-adhesive nature allows for minor adjustments during initial placement without sacrificing adhesion or signal integrity.
  • Secure Fixation: When combined with the specialized “duck foot” design, the adhesive prevents the electrode from detaching, even if the lead wire is pulled.
  • No Mess: The solid gel eliminates the issue of messy residues, making cleanup after the examination quick and easy.
  • Patient Comfort: The formula is designed to be non-irritating to sensitive or damaged skin. The electrode is also latex-free.
What connector options are available?

The Ambu Neuroline 710 Surface Electrode provides broad compatibility with various neurological monitoring systems by offering two specific touch-proof connector options.

The available connector types are:

  • 0.7 mm (touch proof)
  • 1.5 mm (touch proof)

This versatility allows the electrode to integrate reliably with a wide array of electrophysiological equipment.

What are the specific electrode dimensions?

The Ambu Neuroline 710 features a compact and low-profile design, optimizing skin contact and stability for various neurological studies. Its small size minimizes patient interference while providing a secure hold via its strong adhesive.

Here are the precise dimensions:

  • Electrode Size (Length x Width): 28 mm x 20 mm (1.10” x 0.79”)
  • Skin Contact Size (Length x Width): 28 mm x 20 mm (1.10” x 0.79”)
  • Adhesive/Measuring Area: 490 mm²
  • Height (excluding connector/wire): Just 1 mm, contributing to its low-profile feel.
