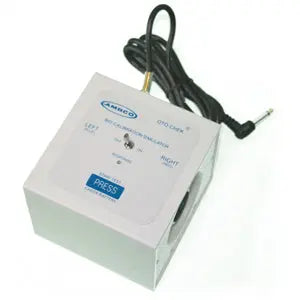

Ambco OTO-Chek Biological Test Simulator

Ambco OTO-Chek Biological Test Simulator
Key Features
  • SKU: AMB-OTO-CHEK
  • Condition: Factory New
  • Warranty: 5 Years
  • Weight: 4.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Amrex Ships from Manufacturer
  • MPN: OTO-CHEK
  • Phone: (800) 221-9069
$695.00 $647.01

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Ambco OTO-Chek Biological Test Simulator is used to measure the accuracy of your audiometer to within 5 db. This unit can be used daily, but does not serve as substitute for required yearly calibrations.

Warranty: 5 Years Defects in Materials or Workmanship.

Features

Ambco OTO-Chek Biological Test Simulator Features

  • Meets OSHA and other requirements for biological audiometer calibration checks.
  • OTO-CHEK can be used with any manual audiometer or automatics with normally open relay contacts.
  • Ready to use.
  • Response Output: Normally open relay contacts.
  • Simply place the earphones over right and left couplers of OTO-CHEK:
    • For MANUAL TESTING, turn OTO-CHEK on. Present the tones as in manual testing and record the frequency and HL when there is positive RESPONSE by OTO-CHEK, red light on. Retain these baseline results and use them to compare future tests. ESTABLISH NEW BASELINE every time the audiometer is re-calibrated.
    • For AUTOMATIC TESTING, place the earphones on OTO-CHEK, plug the response switch from OTO-CHEK to response jack on audiometer. Turn OTO-CHEK on. Turn automatic audiometer on and initiate automatic test. If printer is connected to the Audiometer, results will be printed. Retain these baseline results and use them to compare future tests. ESTABLISH NEW BASELINE every time the audiometer is re-calibrated.

Specifications

Ambco OTO-Chek Biological Test Simulator Specifications

  • Test Frequencies: Full Range 125 to 8000 Hz.
  • Stimulus Format: Continuous or Pulsed.
  • Power Source: AC adapter (output 14 V DC 220 mA) or 9 volt battery.
  • Weight: Less than 2 pounds.
  • Simulated Calibration Check Results: The Periodic Audiometer Calibration Check must be within +/- 5 dB of baseline (e.g. if baseline at 1000 Hz is 60 dB, any results of 55 or 65 dB are acceptable).

Literature

Ambco OTO-Chek Biological Test Simulator Literature

Ambco OTO-CHEK Brochure

Frequently asked questions

Does OTO-Chek support daily calibration checks?

Yes, the Ambco OTO-Chek is specifically designed to perform routine daily biological calibration checks on audiometers, ensuring compliance with regulatory standards like OSHA.

This diagnostic tool verifies that the audiometer’s measurements remain highly accurate:

  • Accuracy Tolerance: It confirms results are within +/- 5 dB of the established baseline reading.
  • Frequency Coverage: It covers a full range of test frequencies, from 125 Hz up to 8000 Hz.

It is important to note that while the OTO-Chek is essential for daily verification, it is not a substitute for the mandatory yearly professional electronic calibration.

Is the OTO-Chek fully compliant with OSHA?

Yes, the Ambco OTO-Chek Biological Test Simulator is designed specifically to meet OSHA and other regulatory requirements for routine biological audiometer calibration checks.

Key details regarding compliance:

  • It satisfies the need for daily biological checks, ensuring measurements are within a 5 dB tolerance.
  • It does not substitute for the mandatory yearly electronic calibrations.
Which audiometers are compatible with OTO-Chek?

The Ambco OTO-Chek Biological Test Simulator offers broad compatibility, working with two main types of audiometers:

  • Any manual audiometer
  • Automatic audiometers equipped with normally open relay contacts
Is the OTO-Chek easy to use daily?

Yes, the Ambco OTO-Chek is specifically designed for straightforward, daily biological checks of your audiometer, facilitating compliance with regulations like OSHA. The unit is engineered for simplicity and quick setup.

The OTO-Chek supports both manual and automatic testing methods:

  • Initial Setup: Begin by placing the audiometer earphones over the designated couplers on the OTO-Chek unit.
  • Manual Testing: Turn the unit on and present test tones. Record the hearing level at which the red RESPONSE light illuminates, indicating a positive simulated response.
  • Automatic Testing: For automated checks, plug the OTO-Chek’s response switch/cable directly into the audiometer’s response jack before initiating the test sequence.
What frequencies and stimulus formats are supported?

The Ambco OTO-Chek supports the full spectrum of audiology testing requirements, ensuring comprehensive biological checks. It features:

  • Test Frequencies: A full range from 125 Hz to 8000 Hz.
  • Stimulus Format: Capability to use either Continuous or Pulsed stimuli.
What are the power options for the OTO-Chek?

The Ambco OTO-Chek Biological Test Simulator provides dual power options for maximum versatility and portability:

  • AC Adapter: It can be operated using the included AC adapter, which provides an output of 14 V DC 220 mA.
  • Internal Battery: For portable testing, the unit can run on a standard 9-volt battery.
Is the OTO-Chek portable?

The OTO-Chek is designed for excellent portability and flexibility, making it ideal for routine daily checks in various settings.

Key features supporting its portability include:

  • Lightweight Design: The unit weighs less than 2 pounds, ensuring easy transport and handling.
  • Dual Power Options: It can be powered using the included AC adapter or a standard 9-volt battery, providing flexibility when AC outlets are not readily available.
What is the acceptable range for test results?

The Ambco OTO-Chek is designed to ensure that audiometer measurements are accurate. Test results are deemed acceptable if they fall within +/- 5 dB of the established baseline.
