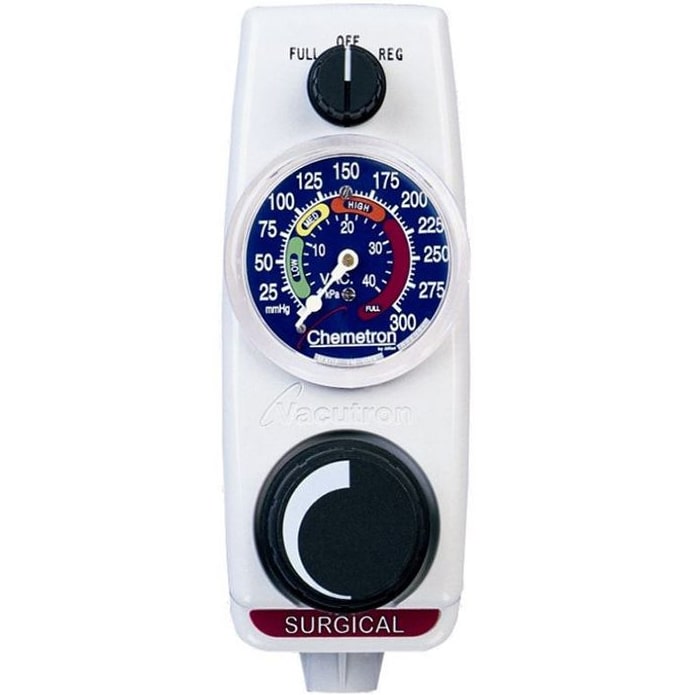

Allied Healthcare Vacutron Surgical Suction Regulator

Allied Healthcare Vacutron Surgical Suction Regulator
Key Features
  • SKU: AHC-22-12-0100
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 10 Years
  • Weight: 1.08 lb
  • United States-compatible models ONLY
  • Available in regulated vacuum or full line mode
  • Maximum vacuum level at 320 mm

  • Learn more:

Contact The Manufacturer
  • MFR: Allied Healthcare
    Ships from MFI Medical
  • MPN: 22-12-0100
  • Phone: (800) 444-3954
$277.78 $222.21

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Allied Healthcare Vacutron Surgical Suction Regulator is a reliable suction device specifically designed for surgical suites and procedures. Available with two operational modes: regulated vacuum and full line mode.

Warranty: 10 Years.

Caregivers have access to a vacuum level between 0 and 300 mm Hg, and also has a full line mode that delivers unregulated vacuum pressure equal to vacuum line pressure. For safety, there's an internal safety relief valve that monitors the maximum vacuum level and keeps it restricted to 320 mm Hg. This device is available in United States models only.

Features

Allied Healthcare Vacutron Surgical Suction Regulator Features

  • Safety relief valve restricts maximum vacuum level to 320 mm Hg.
  • Regulation ensures stable suction.
  • Full line mode issues unregulated suction and vacuum line pressure.
  • Available in United States-compatible models only.

Specifications

Allied Healthcare Vacutron Surgical Suction Regulator Specifications

  • Dimensions: 6.8" (H) x 2.65" (W) x 4.07" (D) (17.3 cm x 6.7 cm x 10.4 cm).
  • Weight: 1.3 lb (0.59 kg).
  • Operating Modes: OFF, Regulated, and Full Line.
  • Regulated Vacuum Range: 0 - 300 mm Hg.
  • Safety Relief Valves: 1 @ 320 mm Hg.
  • Vacuum Gauge Scale:
    • 0 - 300 mm Hg in 5 mm Hg increments.
    • 0 - 40 kPa in 2 kPa increments

Configurations

Allied Healthcare Vacutron Surgical Suction Regulator Configurations

Please note that these configurations are United States-compatible only. No international configurations available.

Configuration Inlet to Wall Fitting Outlet to Patient Fitting
#22-12-0100 1/8" NPT Female DISS Male
#22-12-0102 Serrated Hose Stem DISS Male
#22-12-1100 1-1/4" x 1/8" NPT Extension DISS Male
#22-12-1104 Oxequip Med*Star DISS Male
#22-12-1105 Puritan Bennett DISS Male
#22-12-1106 (recommended) Ohmeda Diamond DISS Male
#22-12-1107 DISS Female DISS Male
#22-13-1108 (recommended) Chemetron Quick-Connect DISS Male
#22-12-1111 DISS Hand Tight DISS Male
#22-12-1113 (recommended) Chemetron Quick-Connect / round striker (for pre-1966 Chemetron outlets) DISS Male
#22-12-0200 1/8" NPT Female Metal Barbed Stem
#22-12-1200 Extension 1-1/4" x 1/8" NPT Metal Barbed Stem
#22-12-1204 Oxequip Med*Star Metal Barbed Stem
#22-12-1205 Puritan Bennett Metal Barbed Stem
#22-12-1206 (recommended) Ohmeda Diamond Metal Barbed Stem
#22-12-1207 DISS Female Metal Barbed Stem
#22-12-1208 (recommended) Chemetron Quick-Connect Metal Barbed Stem
#22-12-1211 DISS Hand Tight Metal Barbed Stem
#22-12-1213 (recommended) Chemetron Quick-Connect / round striker (for pre-1966 Chemetron outlets) Metal Barbed Stem
#22-12-0402 Serrated Hose Stem 45° DISS Male
#22-12-1406 Ohmeda Diamond 45° DISS Male
#22-12-1408 Chemetron Quick-Connect 45° DISS Male
#22-13-1506 Ohmeda Diamond Bacteria Filter
#22-13-1508 Chemetron Quick-Connect Bacteria Filter

Accessories

Allied Healthcare Vacutron Surgical Suction Regulator Accessories

The Allied Healthcare Vacutron Surgical Suction Regulator is typically purchased with:

  • Disposable Collection Canisters.
  • Collection Canister Carrier.
  • Canister Holder.
  • Specimen Bag.
  • Critical Measurement Insert.

Literature

Allied Healthcare Vacutron Surgical Suction Regulator Literature

Allied Healthcare Vacutron Suction Regulators and Accessories Guide

Frequently asked questions

Does this regulator offer flexible operational modes?

Yes, the Allied Healthcare Vacutron Surgical Suction Regulator provides excellent operational flexibility through three distinct modes managed by its selector knob:

  • Regulated Mode: Allows caregivers to precisely set and maintain stable suction levels, adjustable across a critical range of 0 to 300 mm Hg.
  • Full Line Mode: Delivers the maximum, unregulated vacuum pressure directly from the facility’s source line when maximum aspiration is required.
  • OFF Mode: Completely shuts off the vacuum flow.

This robust functionality ensures stability for precise procedures while retaining the option for immediate, maximum suction capacity.

What is the regulated vacuum range?

The Allied Healthcare Vacutron Surgical Suction Regulator provides a regulated vacuum range from 0 to 300 mm Hg.

This device offers flexibility and safety in surgical environments:

  • Safety Feature: It includes an integrated internal safety relief valve that strictly limits the maximum vacuum level to 320 mm Hg.
  • Dual Modes: Caregivers can choose between the precise Regulated mode and a Full Line mode, which delivers unregulated suction equal to the line pressure.
  • Monitoring: The vacuum gauge features a comprehensive dual scale, calibrated from 0 to 300 mm Hg (in 5 mm Hg increments) and 0 to 40 kPa (in 2 kPa increments).
What are the dimensions of this compact surgical regulator?

The Allied Healthcare Vacutron Surgical Suction Regulator features a space-saving, clinical-grade design optimized for operating room environments. Its dimensions are as follows:

  • Height: 6.8 inches (17.3 cm)
  • Width: 2.65 inches (6.7 cm)
  • Depth: 4.07 inches (10.4 cm)
How much does the Vacutron surgical suction regulator weigh?

The Allied Healthcare Vacutron Surgical Suction Regulator is designed as a compact and professional-grade clinical tool, weighing 1.08 pounds. Its efficient design is ideal for surgical suites, measuring 6.8 inches in height, 2.65 inches in width, and 4.07 inches in depth.

Is this regulator compatible with US medical systems?

Yes, the Allied Healthcare Vacutron Surgical Suction Regulator is engineered exclusively for compatibility with United States medical gas infrastructure.

To ensure it integrates seamlessly into various clinical environments, the device is available in 24 distinct inlet and outlet fitting configurations, including:

  • DISS Male
  • Chemetron Quick-Connect
  • Ohmeda Diamond

This variety of connection options allows the regulator to adapt to the specific wall-mounted vacuum systems installed in your facility.

What are the precise measurement increments on the gauge?

The Vacutron Surgical Suction Regulator uses a comprehensive dual-scale vacuum gauge to enable precise monitoring and control in surgical settings. The specific increments for each measurement scale are:

  • Standard Scale (mm Hg): The 0 to 300 mm Hg range is displayed in 5 mm Hg increments.
  • Metric Scale (kPa): The 0 to 40 kPa range is displayed in 2 kPa increments.
Where is this surgical suction regulator typically used?

The Allied Healthcare Vacutron Surgical Suction Regulator is primarily designed for use in surgical suites and medical facilities.

Does this regulator offer versatile connection options?

Yes, this surgical suction regulator is highly adaptable to your facility’s needs, offering 25 distinct inlet and outlet fitting combinations. This extensive variety ensures seamless integration with a wide range of standard United States medical gas wall connections and clinical interfaces.

Key connectivity highlights include:

  • Wide Selection: Available in 25 unique inlet/outlet configurations to match specific hospital or surgical suite requirements.
  • Infrastructure Compatibility: Designed exclusively for use within United States medical gas systems.
  • Standardized Fittings: Supports a variety of industry-standard connections to ensure secure and reliable performance in critical care environments.
Does the regulator include an internal safety relief valve?

Yes, the Vacutron Surgical Suction Regulator includes an essential safety feature for patient protection: an internal safety relief valve.

This mechanism is designed to prevent over-suctioning by restricting the maximum vacuum level the device can deliver. It is factory set to rigidly limit the output to 320 mm Hg.

Is vacuum control precise and reliable?

Yes, the Allied Healthcare Vacutron is engineered for precise and stable vacuum regulation crucial for demanding surgical settings. It provides control through three operational modes:

  • Regulated Mode: Allows caregivers to precisely set and maintain suction levels within the range of 0 to 300 mm Hg.
  • Full Line Mode: Delivers the maximum, unregulated vacuum pressure available from the facility line.
  • OFF Mode: Shuts off the vacuum flow.

For enhanced patient safety, the unit includes an internal safety relief valve that actively restricts the maximum delivered vacuum pressure to 320 mm Hg. Readings are clearly displayed on a dual-scale vacuum gauge, calibrated in both 0–300 mm Hg and 0–40 kPa.
