Allied Healthcare Timeter Sure Grip Medical Air Flowmeter

Allied Healthcare Timeter Sure Grip Medical Air Flowmeter
Key Features
  • SKU: AHC-15001-13
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 0.2 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Allied Healthcare
    Ships from MFI Medical
  • MPN: 15001-13
  • Phone: (800) 444-3954
$37.95 $35.26

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

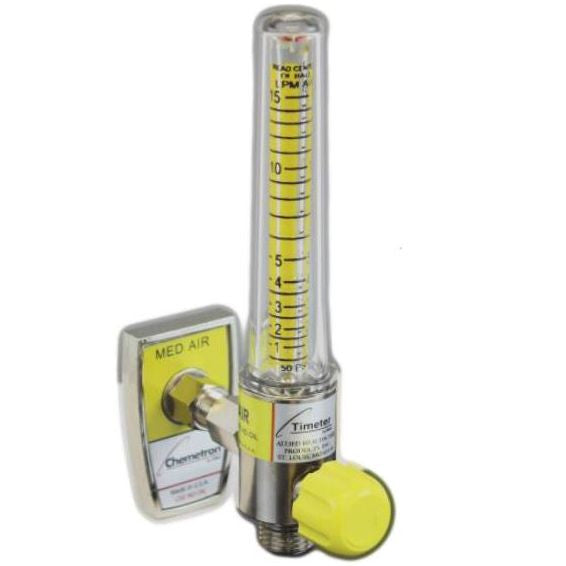

The Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is a calibrated flowmeter for medical air only. The device includes a measuring tube with defined markings, a large grip knob, and a choice of inlet fitting (see Configurations). All bottom outlets are O2 DISS Male.

Note: Wall adapters and connectors are not included and must be purchased separately.

Warranty: 5 Years.

The Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is made from a durable, long-lasting nickel-plated brass. The measuring tube is encased in sturdy polycarbonate, and is clearly labeled with measurements ranging from 0 to 15 lpm. The flowmeter is equipped with a large knob for easy adjustment of the flow rate, and users can choose between 1 of 10 inlet fittings available for purchase (see "Configurations" tab).

Features

Allied Healthcare Timeter Sure Grip Medical Air Flowmeter Features

  • Measures 0 to 15 lpm.
  • Made from nickel-plated brass that's durable and long-lasting material.
  • Power take-off included on some models for efficiency.

Specifications

Allied Healthcare Timeter Sure Grip Medical Air Flowmeter Specifications

  • Range: 0 - 15 lpm.
  • Inlet Pressure: 50 psi.

Configurations

Allied Healthcare Timeter Sure Grip Medical Air Flowmeter Configurations

These options include the standard brass or aluminum models, as well as models with or without Power Take-Off. Users may use the chart below to determine which model and fitting is needed.

Note: Wall adapters and connectors are not included and must be purchased separately. Some products on this table may not be available by the manufacturer, indicated by a dash mark (-).

Fitting 15 lpm 15 lpm with Power Take-Off 15 lpm - Aluminum 15 lpm with Power Take-Off - Aluminum
1/8" FNPT 15001-13 15001-13P 15001-13-A 15001-13P-A
Chemetron Male 15002-13 15002-13P 15002-13-A 15001-13P-A
Oxequip Male 15003-13 15003-13P 15003-13-A -
Ohmeda Male 15004-13 15004-13P 15004-13-A 15001-13P-A
Med*Star Male 15005-13 15005-13P 15005-13-A 15001-13P-A
Puritan Bennet 15006-13 15006-13P 15006-13-A 15001-13P-A
Schrader Male 15007-13 - - -
DISS Female Hand Tight 15008-13 15008-13P 15008-13-A 15001-13P-A
DISS Female Hex 15009-13 15009-13P - 15001-13P-A
DISS Male 15010-13 15010-13P 15010-13-A -

Accessories

Allied Healthcare Timeter Sure Grip Medical Air Flowmeter Accessories

The Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is commonly purchased with the following accessories (items sold separately):

  • #TA30: Timeter Oxygen Timer.
  • #65401: Nut and Stem Adapter.
  • #65100: Supply Line Adapter.
  • Chemetron Reusable Humidifier.
  • Chemetron Disposable Bubble Humidifier.

Literature

Allied Healthcare Timeter Sure Grip Medical Air Flowmeter Literature

Allied Healthcare Flowmeters and Accessories Guide

Frequently asked questions

What is the measured flow rate range?

The Allied Healthcare Timeter Sure Grip Medical Air Flowmeter offers a wide and accurate measurement capacity, with a flow range from 0 to 15 liters per minute (lpm).

Key details regarding its operation:

  • Intended Use: The device is calibrated exclusively for measuring and regulating Medical Air flow.
  • Required Pressure: It is designed to operate optimally at a standard inlet pressure of 50 psi.
Does the medical air flowmeter use durable materials?

Yes, the Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is constructed from nickel-plated brass and sturdy polycarbonate. This combination ensures its durability and long-lasting performance in medical settings.

What is the maximum flow rate capacity?

The maximum calibrated flow rate for the Allied Healthcare Timeter Sure Grip Flowmeter is 15 liters per minute (lpm). The device accurately measures the full flow range from 0 to 15 lpm.

It is essential to note two key operational specifications:

  • This flowmeter is calibrated exclusively for measuring medical air.
  • Accurate operation requires a standard inlet pressure of 50 psi.
What is the required inlet pressure?

This medical air flowmeter is specifically designed to operate at a standard inlet pressure of 50 psi to ensure accurate flow measurement and control.

Is the flow rate easy to adjust on this flowmeter?

Yes, the large grip knob allows for easy and precise adjustments to the flow rate, even with gloved hands.

What is the standard bottom outlet fitting?

The standard bottom outlet connection for the Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is fixed and consistent across all models: O2 DISS Male.

It is important to note that while the bottom outlet is fixed, the device’s inlet fitting (the connection to your gas supply system) is configurable and must be selected separately from the ten available types.

Is this medical air flowmeter suitable for all medical facilities?

Yes, the Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is designed for use in various medical facilities where precise measurement of regulated medical air flow is required. It’s built with durable nickel-plated brass and polycarbonate, ensuring reliability in demanding environments.

How many inlet fitting options are available?

Yes, this medical air flowmeter is designed for high versatility and compatibility with various medical air supply systems. You have numerous options to choose from:

  • Inlet Fittings: You can select from ten different inlet fitting types (such as Chemetron Male, Oxequip Male, DISS Female, etc.) to ensure compatibility with your specific gas outlet system. Please note that wall adapters and connectors are not included and must be purchased separately.
  • Bottom Outlet: The standard bottom outlet connection for all models is O2 DISS Male.
  • Power Take-Off: Select configurations also include a Power Take-Off (PTO) feature for enhanced operational efficiency.
Is this flowmeter durably constructed?

Yes, the Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is designed for durability. It is constructed from long-lasting nickel-plated brass and features a sturdy polycarbonate measuring tube, ensuring it can withstand rigorous use.

Is this flowmeter calibrated for accuracy?

Yes, the Allied Healthcare Timeter Sure Grip Medical Air Flowmeter is specifically calibrated to accurately measure medical air flow within its 0 to 15 lpm range.
