Description

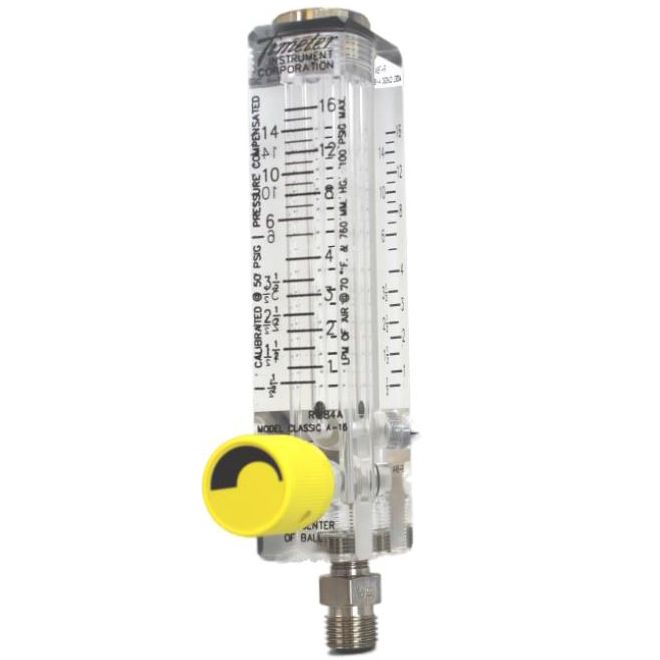

The Allied Healthcare Timeter Classic Medical Air Flowmeter offers accurate readings of medical air flow through a cylinder and the valve.

Note: Wall adapters and connectors are not included, and must be purchased separately.

Warranty: 5 Years.

The acrylic-block flowmeter tubes are wide and easy-to-read, and are labeled up to 16 or 75 lpm. The tubes contain non-ferrous construction and a glass float to eliminate static electricity and make it MRI-compatible. The base and the back fittings of the flowmeters are made of brass. These acrylic-block flowmeters are virtually indestructible, long-lasting and easy to maintain for multiple uses.

Configurations

Allied Healthcare Timeter Classic Medical Air Flowmeter Configurations

These configurations include models for 16 and 75 lpm, as the option for an Auxiliary Valve. Users may use the chart below to determine which model and fitting is needed.

Note: Wall adapters and connectors are not included, and must be purchased separately. Some models on this table may not be available by the manufacturer, indicated by a dash mark (-). All bottom outlets are O2 DISS Male. Acrylic-Block Flowmeters are calibrated for 50 psi sources.

Fitting 0 - 16 lpm 0 - 16 lpm with Auxiliary Valve 0 - 75 lpm
1/8" FNPT TB20 - -
Chemetron Male TZ16-B20 - TZ16-B40
>Oxequip Male T12440-B20 - -
Ohmeda Male TZ19-B20 TZ19-Z25-B20 TZ19-B40
Puritan Bennett - TZ17-Z25-B20 -
DISS Female Hand Tight - TZ20-Z25-B20 TZ20-B40
DISS Male - - TZ15-B40

Accessories

Allied Healthcare Timeter Classic Medical Air Flowmeter Accessories

The Allied Healthcare Timeter Classic Medical Air Flowmeter is commonly purchased with the following accessories (items sold separately):

  • #TA30: Timeter Oxygen Timer.
  • #65401: Nut and Stem Adapter.
  • #65100: Supply Line Adapter.
  • Chemetron Reusable Humidifier.
  • Chemetron Disposable Bubble Humidifier.

Literature

Allied Healthcare Timeter Classic Medical Air Flowmeter Literature

Allied Healthcare Flowmeters and Accessories Guide
